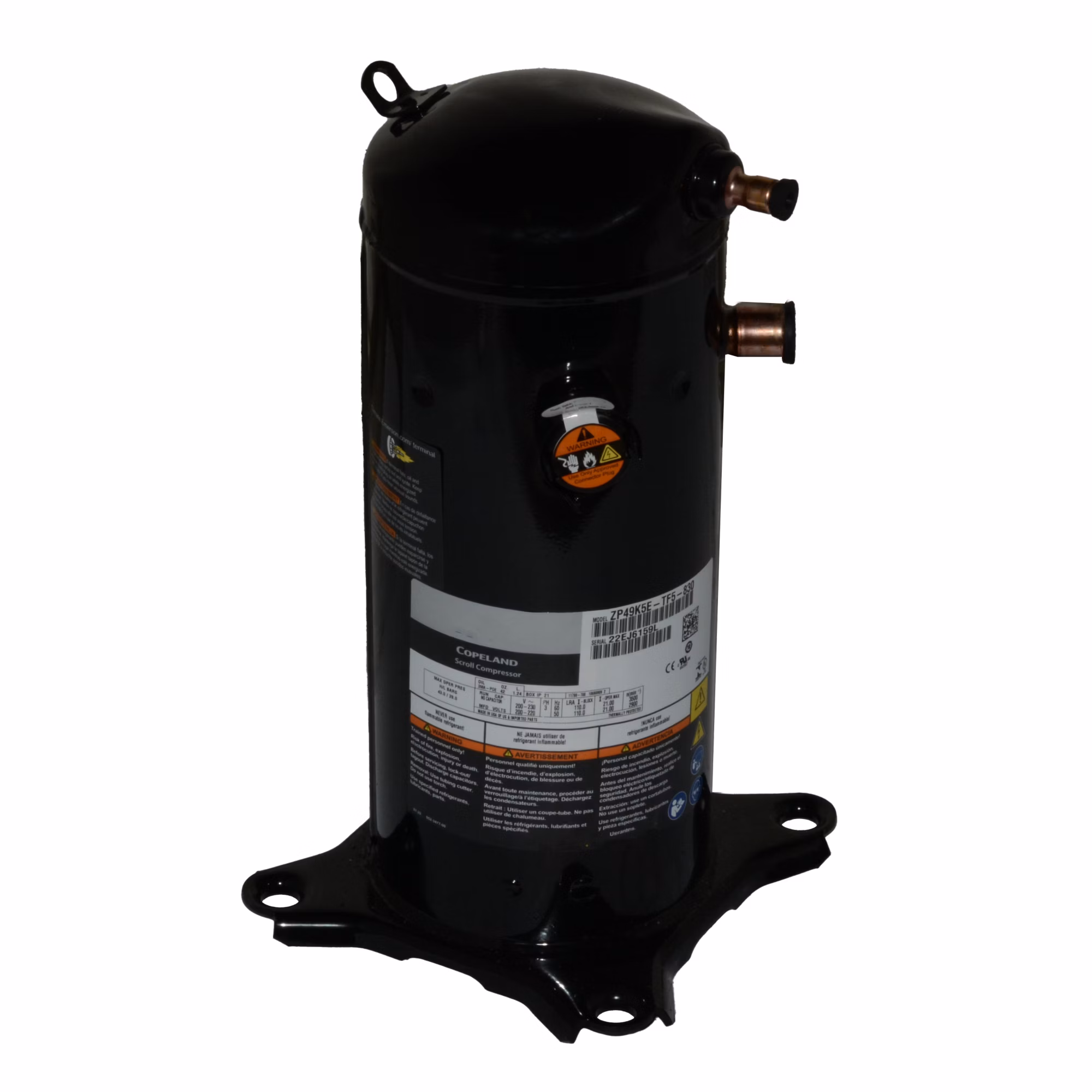

Factory Authorized Parts – Carrier ZP49K5E-TF5-830 Compressor

$2,176.45

E:Mail: sales@walkair.us to confirm availability or for volume discounts

SKU: ZP49K5E-TF5-830 Category: Tag:

Description

Factory Authorized Parts – ZP49K5E-TF5-830 Compressor – E:Mail: sales@walkair.us to confirm availability or for volume discounts

Benefits of Copeland scroll compressors:
Only three moving parts–fewer moving parts means less maintenance needed. By contrast, other reciprocating compressors can have up to nine moving parts in each cylinder.
No complex internal valves–the simplified design resists liquid refrigerant slugging, debris and failure,
Higher efficiency–Copeland was one of the first companies to create partial load operation across its compressor line. Their scroll compressors tend to be more efficient across its entire operating range.
Lower vibration levels–this means not just less noise, but also less wear and tear on components.

Please note, this is a special order, non-stock item and will be shipped direct from the vendor. Non-stock and Special Order items cannot be cancelled once processed, and are non-returnable. Customer is responsible for freight charges. These items may have an extended lead time. Use chat if you need to confirm lead time before ordering. By purchasing this product, you agree to t

Attributes
Amps 17.7
Approvals UL Recognized
BTU Output 49,700
Brand Copeland
Compressor Housing Hermetic
Compressor Type Scroll
Condensing Temperature 130°F (54.44°C)
Country of Origin USA
Cubic Measurement 0.896
Cycle/Hertz 50/60 Hz
Dimensional Weight 29
Discharge Connection Size OD 1/2″
Discharge Connection Type Stub
Displacement 2.83 (in^3/Rev)
EAN 0822529385471
Evaporating Temperature 45°F (7.22°C), 50F
GTIN 00822529385471
Liquid Temperature 115°F (46.11°C)
Locked Rotor Amps (LRA) 110
Mass Flow (lbs/hr) 731 lbs./hr.; 816 lbs./hr.
Mounting Dimensions 7.5″ x 7.5″ x 17.17″
Oil Charge Initial (oz.) 42
Oil Type Polyolester (POE)
Phase Three
Prop 65 NO
Protection Yes
Rated Load Amps (RLA) 15.9, 17.7
Refrigerant R-410A
Return Gas Temperature 65°F, 65°F (18.33°C)
Sound Level (dBA) 71-76
Suction Line Fitting Type Stub
Suction Line Size (OD) 7/8″
UOM EA
UPC 822529385471
Voltage 200/220, 200/230 VAC

Additional information

Weight 72.8 lbs
Dimensions 9.56 × 9.56 × 16.94 in
