Description

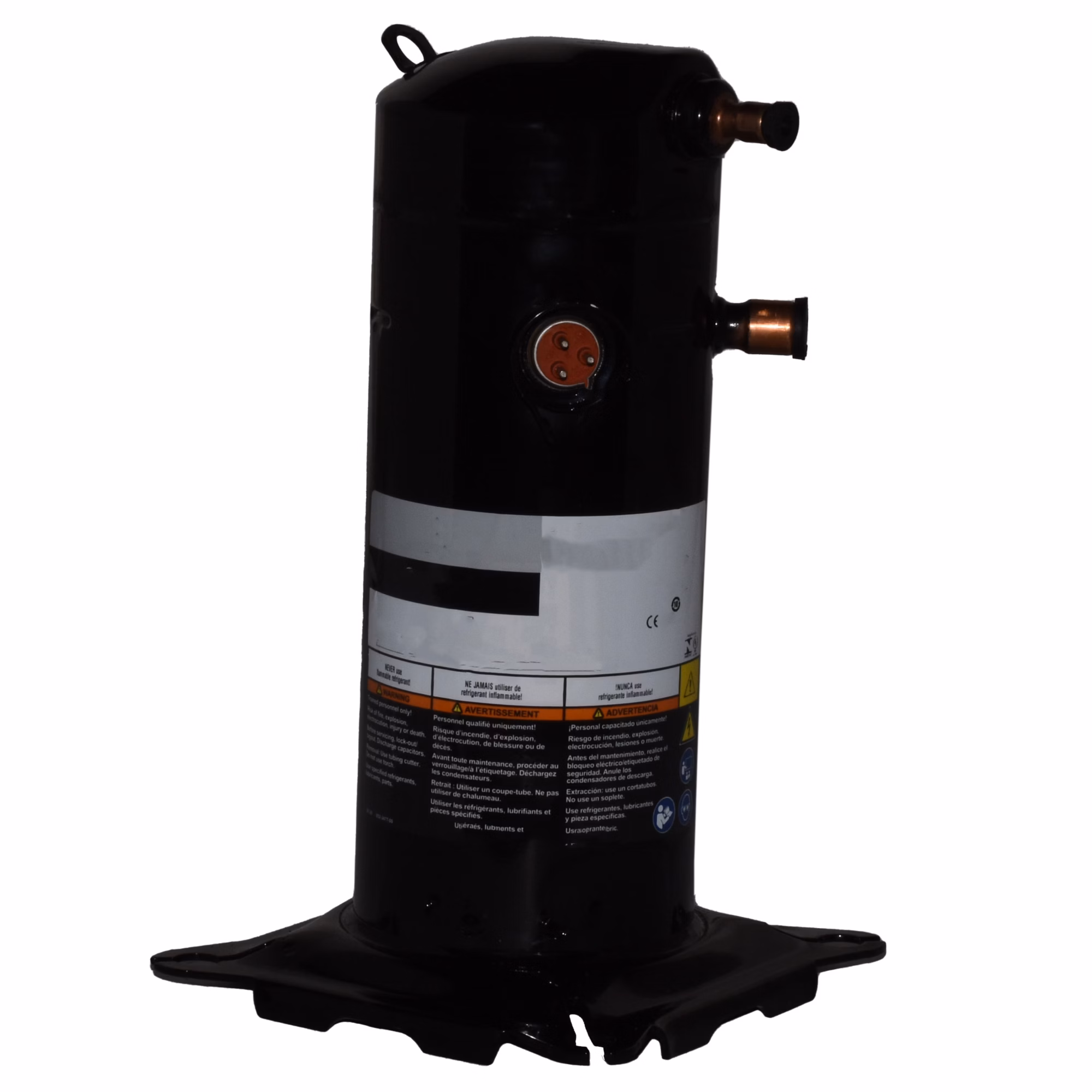

Factory Authorized Parts – ZP14K6E-PFV-830 – Compressor – E:Mail: sales@walkair.us to confirm availability or for volume discounts
Benefits of Copeland scroll compressors:
Only three moving parts–fewer moving parts means less maintenance needed. By contrast, other reciprocating compressors can have up to nine moving parts in each cylinder.
No complex internal valves–the simplified design resists liquid refrigerant slugging, debris and failure,
Higher efficiency–Copeland was one of the first companies to create partial load operation across its compressor line. Their scroll compressors tend to be more efficient across its entire operating range.
Lower vibration levels–this means not just less noise, but also less wear and tear on components.
| Attributes | |
|---|---|
| Amps | 4.3-6.7 |
| Approvals | UL Recognized |
| BTU Output | 14,650 |
| Brand | Copeland |
| Compressor Housing | Hermetic |
| Compressor Type | Scroll |
| Condensing Temperature | 130°F (54.44°C) |
| Country of Origin | USA |
| Cubic Measurement | 2.2569 |
| Cycle/Hertz | 50/60 Hz |
| Dimensional Weight | 29 |
| Discharge Connection Size OD | 1/2″ |
| Discharge Connection Type | Stub |
| Evaporating Temperature | 45°F (7.22°C), 45°F |
| Liquid Temperature | 115°F (46.11°C) |
| Locked Rotor Amps (LRA) | 47.5 |
| Mass Flow (lbs/hr) | 215 lbs./hr.; 248 lbs./hr. |
| Mounting Dimensions | 7.5″ x 7.5″ x 15.96″ |
| OPT Code | ZP14K6EPFV830 |
| Oil Charge Initial (oz.) | 21 |
| Oil Type | Polyolester (POE) |
| Phase | Single |
| Prop 65 | NO |
| Protection | Yes |
| Rated Load Amps (RLA) | 9, 10 |
| Refrigerant | R-410A |
| Return Gas Temperature | 65°F, 65°F (18.33°C) |
| Suction Line Fitting Type | Stub |
| Suction Line Size (OD) | 3/4″ |
| UOM | EA |
| UPC | See Optical |
| Voltage | 208-230 VAC |
