Description
Factory Authorized Parts – HLM075T7LP6A Scroll Compressor – E:Mail: sales@walkair.us to confirm availability or for volume discounts

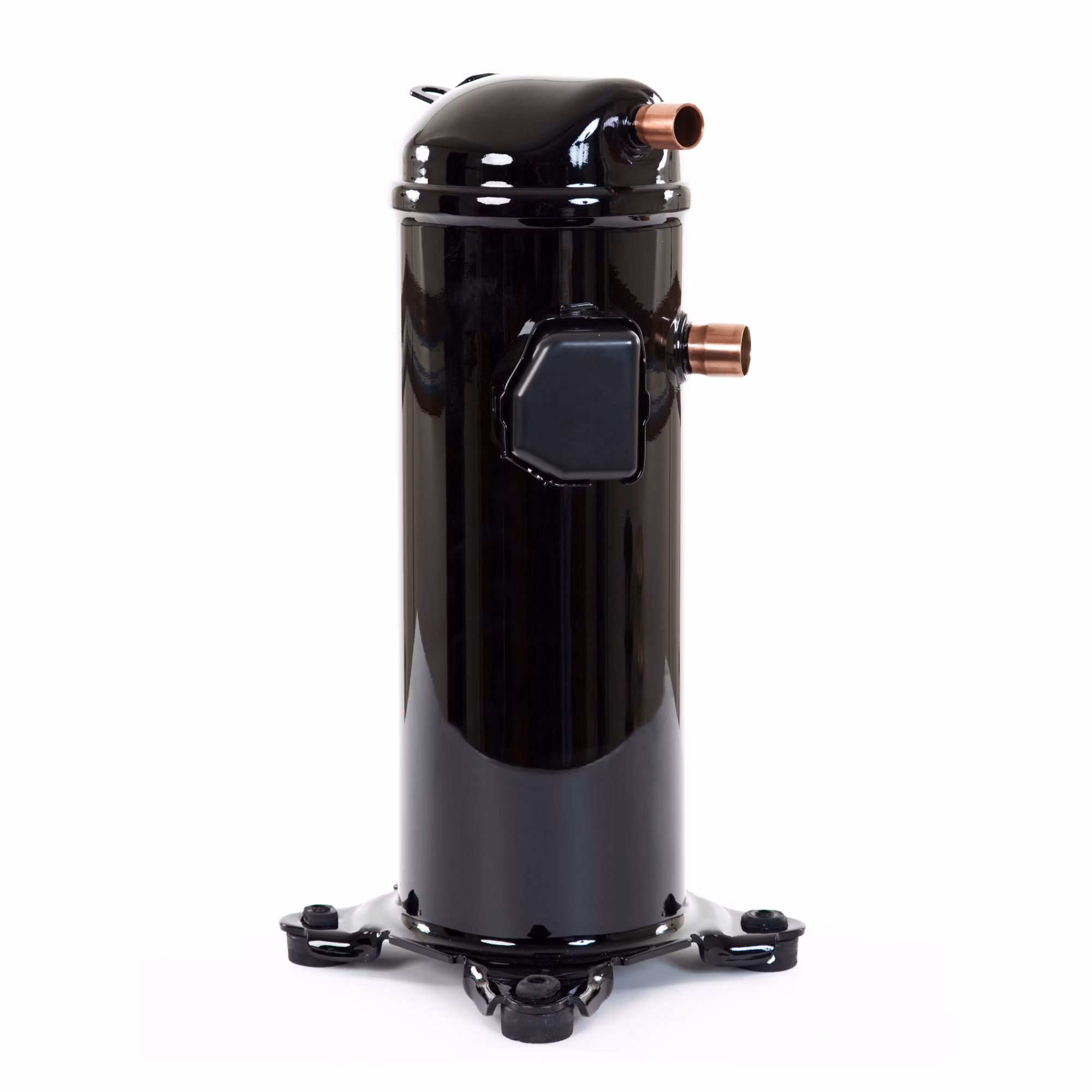

Factory Authorized Parts? – HLM075T7LP6A Scroll Compressor
| Attributes | |
|---|---|
| Amps | 9.01 |
| Approvals | UL Listed |
| BTU Output | 76,406 |
| Brand | Danfoss |
| Compressor Housing | Hermetic |
| Compressor Type | Scroll |
| Condensing Temperature | 130?F (54.44?C) |
| Country of Origin | MEX |
| Cubic Measurement | 1.27 |
| Cycle/Hertz | 60 Hz |
| Dimensional Weight | 17 |
| Discharge Connection Size OD | 1/2″ |
| Discharge Connection Type | Stub |
| Displacement | 631-762 (cu.ft./Hr) |
| Evaporating Temperature | 45?F (7.22?C) |
| GTIN | 00822529782164 |
| Locked Rotor Amps (LRA) | 72 |
| Mass Flow (lbs/hr) | 1122 lbs/hr |
| Mounting Dimensions | 7.509″ x 7.509″ |
| OPT Code | HLM075T7LP6A |
| Oil Charge Initial (oz.) | 53 |
| Oil Type | Alkylbenzene (AB) |
| Phase | Three |
| Prop 65 | NO |
| Protection | Yes |
| Rated Load Amps (RLA) | 9 |
| Refrigerant | R-22 |
| Sound Level (dBA) | 74 |
| Suction Line Fitting Type | Sweat or Braze |
| Suction Line Size (OD) | 7/8″ |
| UOM | EA |
| UPC | See Optical |
| Voltage | 575 VAC |
