Factory Authorized Parts – HD58FR232 Belt Drive Blower Motor 3.7 HP – E:Mail: sales@walkair.us to confirm availability or for volume discounts

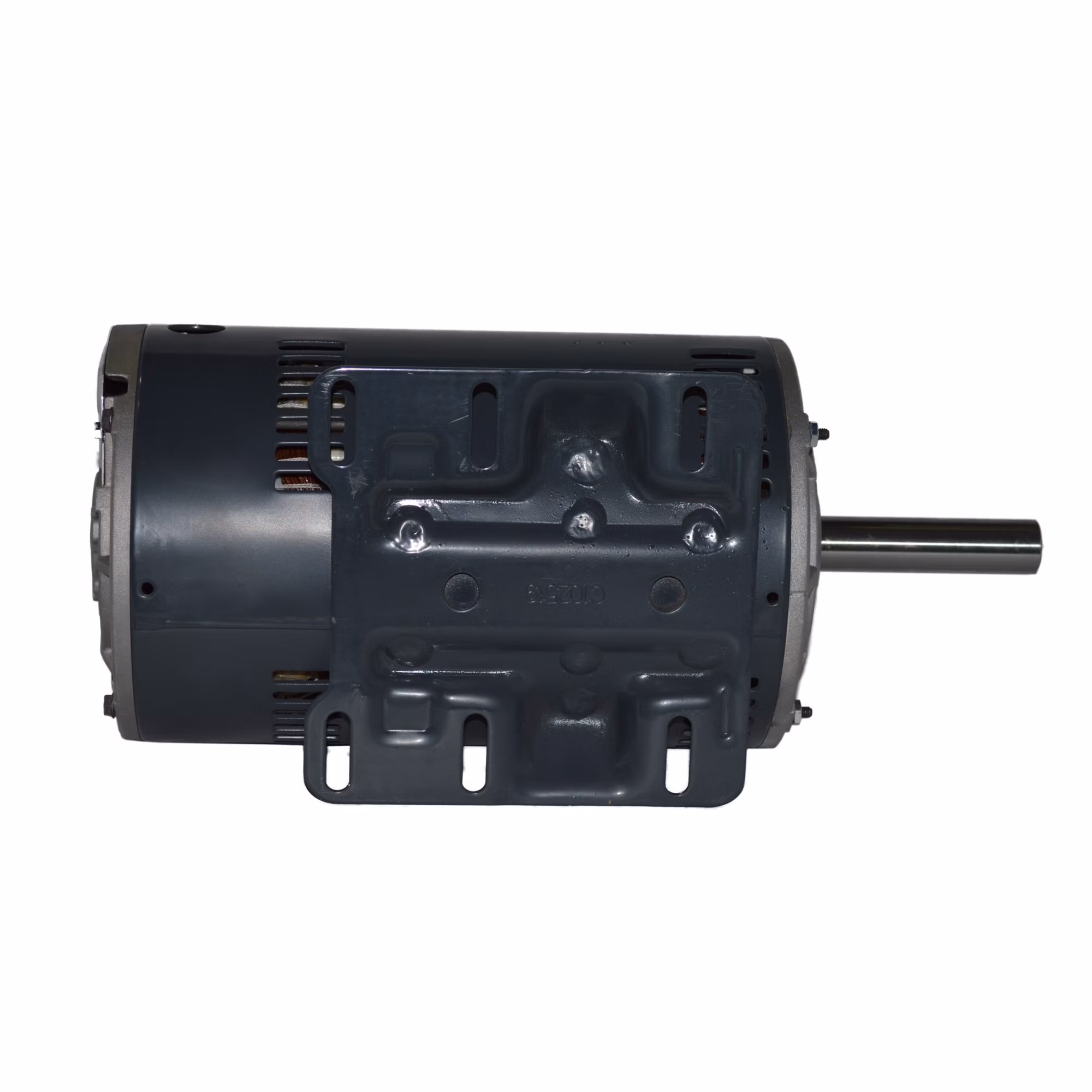

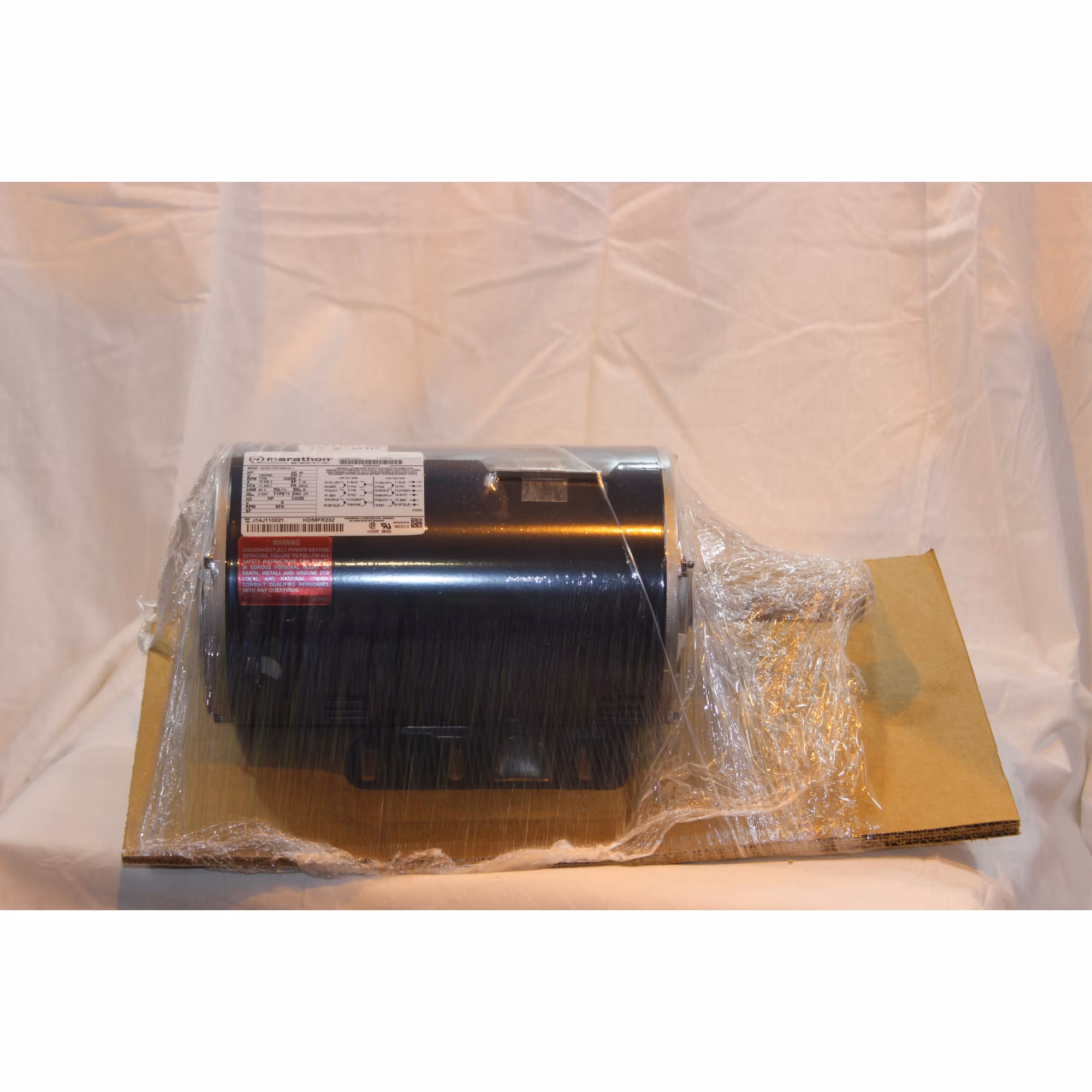

Factory Authorized Parts™ – HD58FR232 Blower Motor 3.7 HP
Factory Authorized Parts are designed to meet exact Carrier® Corporation specifications ensuring optimum system performance, proven reliability, easy installation and maintenance, and safe system operation.
| Attributes | |
|---|---|
| Amps | 5.3-10.6 |
| Approvals | CSA Listed; UL Listed |
| Bearing Type | Ball |
| Brand | Factory Authorized Parts |
| Country of Origin | MEX |
| Cubic Measurement | 0.7899 |
| Cycle/Hertz | 50/60 Hz |
| Dimensional Weight | 15 |
| Duty | (S1) Continuous Running Duty |
| GTIN | 00822529525044 |
| Motor Enclosure | Open Drip Proof (ODP) |
| Motor HP | 3 5/7 |
| Motor Type | Belt Drive |
| NEMA Frame | 56 |
| Number of Speeds | 1 |
| Phase | Three |
| Prop 65 | NO |
| RPM | 1,450-1,725 |
| Rotation | Counter Clockwise (CCW) |
| Shaft Diameter | 0.875″ (7/8″) |
| Shaft Length | 3.13″ |
| UOM | EA |
| UPC | 822529525044 |
| Voltage | 208-230/460 VAC |
