Description

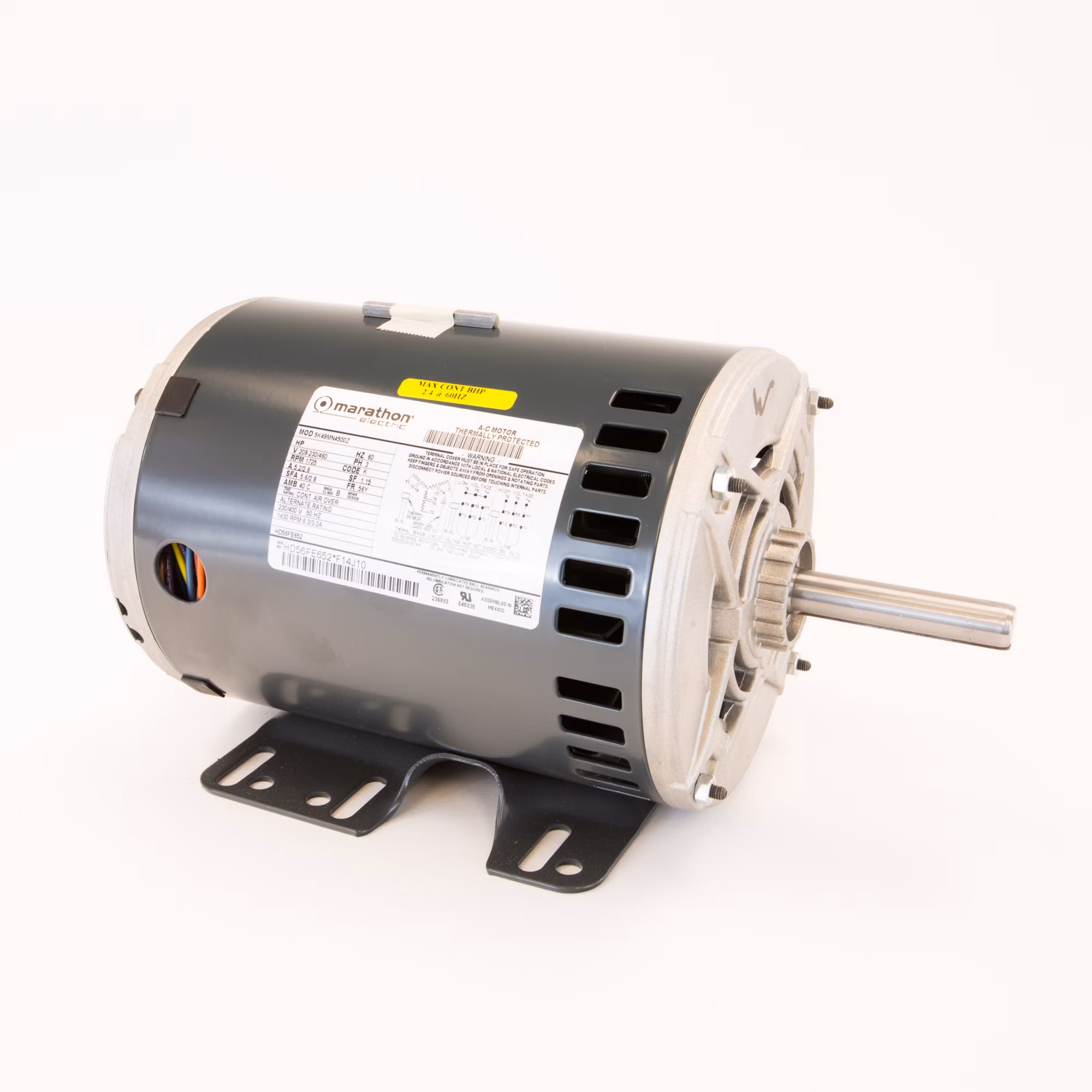

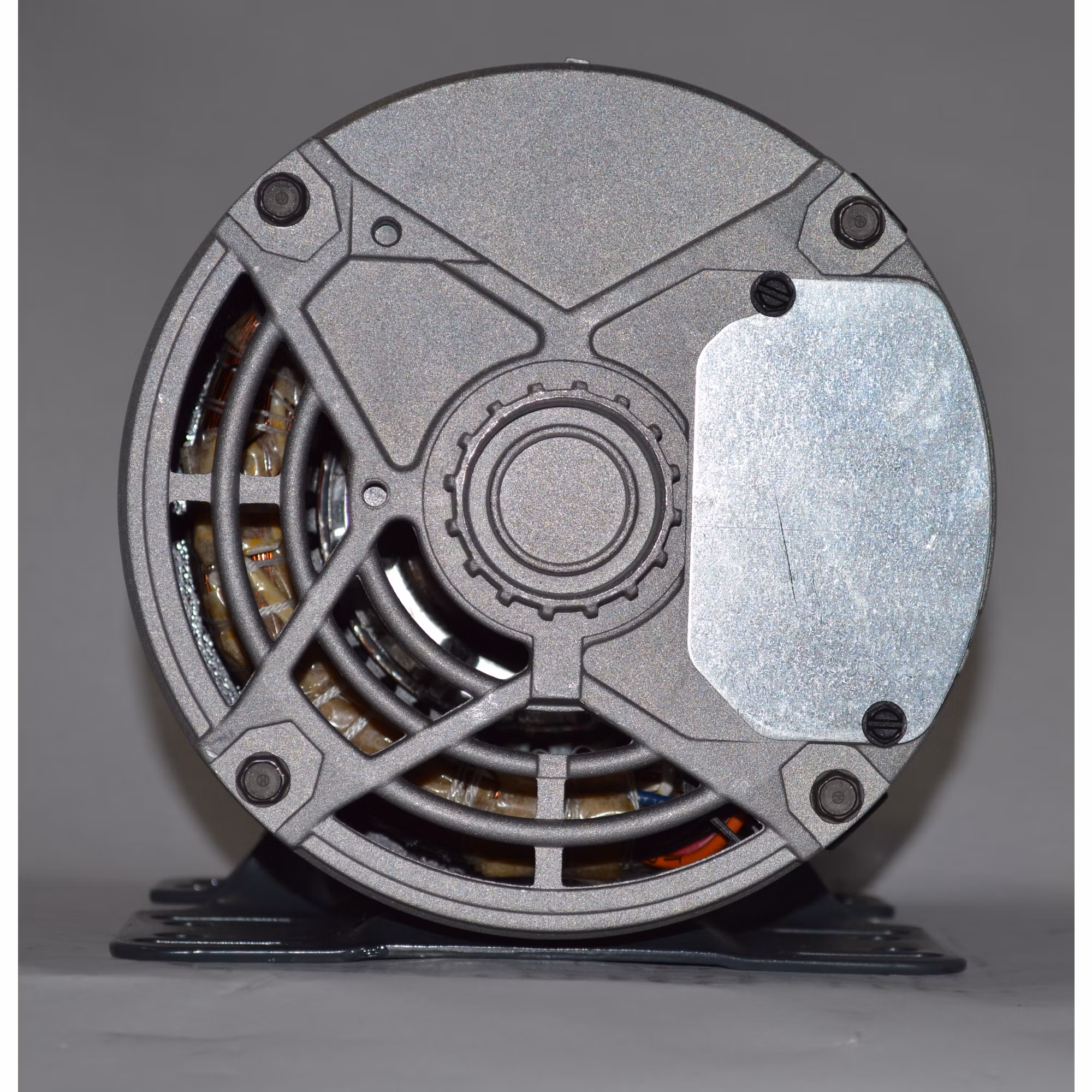

Factory Authorized Parts – HD56FE652 Blower Motor 2.4 HP 208-230/460 V 5.2/2.6 Amp 1725 RPM – E:Mail: sales@walkair.us to confirm availability or for volume discounts
When looking for replacement motors, look no further than our Factory Authorized Parts (FAP)! FAP are designed to meet exact Carrier® Corporation specifications, ensuring optimum system performance, proven reliability, easy installation and maintenance and safe system operation.
FAP Features
- Improved Efficiency – Motor runs at most efficient portion of motor performance curve by design
- Ensures motor is not overloaded
- Ensures that motor operates at the design RPM, which produces the correct airflow
- Reduced System Vibration – System design put motor RPM at optimal point for limiting torque pulsations that can generate excess vibration in the unit
- Reduced Noise – System qualification includes additional testing such as start/stop and pure tone noise identification which further ensures there is not excessive vibration or noise during unit operation.
- Overall length of motor assures that fan is located at intended position to minimize sound
| Attributes | |
|---|---|
| Amps | 2.6-5.2 |
| Approvals | CSA Listed |
| Bearing Type | Ball |
| Brand | Factory Authorized Parts |
| Country of Origin | MEX |
| Cubic Measurement | 0.6814 |
| Cycle/Hertz | 50 Hz |
| Dimensional Weight | 14 |
| Duty | (S1) Continuous Running Duty |
| GTIN | 00662442802958 |
| Insulation Class | B |
| Motor Enclosure | Open Drip Proof (ODP) |
| Motor HP | 2 1/4 |
| Motor Type | PSC (Permanent Split Capacitor) |
| Mounting Type | Welded Bolt |
| NEMA Frame | 56 |
| Number of Speeds | 1 |
| Phase | Three |
| Prop 65 | NO |
| RPM | 1,725 |
| Rotation | Counter Clockwise (CCW) |
| Shaft Diameter | 0.625″ (5/8″) |
| Shaft Length | 2 3/4″ |
| UOM | EA |
| UPC | 662442802958 |
| Voltage | 208-230/460 VAC |
