Description
Factory Authorized Parts – HD46MQ133 Blower Motor 3/4 HP (ECM), 115/120V, 1050 RPM, CCW – E:Mail: sales@walkair.us to confirm availability or for volume discounts

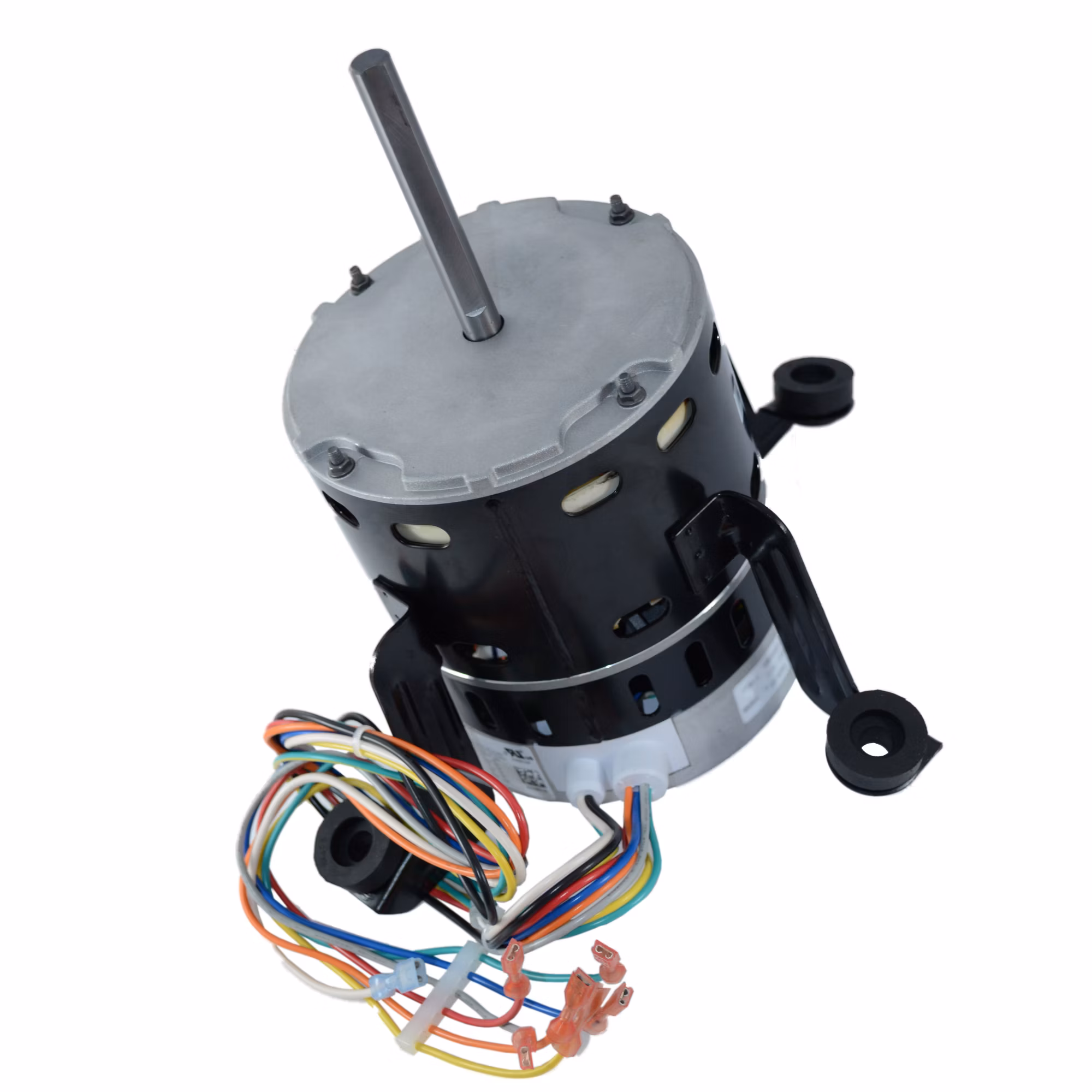

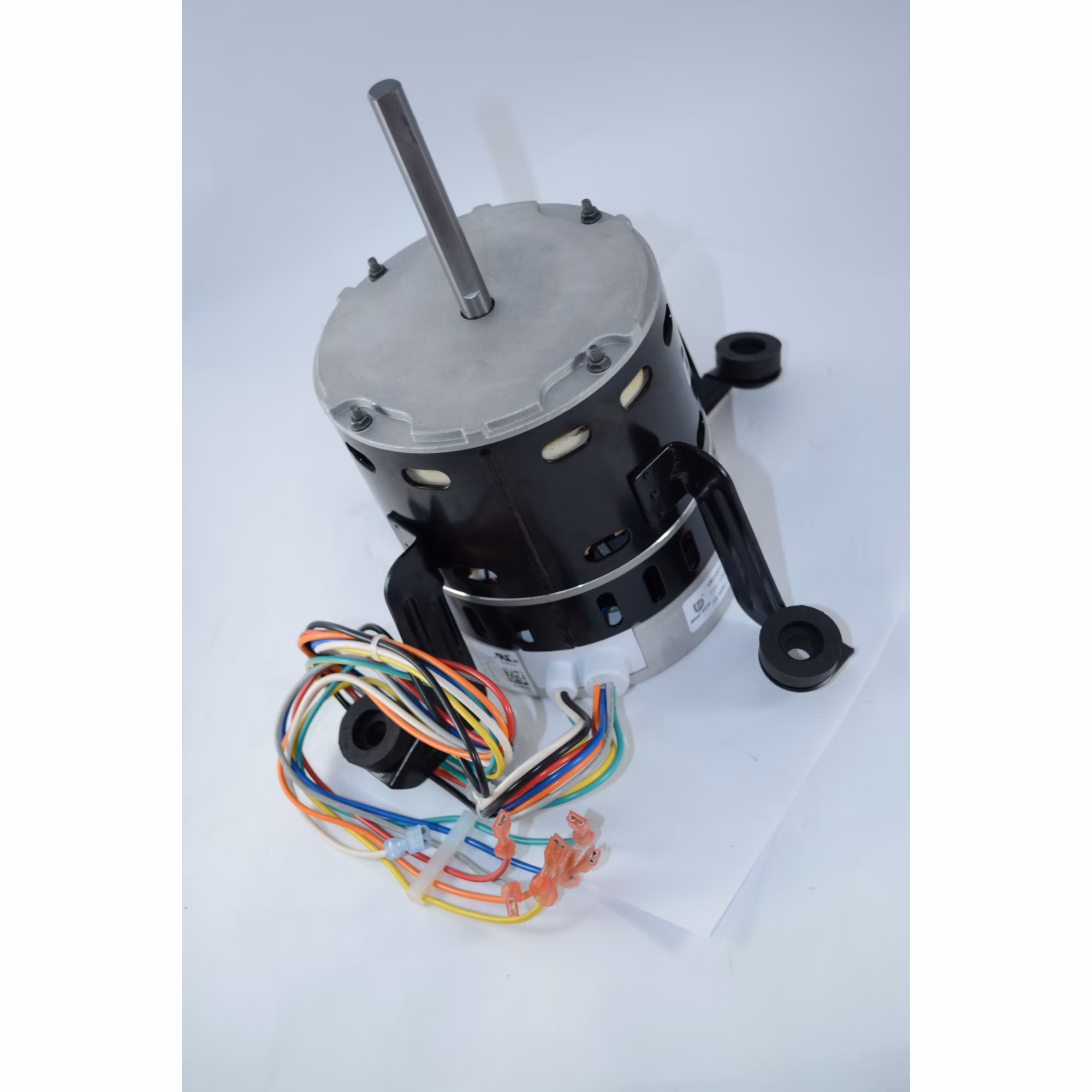

Factory Authorized Parts™ – HD46MQ133 Blower Motor 3/4 HP (ECM)
| Attributes | |
|---|---|
| Amps | 8.8 |
| Basis Of Rotation View | Lead End |
| Bearing Type | Ball |
| Brand | Factory Authorized Parts |
| Country of Origin | CHN |
| Cubic Measurement | 1.4766 |
| Cycle/Hertz | 50/60 Hz |
| Dimensional Weight | 20 |
| Duty | (S1) Continuous Running Duty |
| GTIN | 00822529820194 |
| Insulation Class | B |
| Motor HP | 3/4 |
| Motor Type | ECM (Electronically Commutated Motor) |
| Mounting Type | Arm and Grommet |
| NEMA Frame | 48 |
| Phase | Single |
| Prop 65 | NO |
| RPM | 1,050 |
| Rotation | Counter Clockwise (CCW) |
| Shaft Diameter | 0.5″ (1/2″) |
| Shaft Length | 3.92″ |
| UOM | EA |
| UPC | 822529820194 |
| Voltage | 115 VAC; 120 VAC |
