Description

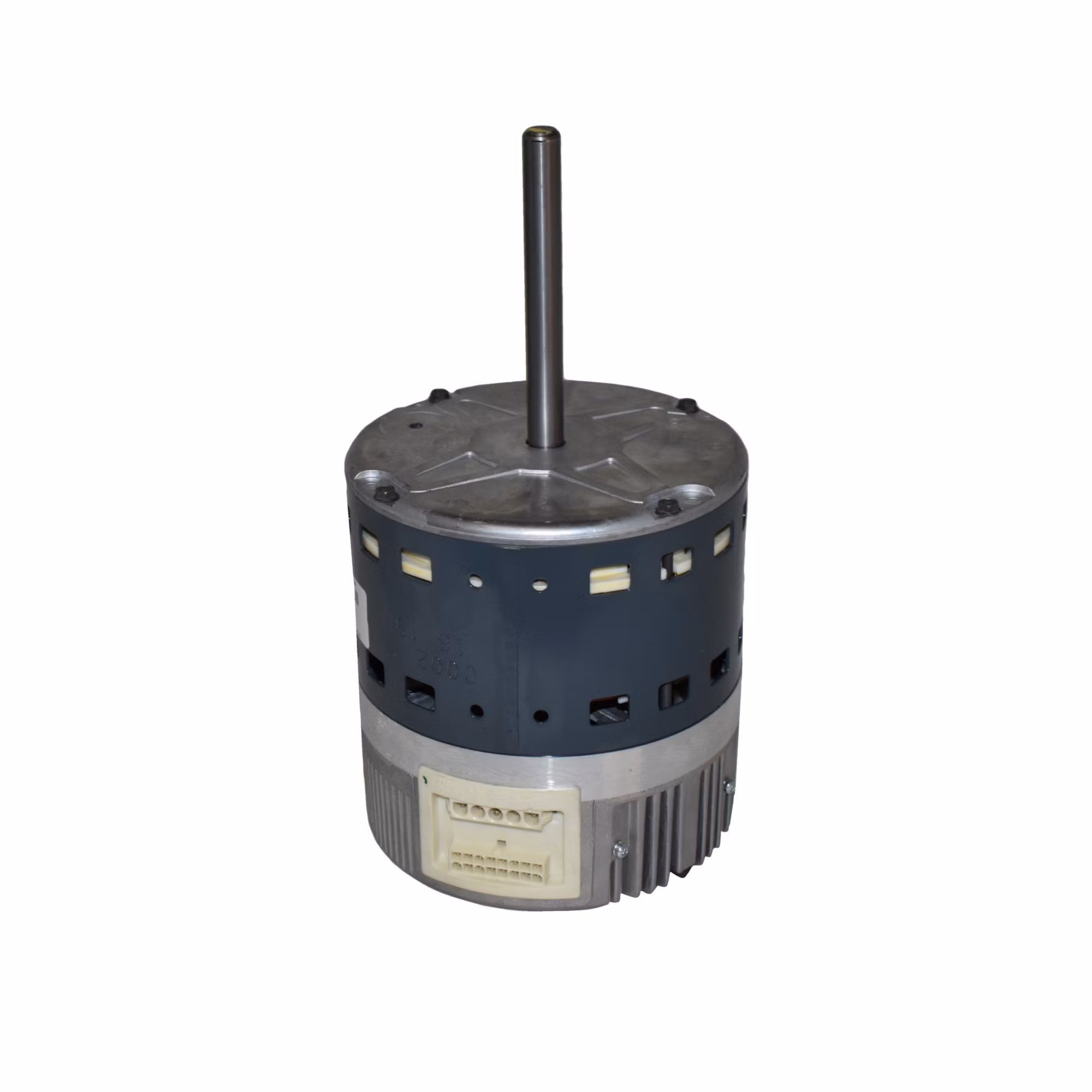

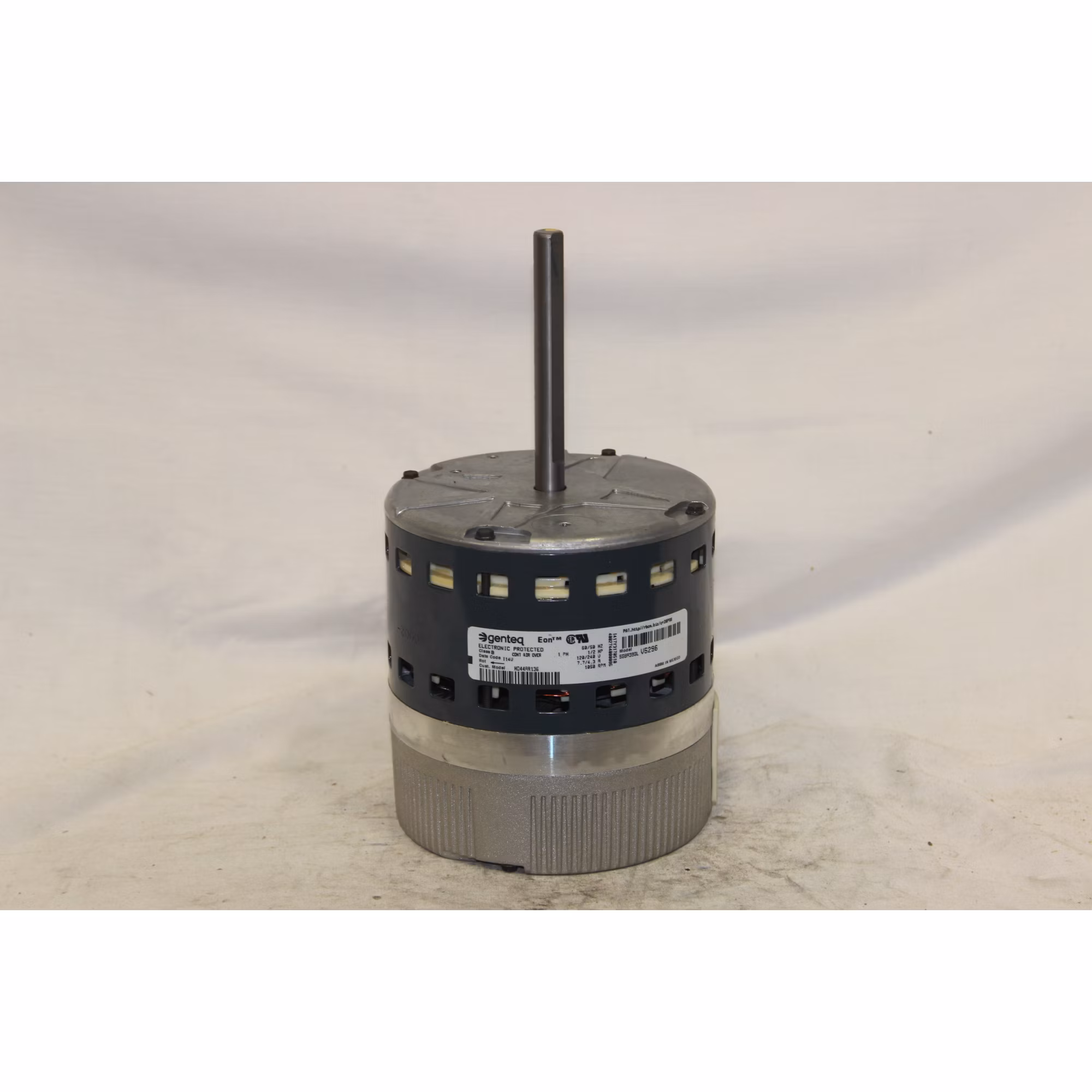

Factory Authorized Parts – HD44AR136 Blower Motor 1/2 HP 120/240 V 7.7/4.3 Amp 1050 RPM – E:Mail: sales@walkair.us to confirm availability or for volume discounts
When looking for replacement motors, look no further than our Factory Authorized Parts (FAP)! FAP are designed to meet exact Carrier® Corporation specifications, ensuring optimum system performance, proven reliability, easy installation and maintenance and safe system operation.
FAP Features
- Improved Efficiency – Motor runs at most efficient portion of motor performance curve by design
- Ensures motor is not overloaded
- Ensures that motor operates at the design RPM, which produces the correct airflow
- Reduced System Vibration – System design put motor RPM at optimal point for limiting torque pulsations that can generate excess vibration in the unit
- Reduced Noise – System qualification includes additional testing such as start/stop and pure tone noise identification which further ensures there is not excessive vibration or noise during unit operation.
- Overall length of motor assures that fan is located at intended position to minimize sound
| Attributes | |
|---|---|
| Amps | 4.3-7.7 |
| Approvals | CSA Listed |
| Basis Of Rotation View | Lead End |
| Bearing Type | Ball |
| Brand | Factory Authorized Parts |
| Country of Origin | MEX |
| Cubic Measurement | 0.1704 |
| Cycle/Hertz | 60 Hz |
| Dimensional Weight | 5 |
| Duty | (S1) Continuous Running Duty |
| GTIN | 00822529618227 |
| Insulation Class | B |
| Motor HP | 1/2 |
| Motor Type | ECM (Electronically Commutated Motor) |
| Mounting Type | Horizontal |
| NEMA Frame | 48Y |
| Number of Speeds | Variable |
| Phase | Single |
| Prop 65 | NO |
| RPM | 1,050 |
| Rotation | Counter Clockwise (CCW) |
| Shaft Diameter | 1/2″ |
| Shaft Length | 4 1/4″ |
| UOM | EA |
| UPC | 822529618227 |
| Voltage | 120/240 VAC |
