Description
Factory Authorized Parts – HD42AQ252 – ECM Motor 1/3HP – E:Mail: sales@walkair.us to confirm availability or for volume discounts

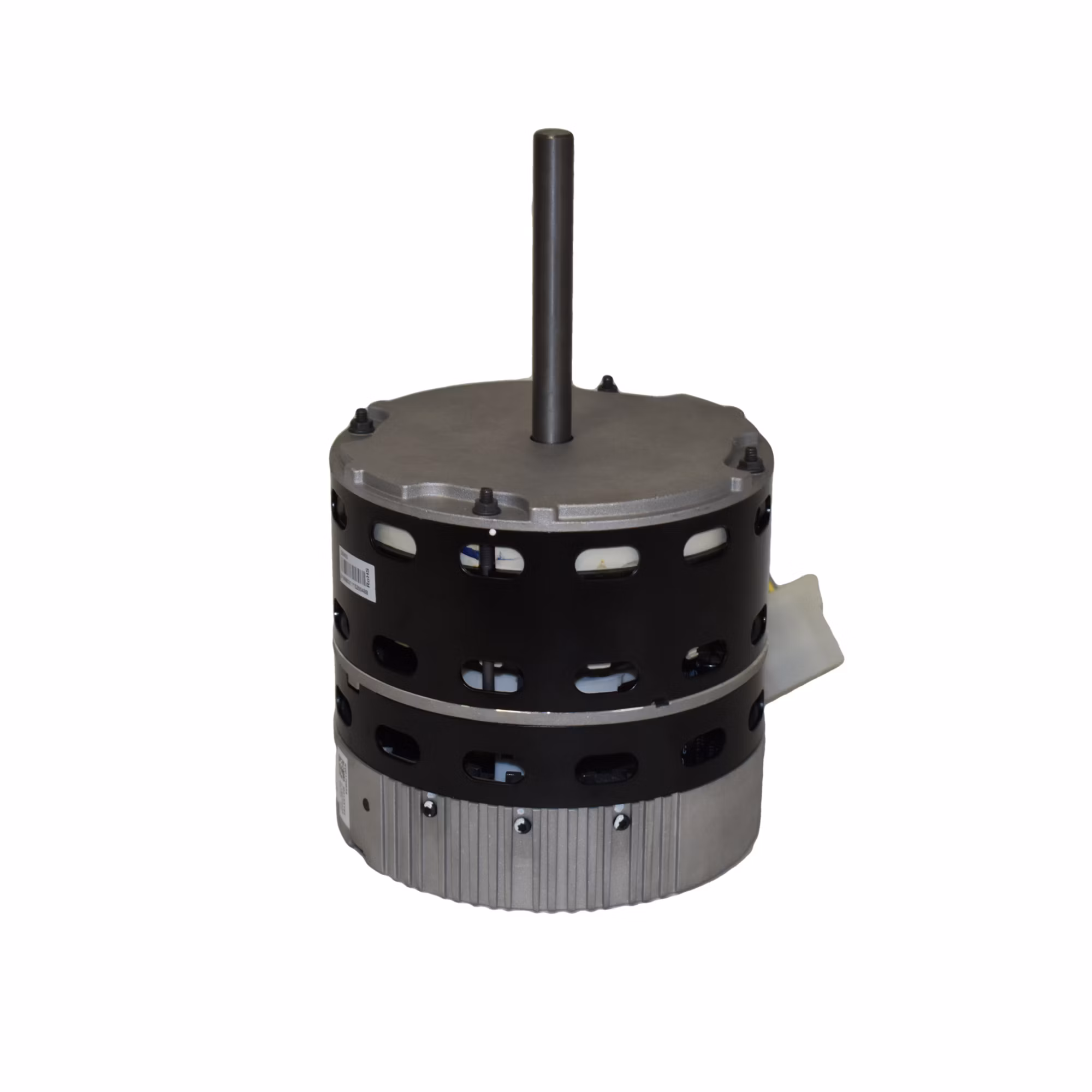

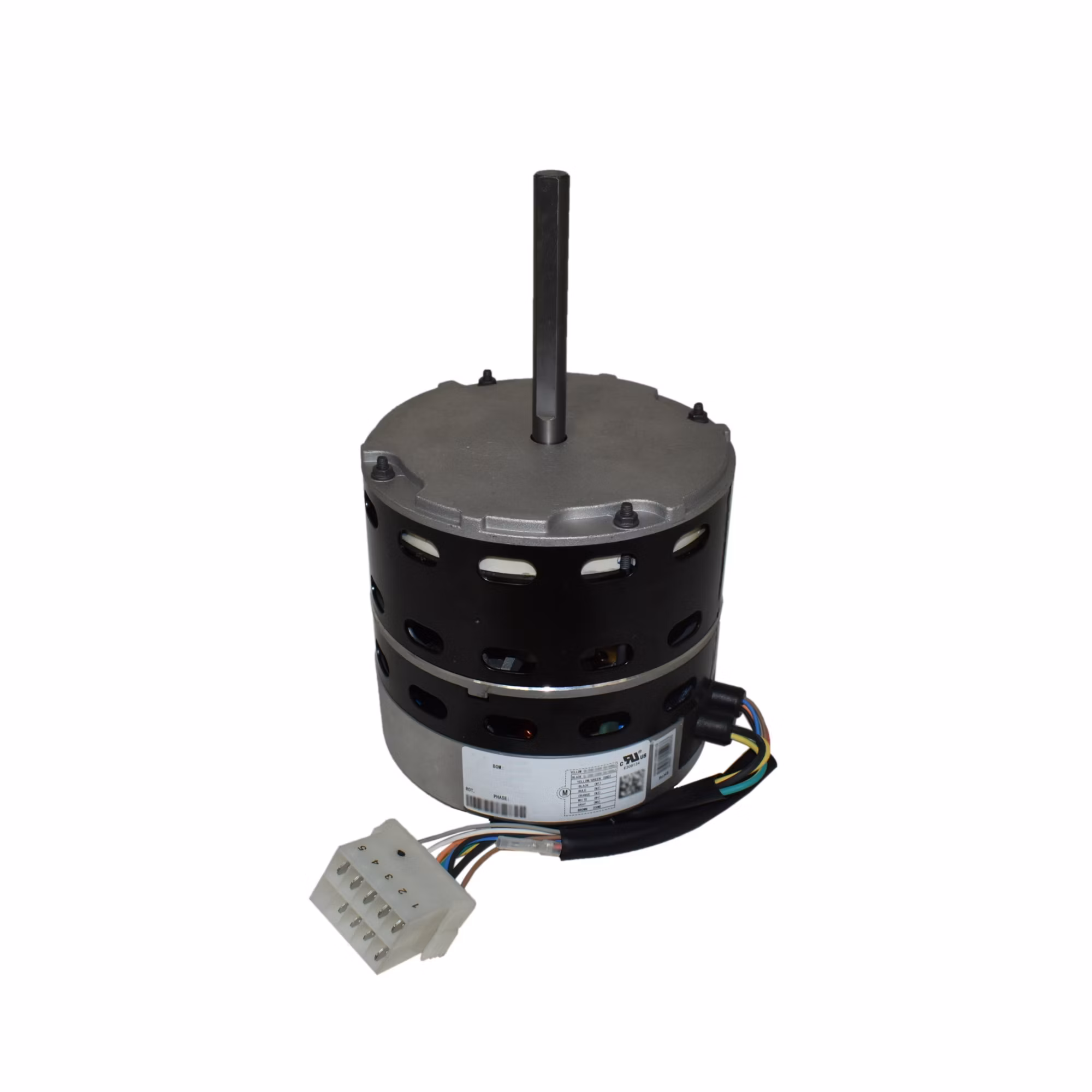

Factory Authorized Parts™ – HD42AQ252 – ECM Motor 1/3HP
Factory Authorized Parts are designed to meet exact Carrier® Corporation specifications, ensuring optimum system performance, proven reliability, easy installation and maintenance and safe system operation.
| Attributes | |
|---|---|
| Amps | 2.6 |
| Bearing Type | Ball |
| Brand | Factory Authorized Parts |
| Country of Origin | CHN |
| Cubic Measurement | 0.4347 |
| Cycle/Hertz | 50/60 Hz |
| Duty | (S1) Continuous Running Duty |
| GTIN | 00822529928012 |
| Insulation Class | B |
| Motor HP | 1/3 |
| Motor Type | ECM (Electronically Commutated Motor) |
| Mounting Type | Belly Band |
| NEMA Frame | 48 |
| Number of Speeds | Variable |
| Phase | Single |
| Prop 65 | YES |
| RPM | 1,050 |
| Rotation | Counter Clockwise (CCW) |
| Shaft Diameter | 0.5″ (1/2″) |
| Shaft Length | 3.92″ |
| UPC | 822529928012 |
| Voltage | 208-230 VAC |
