Factory Authorized Parts – HC680001 Inducer Motor 1/16 HP 208/230 V 0.45 Amp 3450 RPM – E:Mail: sales@walkair.us to confirm availability or for volume discounts

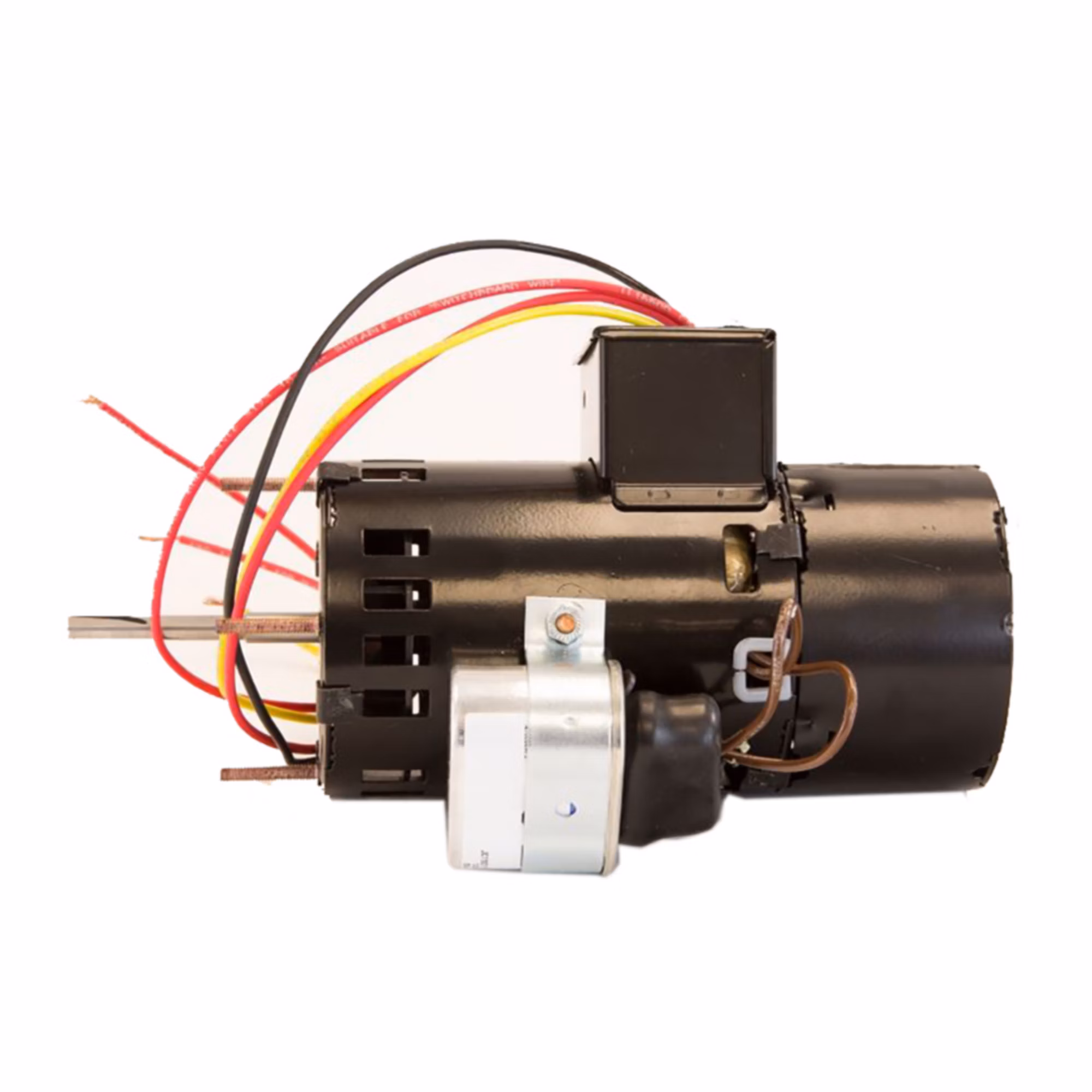

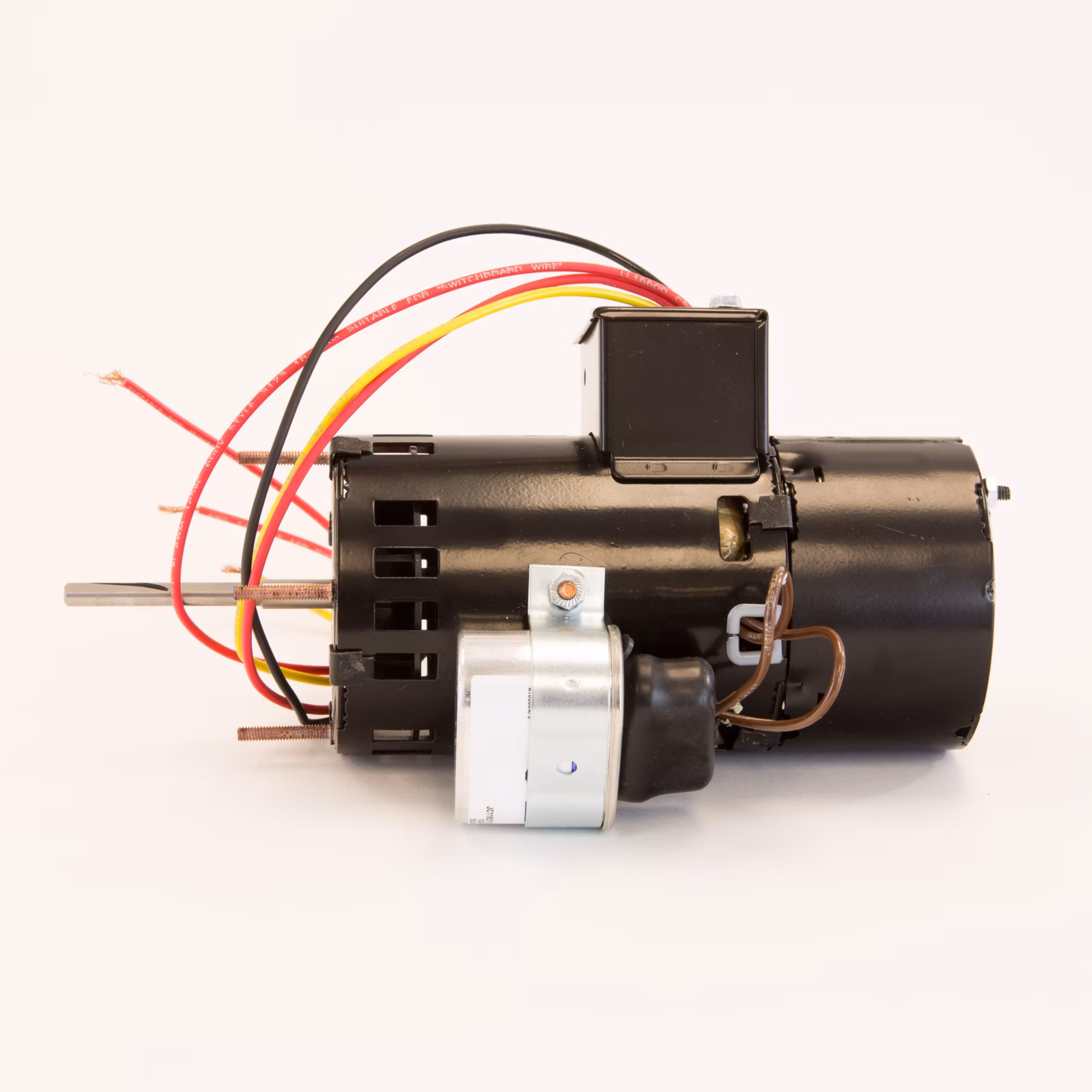

Factory Authorized Parts™ – HC680001 Inducer Motor 1/16 HP 208/230 V 0.45 Amp 3450 RPM
| Attributes | |
|---|---|
| Amps | 0.45 |
| Approvals | CSA Listed |
| Basis Of Rotation View | Lead End |
| Bearing Type | Ball |
| Brand | Factory Authorized Parts |
| Country of Origin | MEX |
| Cubic Measurement | 0.0827 |
| Cycle/Hertz | 60 Hz |
| Dimensional Weight | 3 |
| Duty | (S1) Continuous Running Duty |
| Full Load Amps | 0.45 |
| GTIN | 00662441139994 |
| Insulation Class | B |
| Motor HP | 1/16 |
| Motor Type | PSC (Permanent Split Capacitor) |
| Mounting Type | Weld Stud |
| NEMA Frame | 48Y |
| Number of Speeds | 1 |
| Phase | Single |
| Prop 65 | NO |
| Protection | No |
| RPM | 3,450 |
| Rotation | Counter Clockwise (CCW) |
| Shaft Diameter | 0.3125″ (5/16″) |
| Shaft Length | 2.75″ |
| UOM | EA |
| UPC | 662441139994 |
| Voltage | 208-230 VAC |
