Description
Factory Authorized Parts – HC52TQ115 Blower Motor – E:Mail: sales@walkair.us to confirm availability or for volume discounts

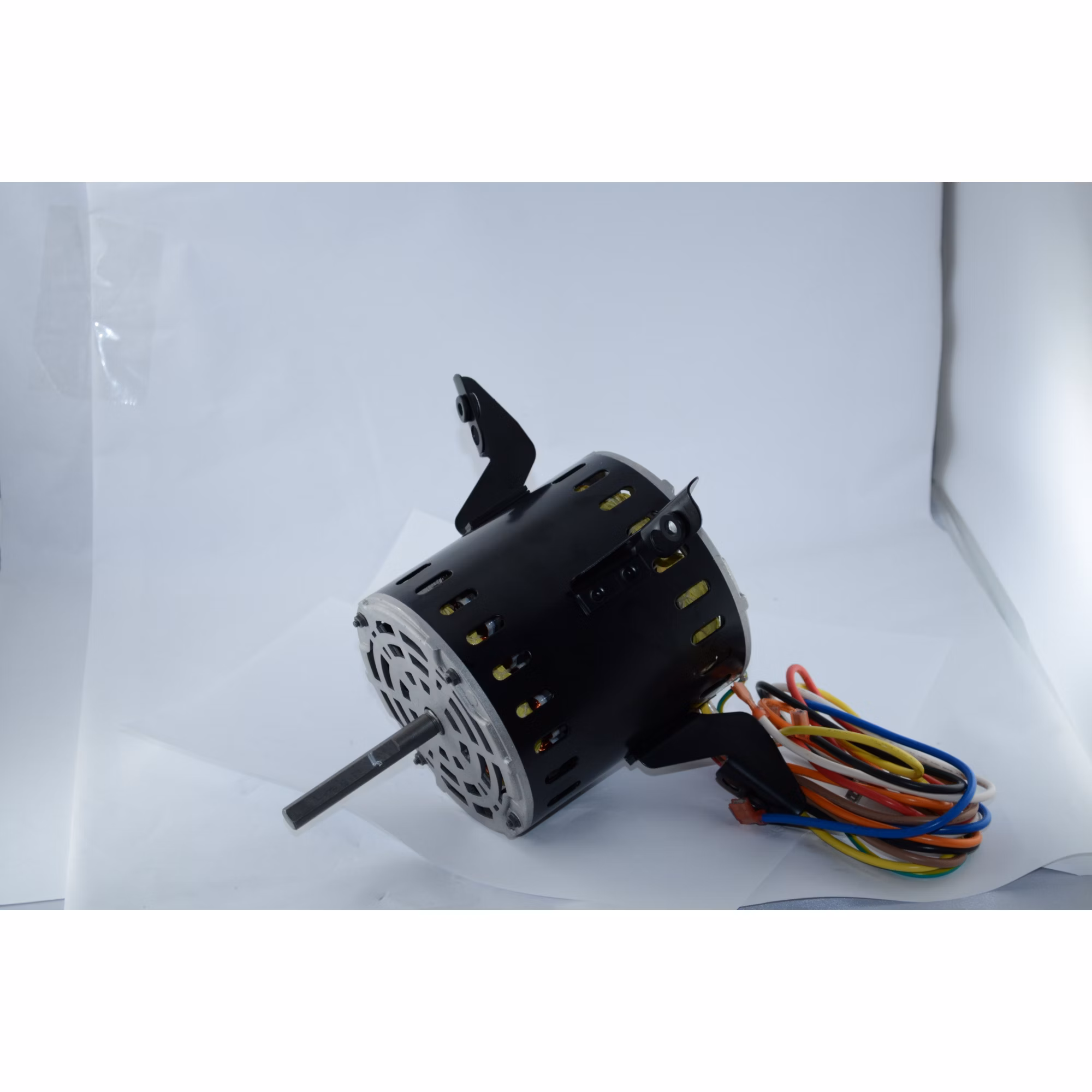

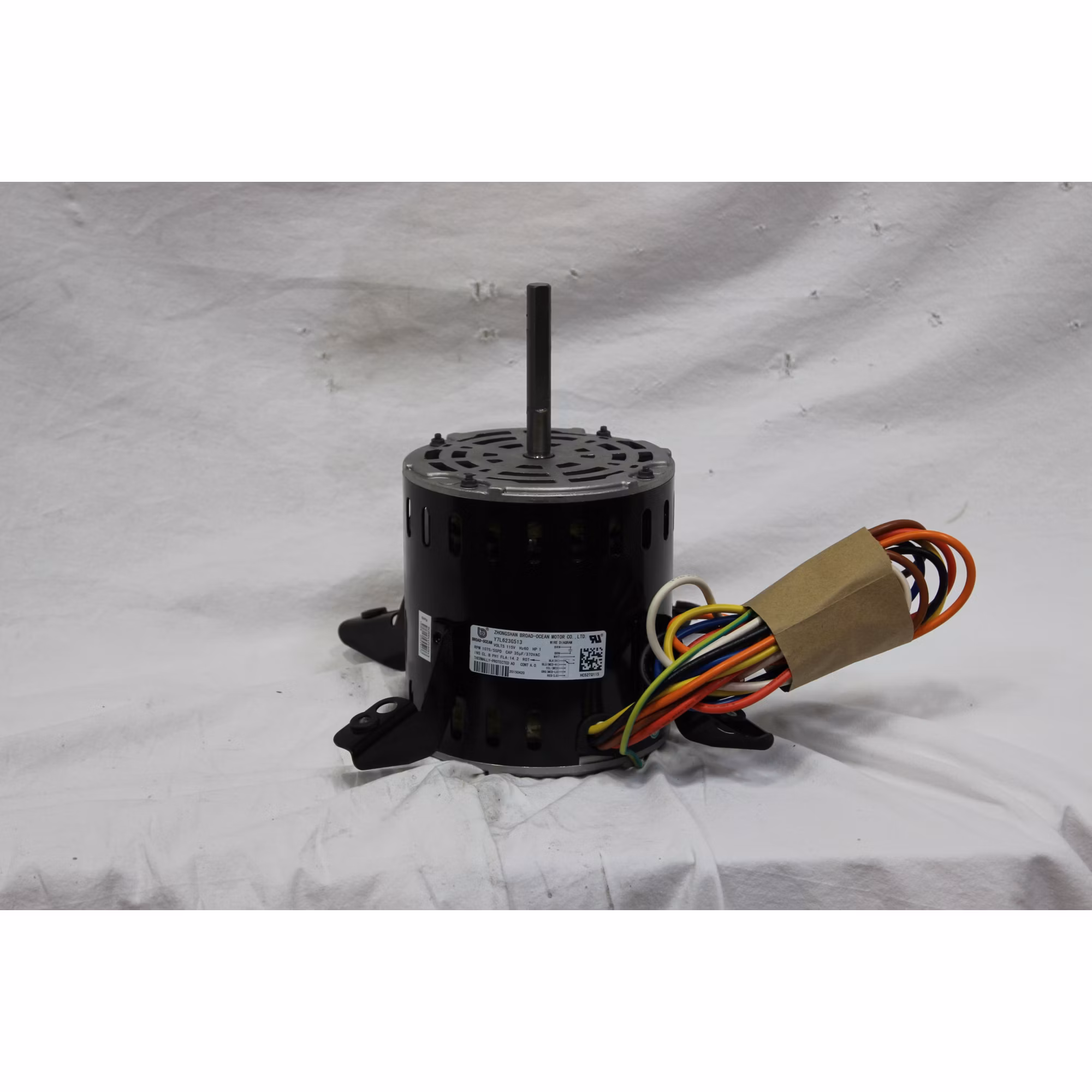

Factory Authorized Parts™ – HC52TQ115 Blower Motor
Factory Authorized Parts are designed to meet exact Carrier® Corporation specifications, ensuring optimum system performance, proven reliability, easy installation and maintenance and safe system operation.
| Attributes | |
|---|---|
| Approvals | CSA Listed |
| Basis Of Rotation View | Lead End |
| Bearing Type | Ball |
| Brand | Factory Authorized Parts |
| Country of Origin | VNM |
| Cubic Measurement | 0.4023 |
| Cycle/Hertz | 60 Hz |
| Dimensional Weight | 9 |
| Duty | (S1) Continuous Running Duty |
| GTIN | 00822529679396 |
| Insulation Class | B |
| Motor HP | 1 |
| Motor Type | PSC (Permanent Split Capacitor) |
| Mounting Type | Arm and Grommet |
| NEMA Frame | 48Y |
| Phase | Single |
| Prop 65 | NO |
| RPM | 1,075 |
| Rotation | Counter Clockwise (CCW) |
| Shaft Diameter | 0.5″ (1/2″) |
| Shaft Length | 3.54″ |
| UOM | EA |
| UPC | 822529679396 |
| Voltage | 115 VAC |
