Description
Factory Authorized Parts – HC52AE464 Direct Drive Blower Motor 1HP 460V 48Fr 1040RPM – E:Mail: sales@walkair.us to confirm availability or for volume discounts

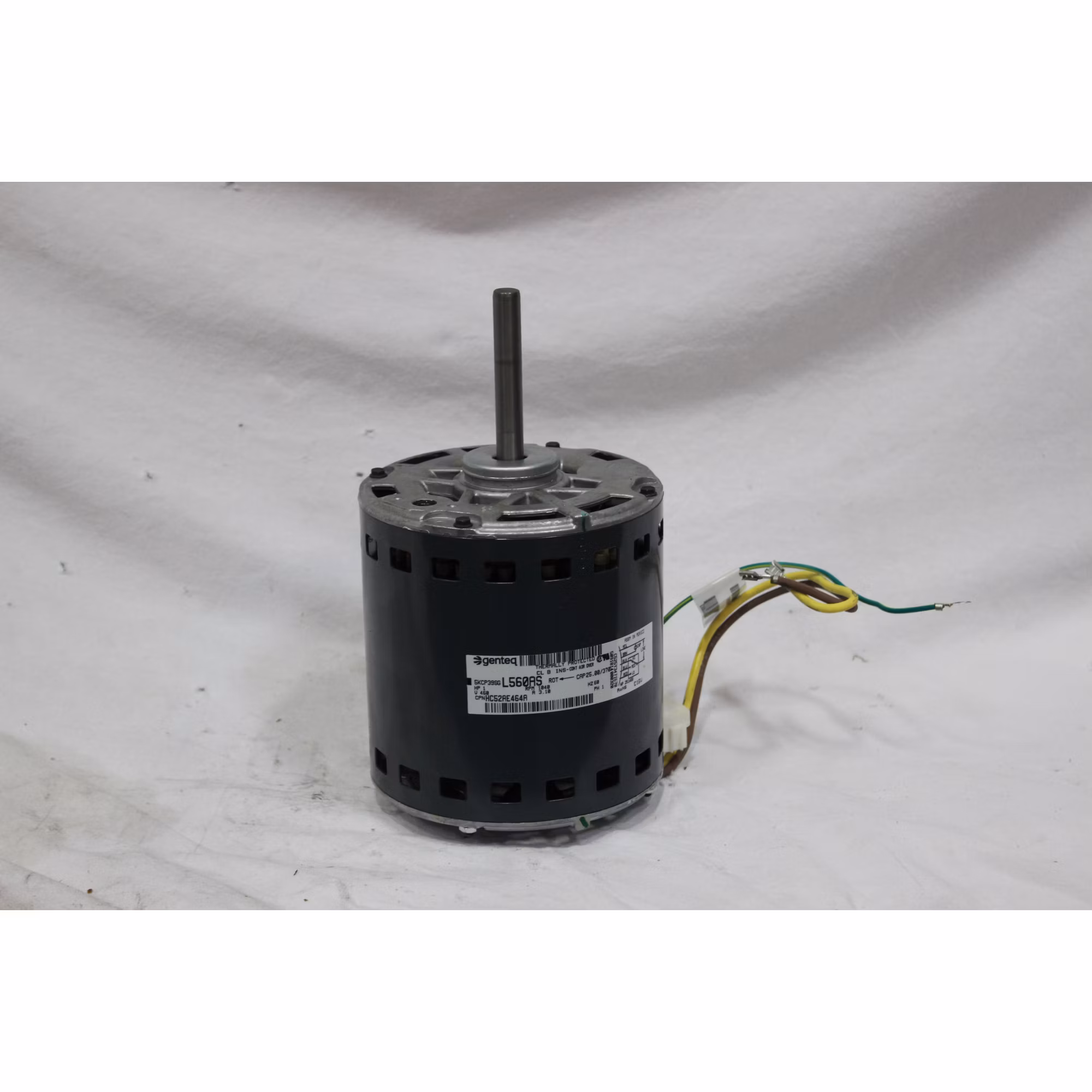

Factory Authorized Parts™ – HC52AE464 Direct Drive Blower Motor 1HP 460V 48Fr 1040RPM
Factory Authorized Parts are designed to meet exact Carrier® Corporation specifications ensuring optimum system performance, proven reliability, easy installation and maintenance, and safe system operation.
| Attributes | |
|---|---|
| Amps | 3.1 |
| Approvals | CSA Listed |
| Basis Of Rotation View | Lead End |
| Bearing Type | Ball |
| Brand | Factory Authorized Parts |
| Country of Origin | MEX |
| Cubic Measurement | 0.2055 |
| Cycle/Hertz | 60 Hz |
| Dimensional Weight | 6 |
| Duty | (S1) Continuous Running Duty |
| Full Load Amps | 3.1 |
| GTIN | 00662441401336 |
| Insulation Class | B |
| Motor HP | 1 |
| Motor Type | PSC (Permanent Split Capacitor) |
| Mounting Type | Belly Band |
| NEMA Frame | 48 |
| Number of Speeds | 1 |
| Phase | Single |
| Prop 65 | NO |
| Protection | No |
| RPM | 1,040 |
| Rotation | Counter Clockwise (CCW) |
| Shaft Diameter | 0.5″ (1/2″) |
| Shaft Length | 3″ |
| UOM | EA |
| UPC | 662441401336 |
| Voltage | 460 VAC |
