Factory Authorized Parts – HC45AR230 Condenser Fan Motor – E:Mail: sales@walkair.us to confirm availability or for volume discounts

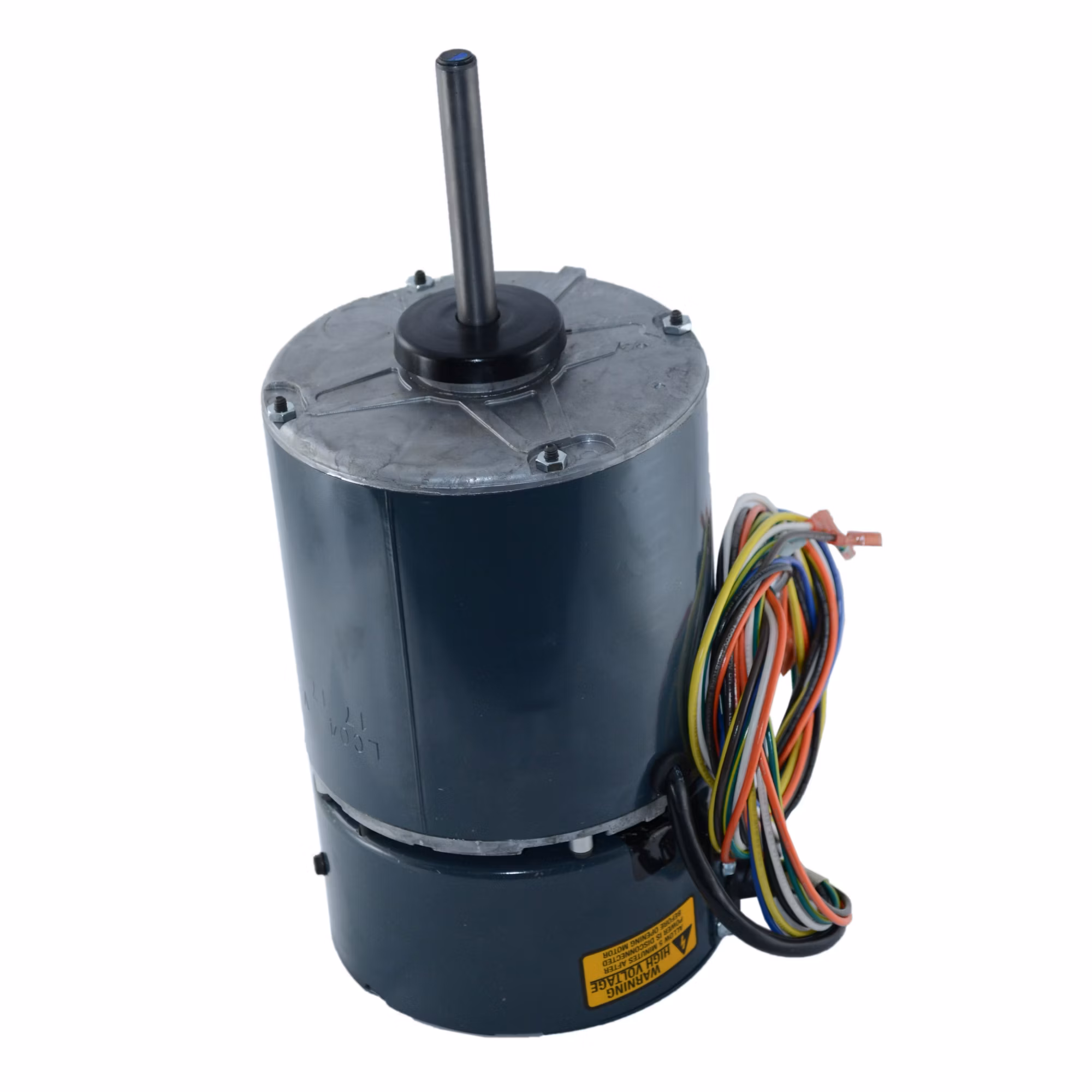

Factory Authorized Parts™ – HC45AR230 Condenser Fan Motor
| Attributes | |
|---|---|
| Amps | 7-7.4 |
| Approvals | CSA Listed |
| Brand | Factory Authorized Parts |
| Country of Origin | MEX |
| Cubic Measurement | 0.2095 |
| Cycle/Hertz | 50 Hz |
| Dimensional Weight | 4 |
| Duty | (S1) Continuous Running Duty |
| Full Load Amps | 7 |
| GTIN | 00822529503714 |
| Insulation Class | B |
| Motor HP | 1 |
| Motor Type | ECM (Electronically Commutated Motor) |
| NEMA Frame | 48 |
| Number of Speeds | Variable |
| Phase | Single |
| Prop 65 | NO |
| Protection | No |
| RPM | 1,100 |
| Rotation | Reversible |
| Shaft Diameter | 0.5″ (1/2″) |
| Shaft Length | 3 3/8″ |
| UOM | EA |
| UPC | 822529503714 |
| Voltage | 230 VAC |
