Description

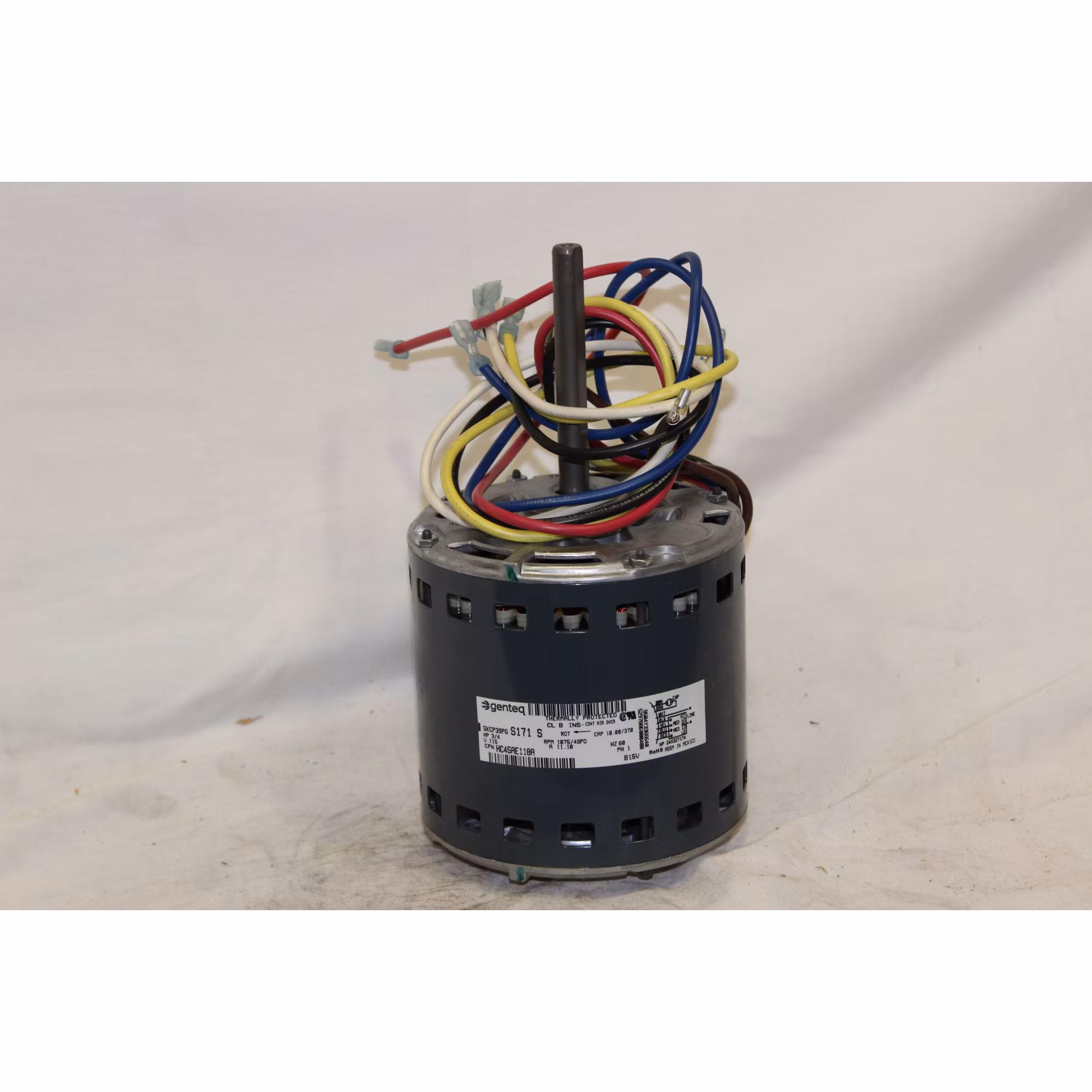

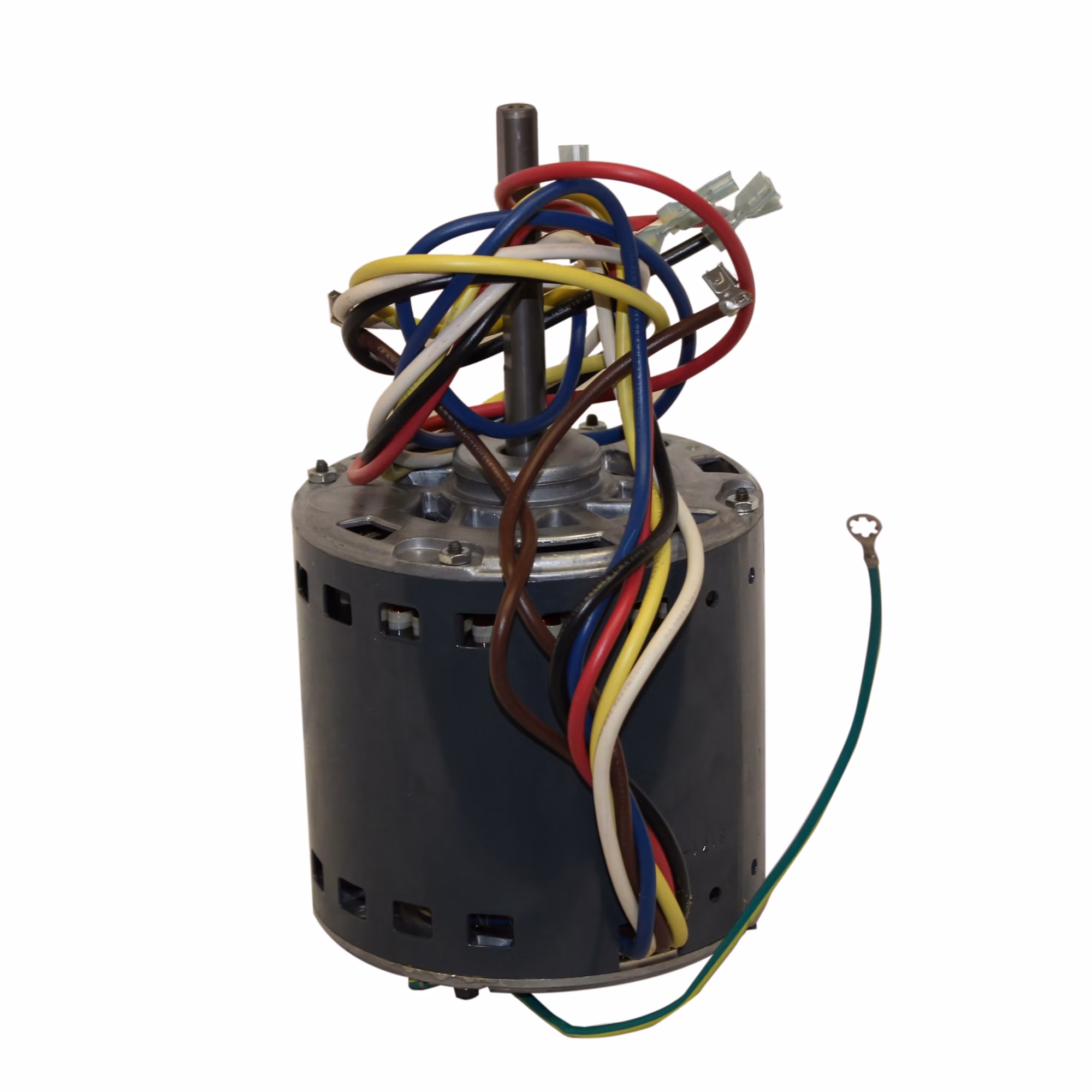

Factory Authorized Parts – HC45AE118 Blower Motor 3/4 HP 115 V 11.10 Amp 1075 RPM – E:Mail: sales@walkair.us to confirm availability or for volume discounts
When looking for replacement motors, look no further than our Factory Authorized Parts (FAP)! FAP are designed to meet exact Carrier® Corporation specifications, ensuring optimum system performance, proven reliability, easy installation and maintenance and safe system operation.
FAP Features
- Improved Efficiency – Motor runs at most efficient portion of motor performance curve by design
- Ensures motor is not overloaded
- Ensures that motor operates at the design RPM, which produces the correct airflow
- Reduced System Vibration – System design put motor RPM at optimal point for limiting torque pulsations that can generate excess vibration in the unit
- Reduced Noise – System qualification includes additional testing such as start/stop and pure tone noise identification which further ensures there is not excessive vibration or noise during unit operation.
- Overall length of motor assures that fan is located at intended position to minimize sound
| Attributes | |
|---|---|
| Approvals | CSA Listed |
| Basis Of Rotation View | Lead End |
| Bearing Type | Sleeve |
| Brand | Factory Authorized Parts |
| Country of Origin | MEX |
| Cubic Measurement | 0.2044 |
| Cycle/Hertz | 60 Hz |
| Dimensional Weight | 6 |
| Duty | (S1) Continuous Running Duty |
| GTIN | 00662441416880 |
| Insulation Class | B |
| Motor HP | 3/4 |
| Motor Type | PSC (Permanent Split Capacitor) |
| Mounting Type | Belly Band |
| NEMA Frame | 48 |
| Number of Speeds | 4 |
| Phase | Single |
| Prop 65 | NO |
| RPM | 1,075 |
| Rotation | Counter Clockwise (CCW) |
| Shaft Diameter | 0.5″ (1/2″) |
| Shaft Length | 4″ |
| UOM | EA |
| UPC | 662441416880 |
| Voltage | 115 VAC |
