Factory Authorized Parts – HC43VL460 Condenser Fan Motor PSC 1/2 HP 460V 1075 RPM CCW – E:Mail: sales@walkair.us to confirm availability or for volume discounts

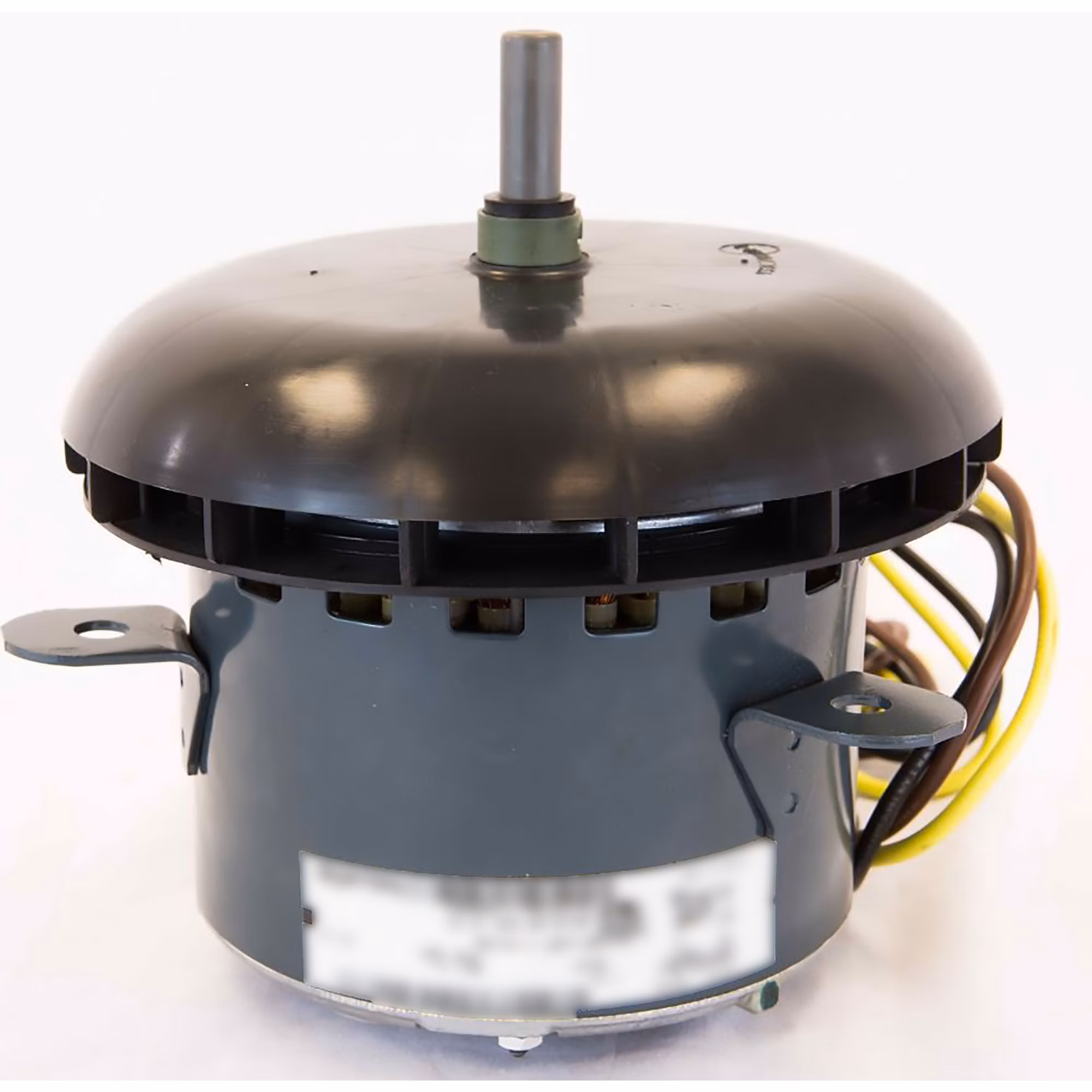

Factory Authorized Parts™ – HC43VL460 Condenser Motor PSC 1/2 HP 460V 1075 RPM CCW
Factory Authorized Parts are designed to meet exact Carrier® Corporation specifications ensuring optimum system performance, proven reliability, easy installation and maintenance, and safe system operation.
| Attributes | |
|---|---|
| Amps | 1.9 |
| Approvals | CSA Listed |
| Bearing Type | Sleeve |
| Brand | Factory Authorized Parts |
| Capacitor MFD (µF) | 7.5 |
| Country of Origin | MEX |
| Cubic Measurement | 0.3188 |
| Cycle/Hertz | 60 Hz |
| Dimensional Weight | 14 |
| Duty | (S1) Continuous Running Duty |
| Full Load Amps | 1.9 |
| GTIN | 00662441153945 |
| Insulation Class | B |
| Motor Enclosure | Open |
| Motor HP | 1/2 |
| Motor Type | PSC (Permanent Split Capacitor) |
| Mounting Type | Vertical Shaft Up |
| NEMA Frame | 48 |
| Number of Speeds | 1 |
| Phase | Single |
| Prop 65 | NO |
| Protection | Yes |
| RPM | 1,075 |
| Rotation | Counter Clockwise (CCW) |
| Shaft Diameter | 0.5″ (1/2″) |
| Shaft Length | 2.75″ |
| UOM | EA |
| UPC | 662441153945 |
| Voltage | 460 VAC |
