Description
Factory Authorized Parts – HC39GE466 Condenser Fan Motor 1/4HP 460/1 1100RPM CW FR48 – E:Mail: sales@walkair.us to confirm availability or for volume discounts

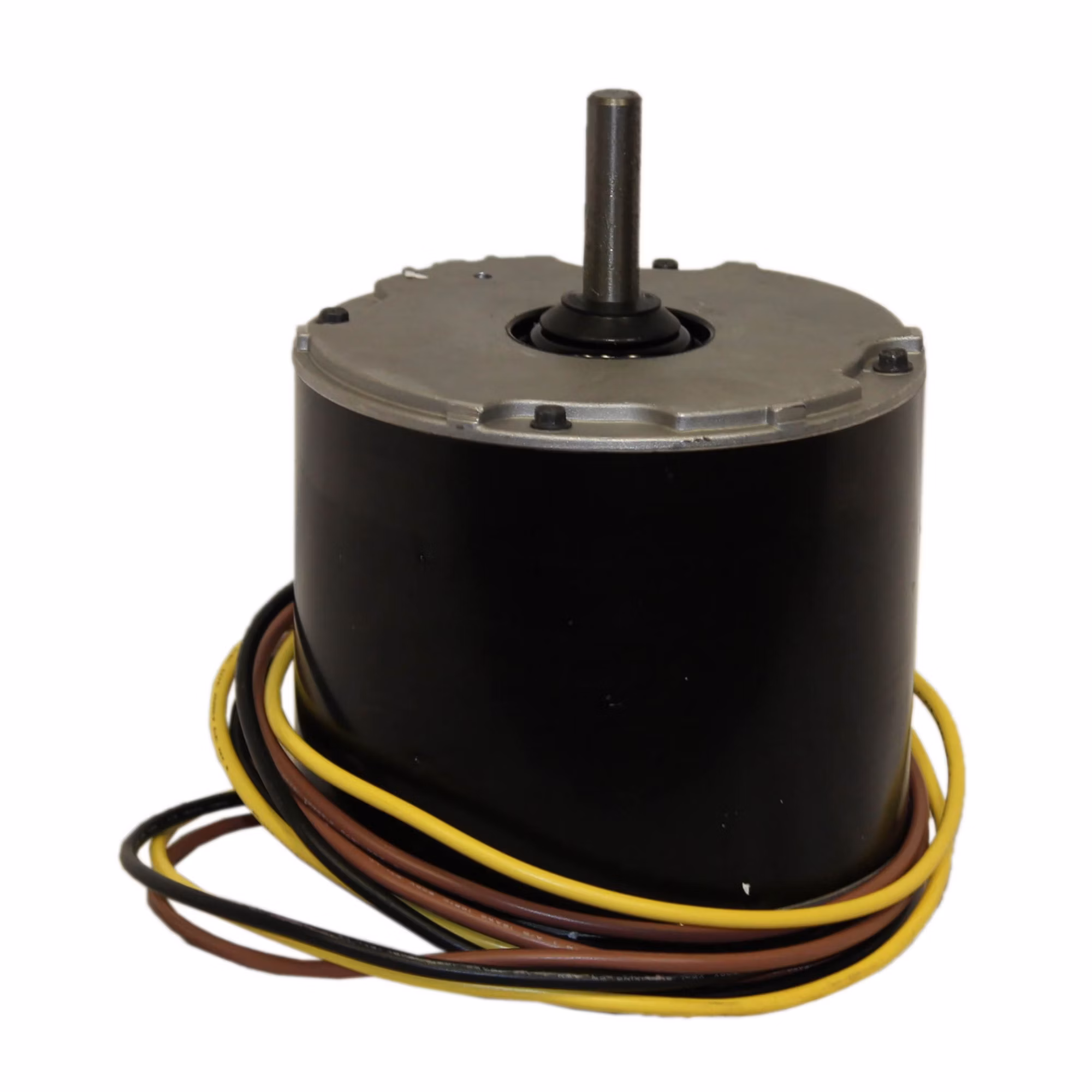

Factory Authorized Parts™ – HC39GE466 Condenser Fan Motor 1/4HP 460/1 1100RPM CW FR48
Factory Authorized Parts are designed to meet exact Carrier® Corporation specifications ensuring optimum system performance, proven reliability, easy installation and maintenance, and safe system operation.
| Attributes | |
|---|---|
| Amps | 0.7 |
| Approvals | CSA Listed |
| Basis Of Rotation View | Lead End |
| Bearing Type | Sleeve |
| Brand | Factory Authorized Parts |
| Country of Origin | MEX |
| Cubic Measurement | 0.1721 |
| Cycle/Hertz | 50 Hz |
| Dimensional Weight | 5 |
| Duty | (S1) Continuous Running Duty |
| Full Load Amps | 0.8 |
| GTIN | 00662441444890 |
| Insulation Class | B |
| Motor HP | 1/4 |
| Motor Type | PSC (Permanent Split Capacitor) |
| Mounting Type | Thru-Bolt |
| NEMA Frame | 48 |
| Number of Speeds | 1 |
| Phase | Single |
| Prop 65 | NO |
| Protection | No |
| RPM | 900-1,100 |
| Rotation | Clockwise (CW) |
| Shaft Diameter | 0.5″ (1/2″) |
| Shaft Length | 1.5″ |
| UOM | EA |
| UPC | 662441444890 |
| Voltage | 400/460 VAC |
