Description
Factory Authorized Parts – HC39GE241 Condenser Fan Motor – E:Mail: sales@walkair.us to confirm availability or for volume discounts

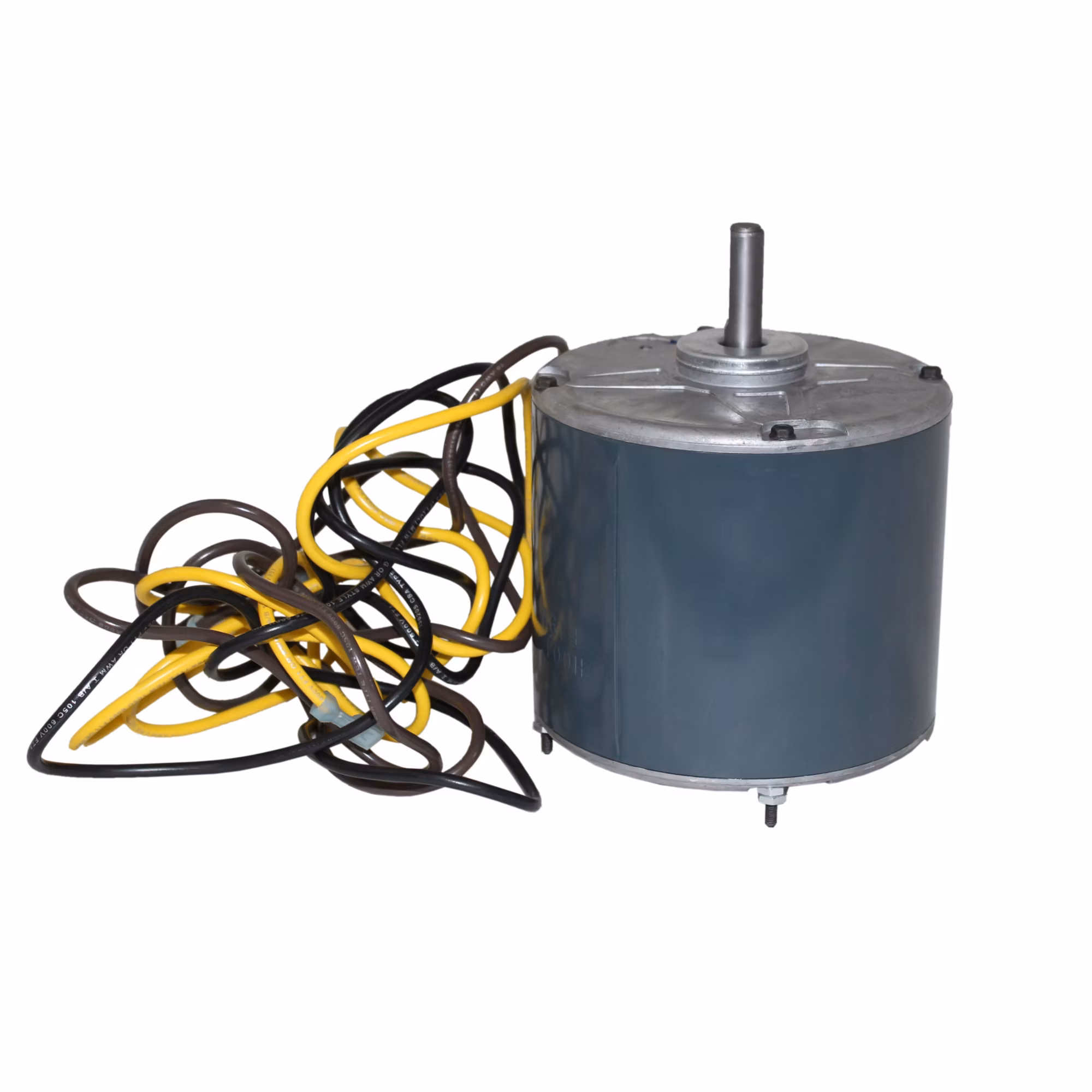

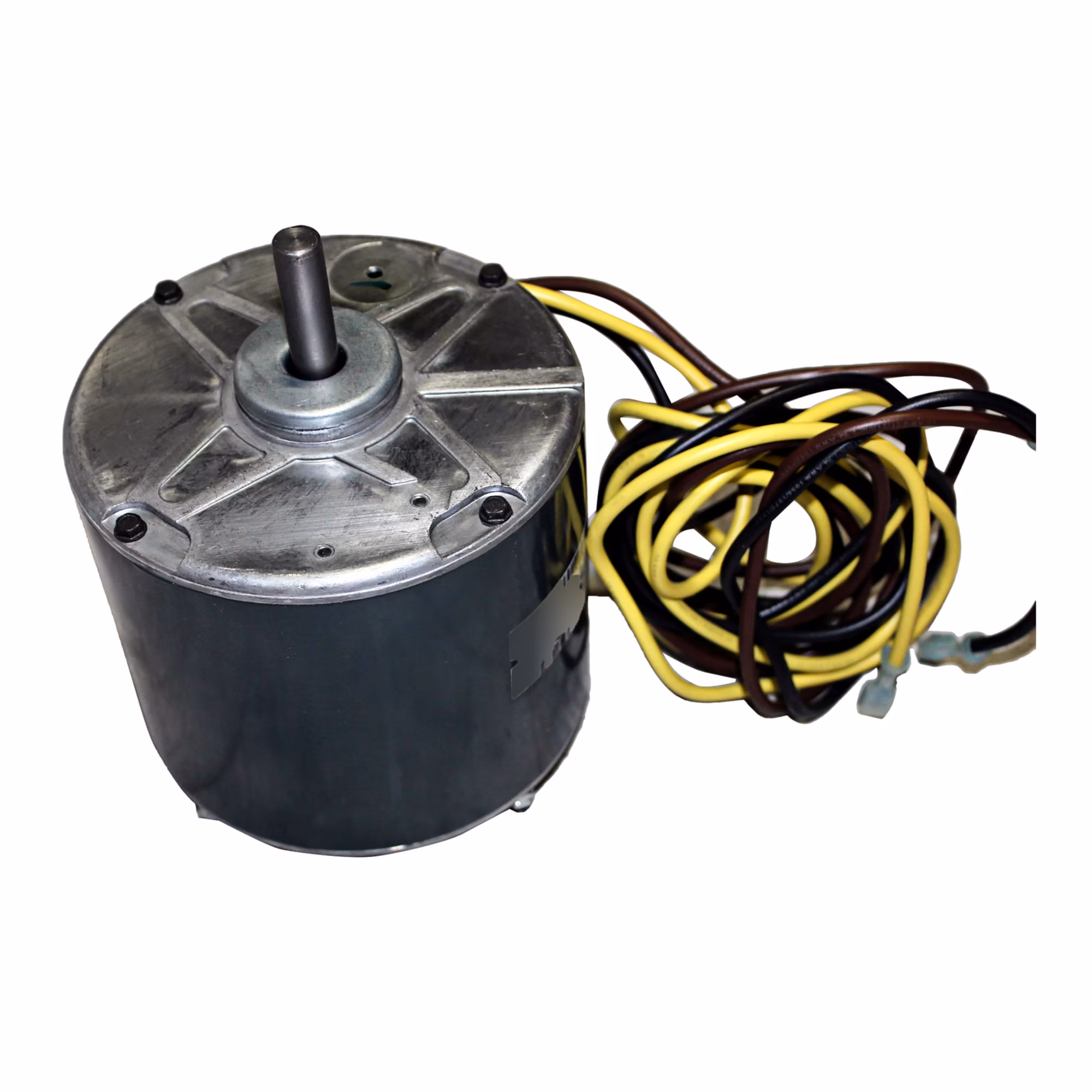

Factory Authorized Parts™ – HC39GE241 Condenser Fan Motor
| Attributes | |
|---|---|
| Amps | 1.9 |
| Approvals | CSA Listed |
| Brand | Factory Authorized Parts |
| Country of Origin | MEX |
| Cubic Measurement | 0.1549 |
| Cycle/Hertz | 60 Hz |
| Dimensional Weight | 5 |
| Duty | (S1) Continuous Running Duty |
| Full Load Amps | 1.9 |
| GTIN | 00662442802934 |
| Insulation Class | B |
| Motor HP | 1/3 |
| Motor Type | PSC (Permanent Split Capacitor) |
| Mounting Type | Vertical Shaft Down |
| NEMA Frame | 48 |
| Number of Speeds | 1 |
| Phase | Single |
| Prop 65 | NO |
| Protection | No |
| RPM | 1,110 |
| Rotation | Clockwise (CW) |
| Shaft Diameter | 0.5″ (1/2″) |
| Shaft Length | 1.5″ |
| UOM | EA |
| UPC | 662442802934 |
| Voltage | 208-230 VAC |
