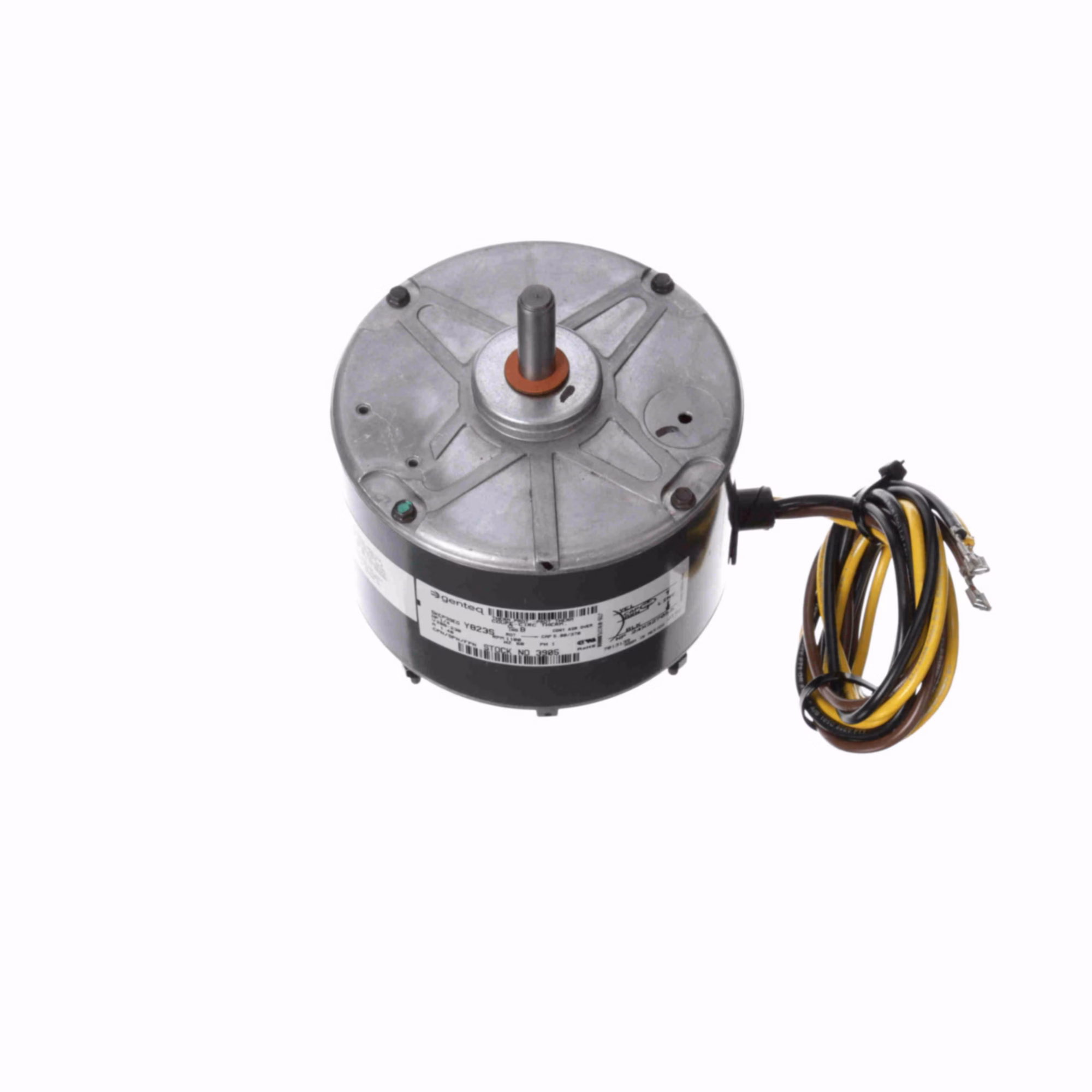

Factory Authorized Parts – HC39GE238 Condenser Motor 1/4 HP 208/230V 1.7 Amp 1100 RPM – E:Mail: sales@walkair.us to confirm availability or for volume discounts
When looking for replacement motors, look no further than our Factory Authorized Parts (FAP)! FAP are designed to meet exact Carrier® Corporation specifications, ensuring optimum system performance, proven reliability, easy installation and maintenance and safe system operation.
FAP Features
- Improved Efficiency – Motor runs at most efficient portion of motor performance curve by design
- Ensures motor is not overloaded
- Ensures that motor operates at the design RPM, which produces the correct airflow
- Reduced System Vibration – System design put motor RPM at optimal point for limiting torque pulsations that can generate excess vibration in the unit
- Reduced Noise – System qualification includes additional testing such as start/stop and pure tone noise identification which further ensures there is not excessive vibration or noise during unit operation.
- Overall length of motor assures that fan is located at intended position to minimize sound
| Attributes | |
|---|---|
| Amps | 1.7 |
| Approvals | CSA Listed |
| Basis Of Rotation View | Lead End |
| Bearing Type | Sleeve |
| Brand | Factory Authorized Parts |
| Country of Origin | VNM |
| Cubic Measurement | 0.1764 |
| Cycle/Hertz | 60 Hz |
| Dimensional Weight | 5 |
| Duty | (S1) Continuous Running Duty |
| Full Load Amps | 1.5 |
| GTIN | 00662441441752 |
| Insulation Class | B |
| Motor HP | 1/4 |
| Motor Type | PSC (Permanent Split Capacitor) |
| Mounting Type | Stud |
| NEMA Frame | 48 |
| Number of Speeds | 1 |
| Phase | Single |
| Prop 65 | NO |
| Protection | No |
| RPM | 1,100 |
| Rotation | Clockwise (CW) |
| Shaft Diameter | 0.5″ (1/2″) |
| Shaft Length | 2″ |
| UOM | EA |
| UPC | 662441441752 |
| Voltage | 208-230 VAC |
