Description

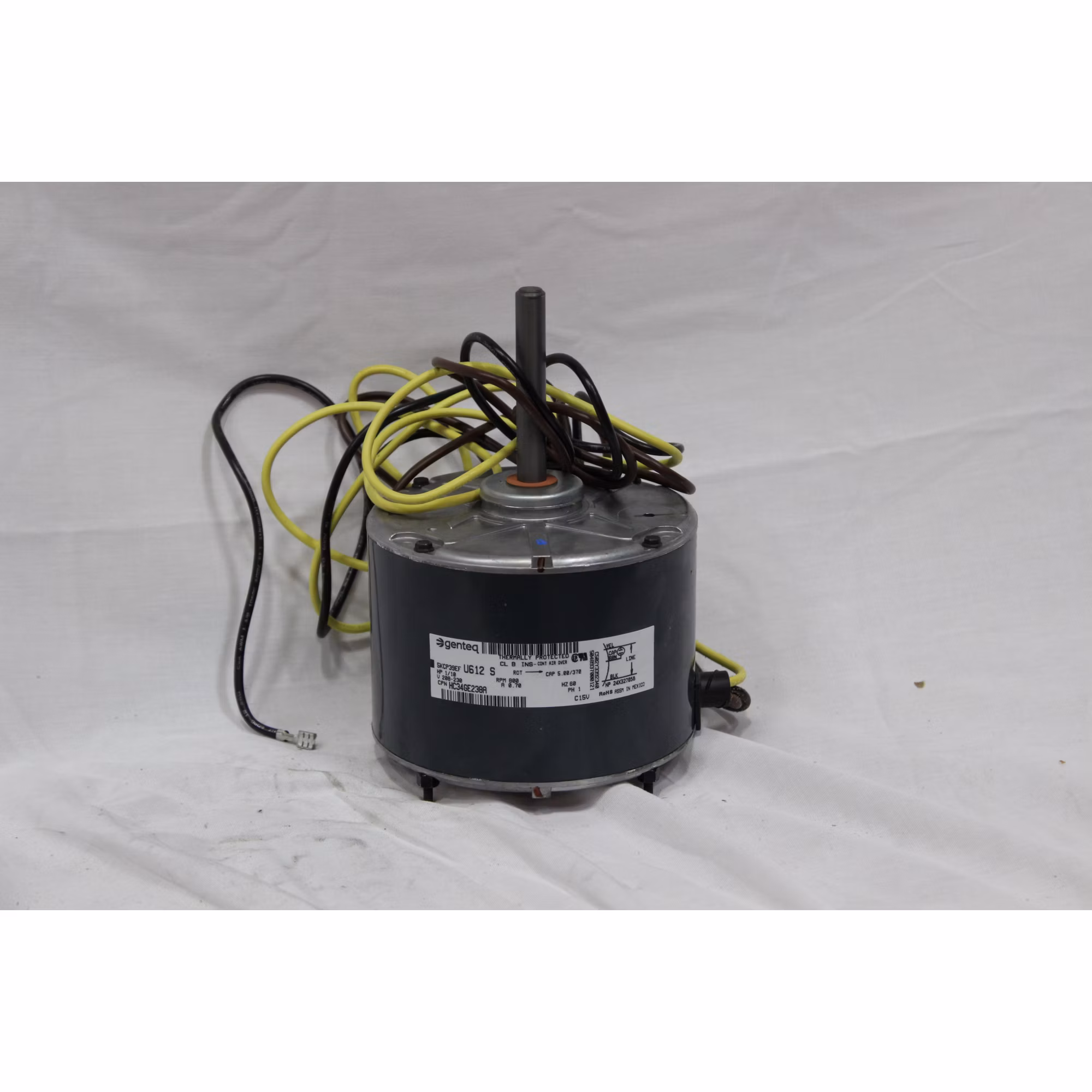

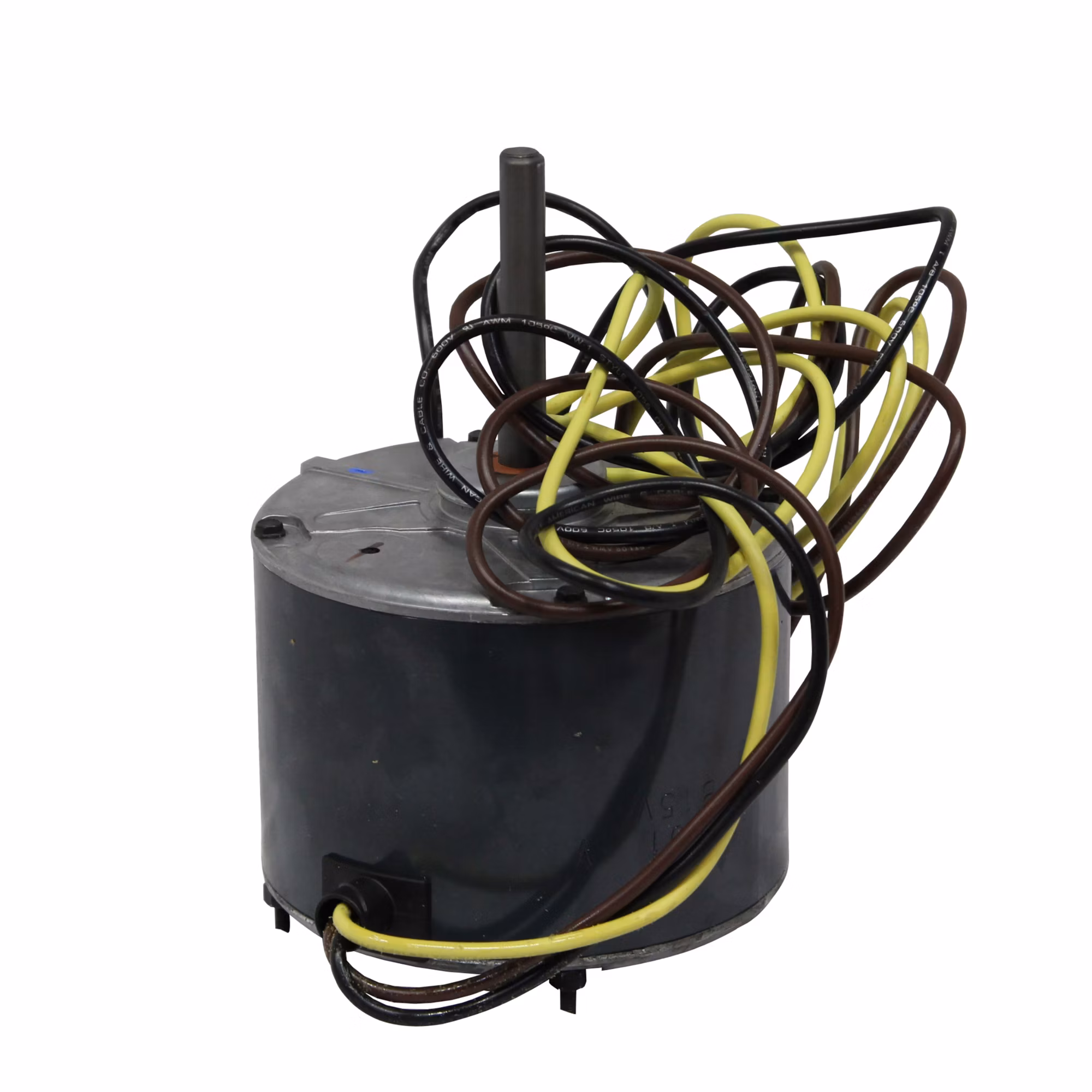

Factory Authorized Parts – HC34GE238 Condenser Fan Motor 1/10 HP 1 Phase – E:Mail: sales@walkair.us to confirm availability or for volume discounts
Factory Authorized Parts™ – HC34GE238 Motor 1/10 HP
| Attributes | |
|---|---|
| Amps | 0.7 |
| Approvals | CSA Listed; UL Recognized |
| Brand | Factory Authorized Parts |
| Capacitor MFD (µF) | 5 |
| Country of Origin | CHN |
| Cubic Measurement | 0.1504 |
| Cycle/Hertz | 60 Hz |
| Dimensional Weight | 5 |
| Duty | (S1) Continuous Running Duty |
| GTIN | 00662442910677 |
| Insulation Class | B |
| Motor HP | 1/10 |
| Motor Type | PSC (Permanent Split Capacitor) |
| NEMA Frame | 48 |
| Number of Speeds | 1 |
| Phase | Single |
| Prop 65 | NO |
| Protection | Yes |
| RPM | 800 |
| Rotation | Clockwise (CW) |
| Shaft Diameter | 0.5″ (1/2″) |
| Shaft Length | 4″ |
| UOM | EA |
| UPC | 662442910677 |
| Voltage | 208-230 VAC |
