Description

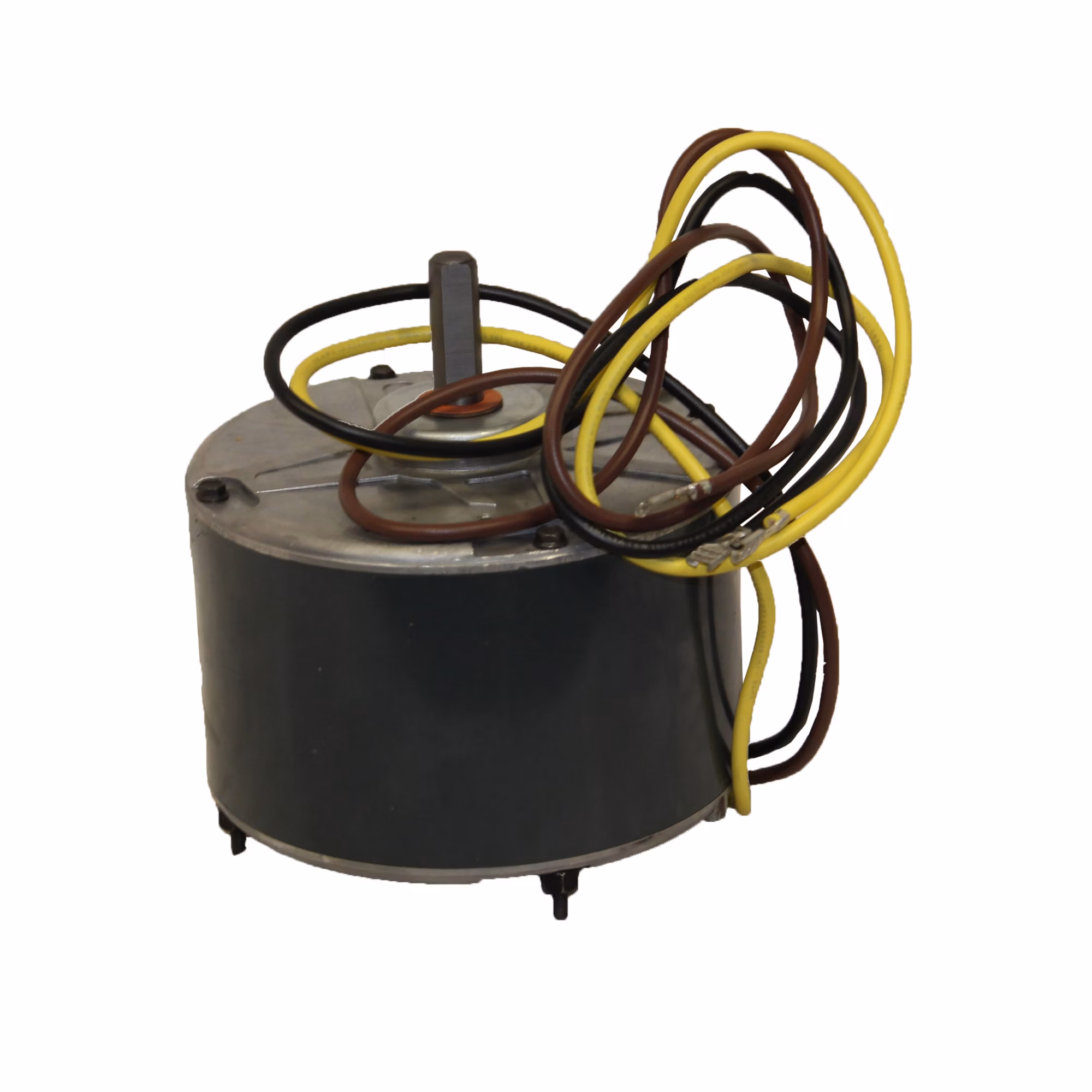

Factory Authorized Parts – HC33GE208 Condenser Fan Motor 1/6 HP 1500 RPM 60 HZ 208-230 Volt – E:Mail: sales@walkair.us to confirm availability or for volume discounts
Factory Authorized Parts? – HC33GE208 Condenser Fan Motor 1/6 HP 1500 RPM 60 HZ 208-230 Volt
Factory Authorized Parts are designed to meet exact Carrier? Corporation specifications ensuring optimum system performance, proven reliability, easy installation and maintenance, and safe system operation.
| Attributes | |
|---|---|
| Amps | 0.9 |
| Approvals | CSA Listed; UL Recognized |
| Bearing Type | Sleeve |
| Brand | Factory Authorized Parts |
| Capacitor MFD (?F) | 5 |
| Country of Origin | MEX |
| Cubic Measurement | 0.1125 |
| Cycle/Hertz | 60 Hz |
| Dimensional Weight | 5 |
| Duty | (S1) Continuous Running Duty |
| Full Load Amps | 0.9 |
| GTIN | 00662441414657 |
| Insulation Class | B |
| Motor Enclosure | Totally Enclosed Air Over (TEAO) |
| Motor HP | 1/6 |
| Motor Type | PSC (Permanent Split Capacitor) |
| Mounting Type | Verticle Shaft Down |
| NEMA Frame | 48 |
| Number of Speeds | 1 |
| Phase | Single |
| Prop 65 | NO |
| Protection | Yes |
| RPM | 1,500 |
| Rotation | Clockwise (CW) |
| Shaft Diameter | 0.5″ (1/2″) |
| Shaft Length | 1-1/2″ |
| UOM | EA |
| UPC | 662441414657 |
| Voltage | 115/230/277 VAC |
