Description
Factory Authorized Parts – HC30GR230 Induced Draft Motor – E:Mail: sales@walkair.us to confirm availability or for volume discounts

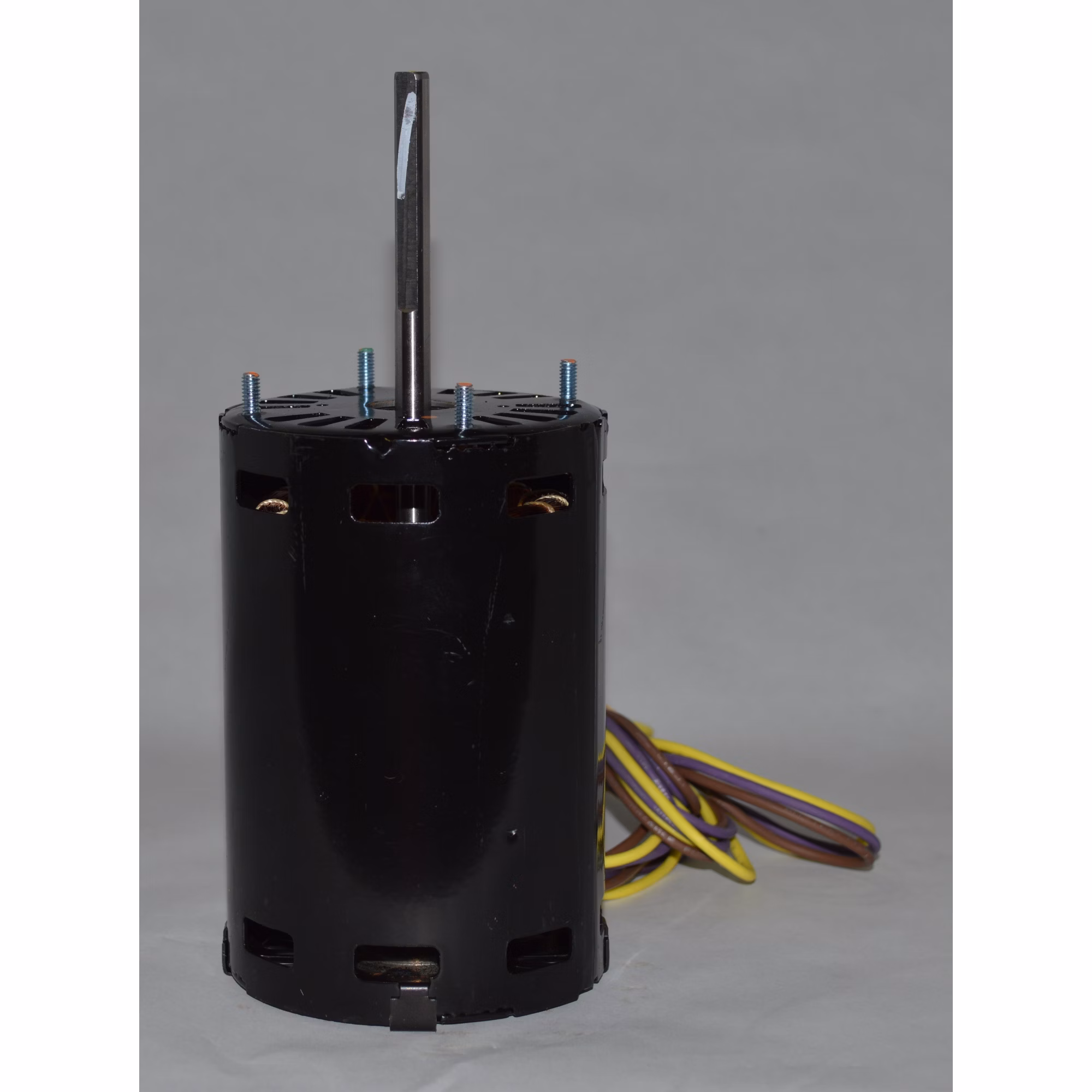

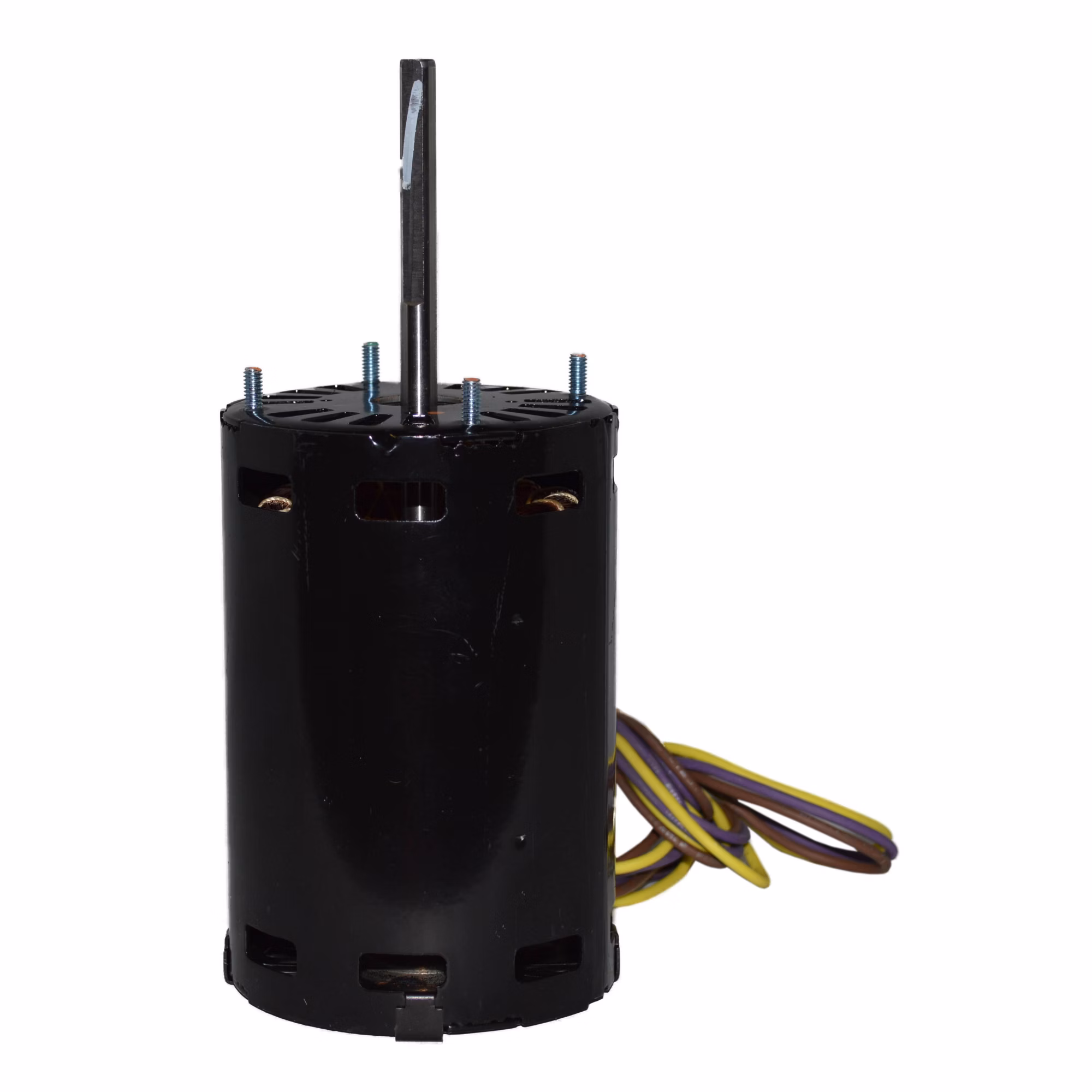

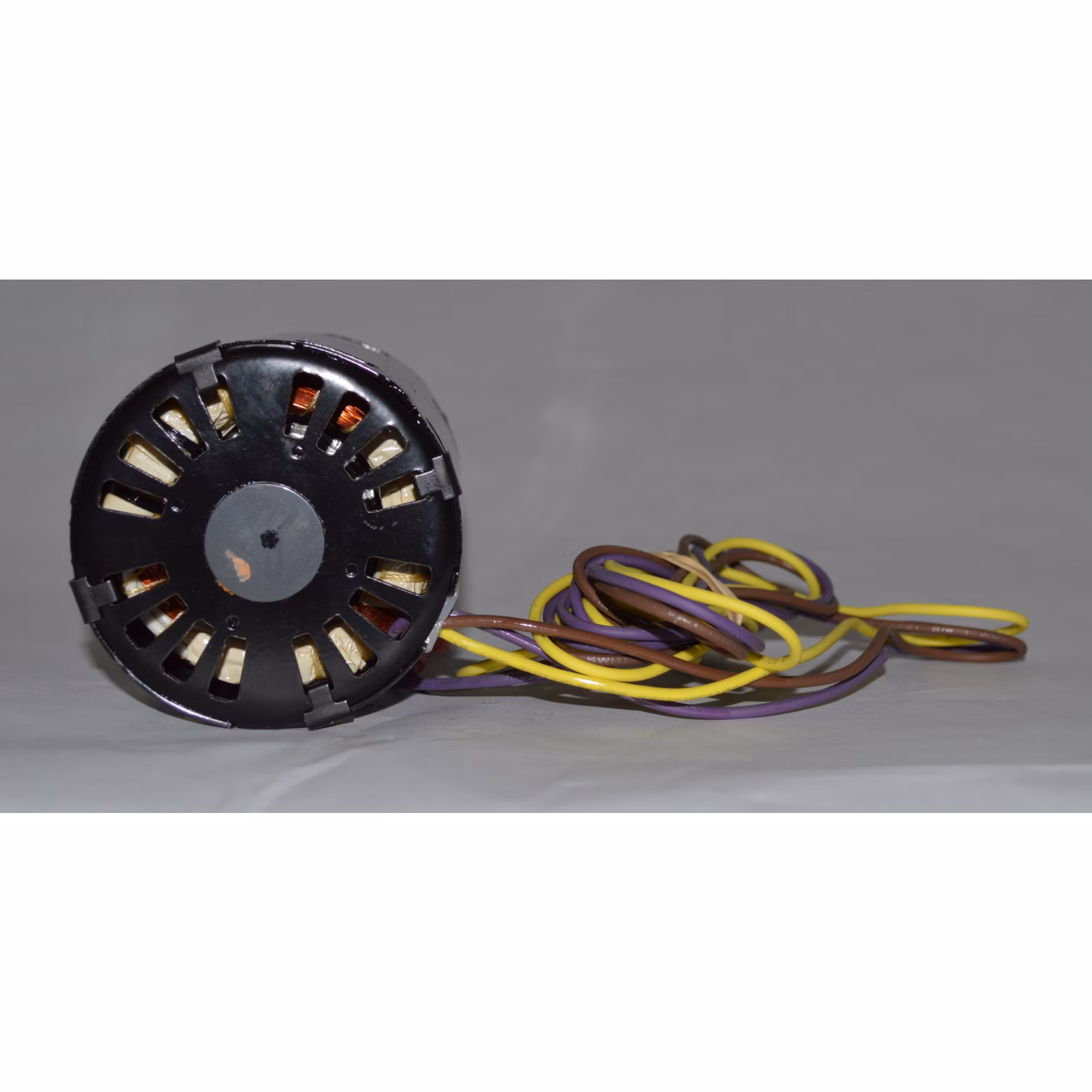

Factory Authorized Parts™ – HC30GR230 Induced Draft Motor
| Attributes | |
|---|---|
| Amps | 0.43-0.47 |
| Approvals | CSA Listed |
| Basis Of Rotation View | Lead End |
| Bearing Type | Ball |
| Brand | Factory Authorized Parts |
| Country of Origin | MEX |
| Cubic Measurement | 0.2536 |
| Cycle/Hertz | 60 Hz |
| Dimensional Weight | 3 |
| GTIN | 00822529722146 |
| Insulation Class | B |
| Motor Enclosure | Open |
| Motor HP | 1/16 |
| Mounting Type | Weld Stud |
| Phase | Single |
| Prop 65 | NO |
| RPM | 3,450 |
| Rotation | Clockwise (CW) |
| Shaft Diameter | 0.3125″ (5/16″) |
| Shaft Length | 2.9″ |
| UOM | EA |
| UPC | 822529722146 |
| Voltage | 208-230 VAC |
