Factory Authorized Parts – HC30CL461 Induced Draft Motor 1/16 HP 460V – E:Mail: sales@walkair.us to confirm availability or for volume discounts

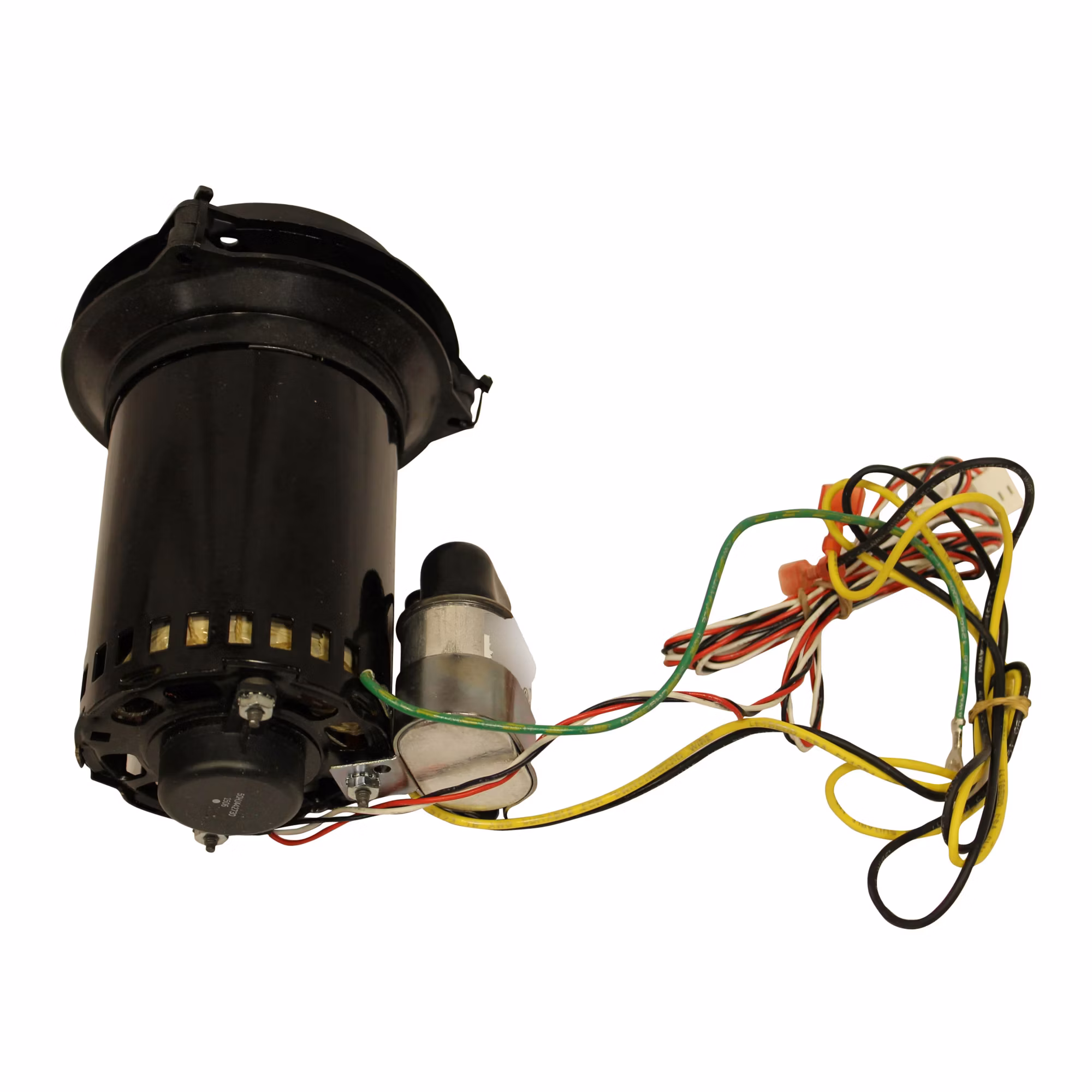

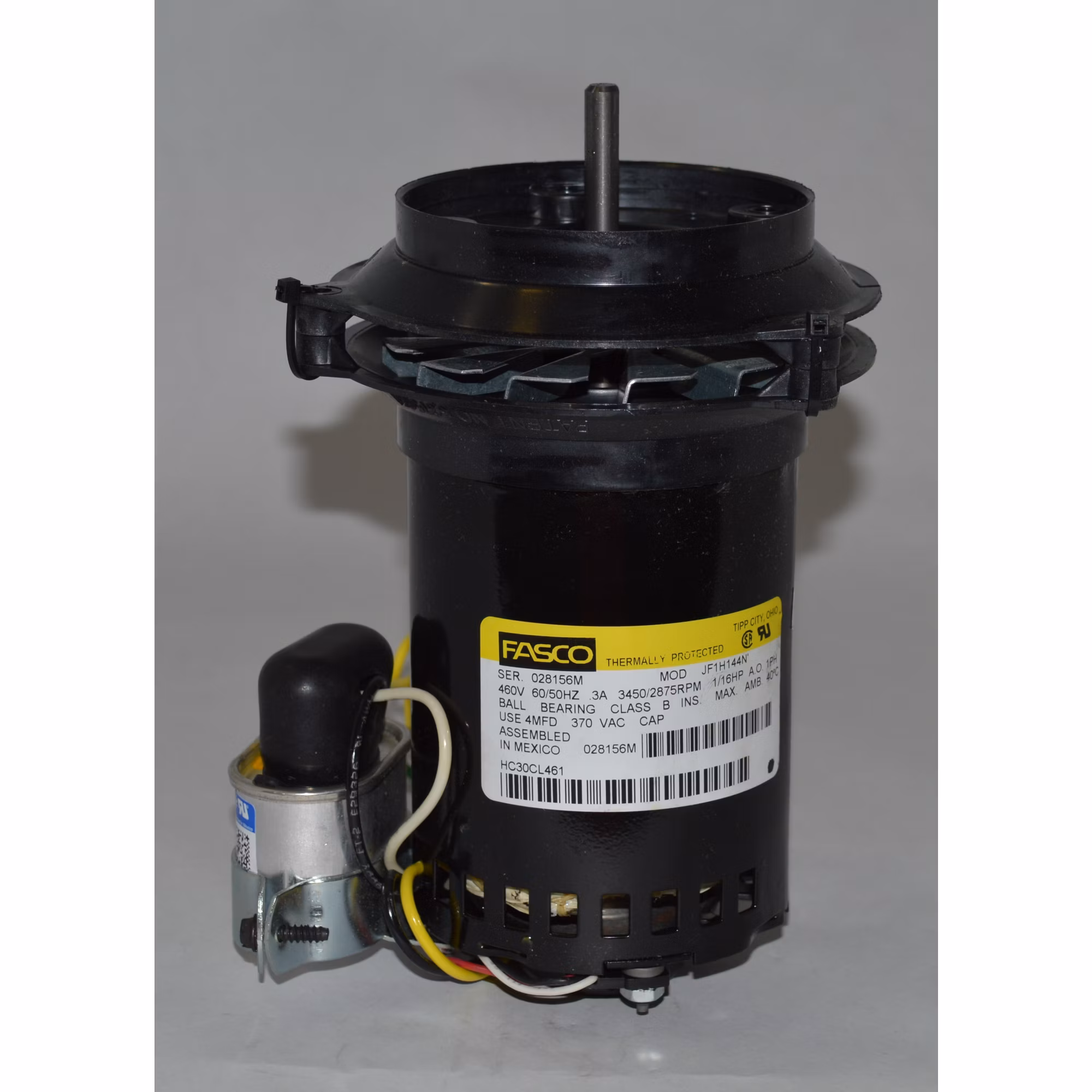

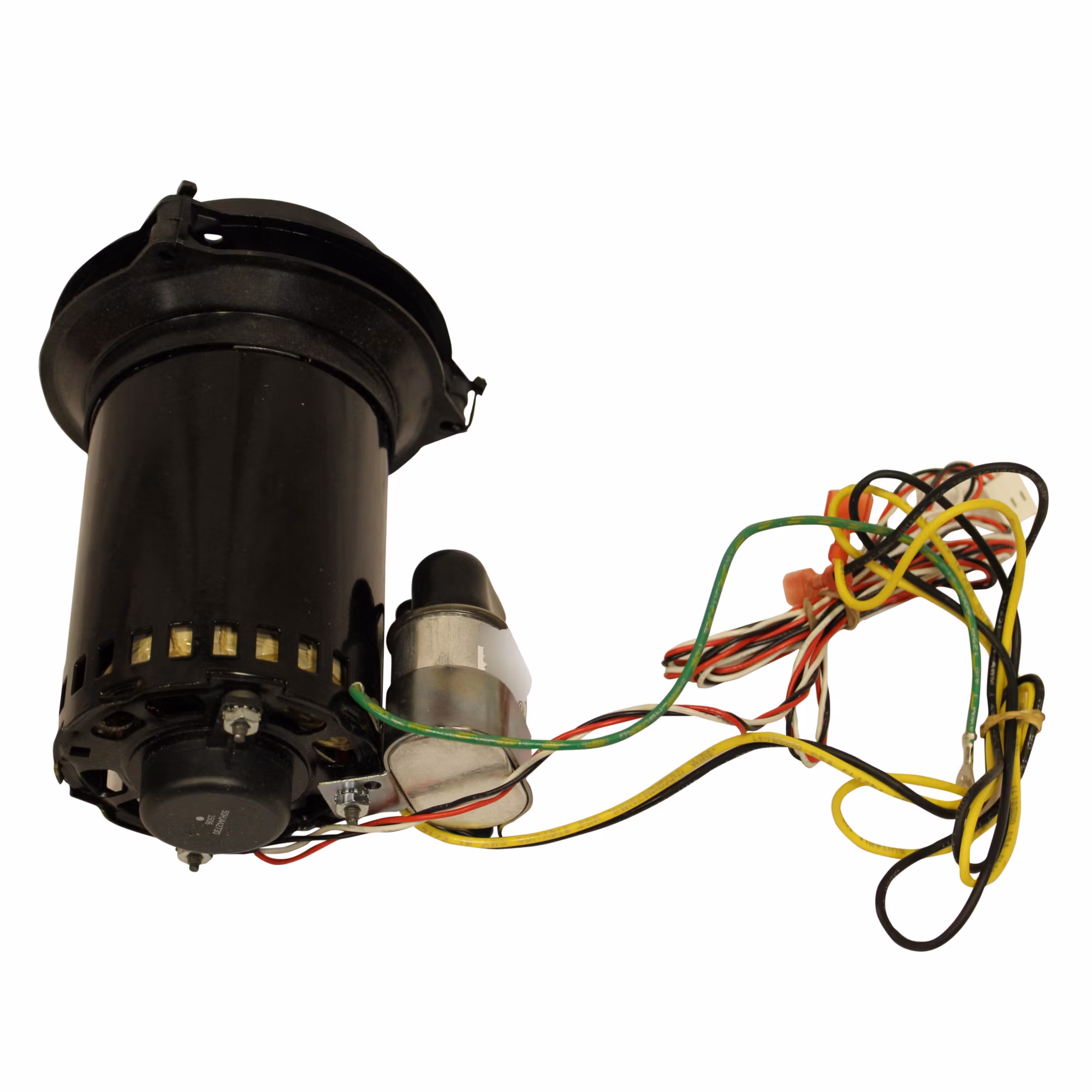

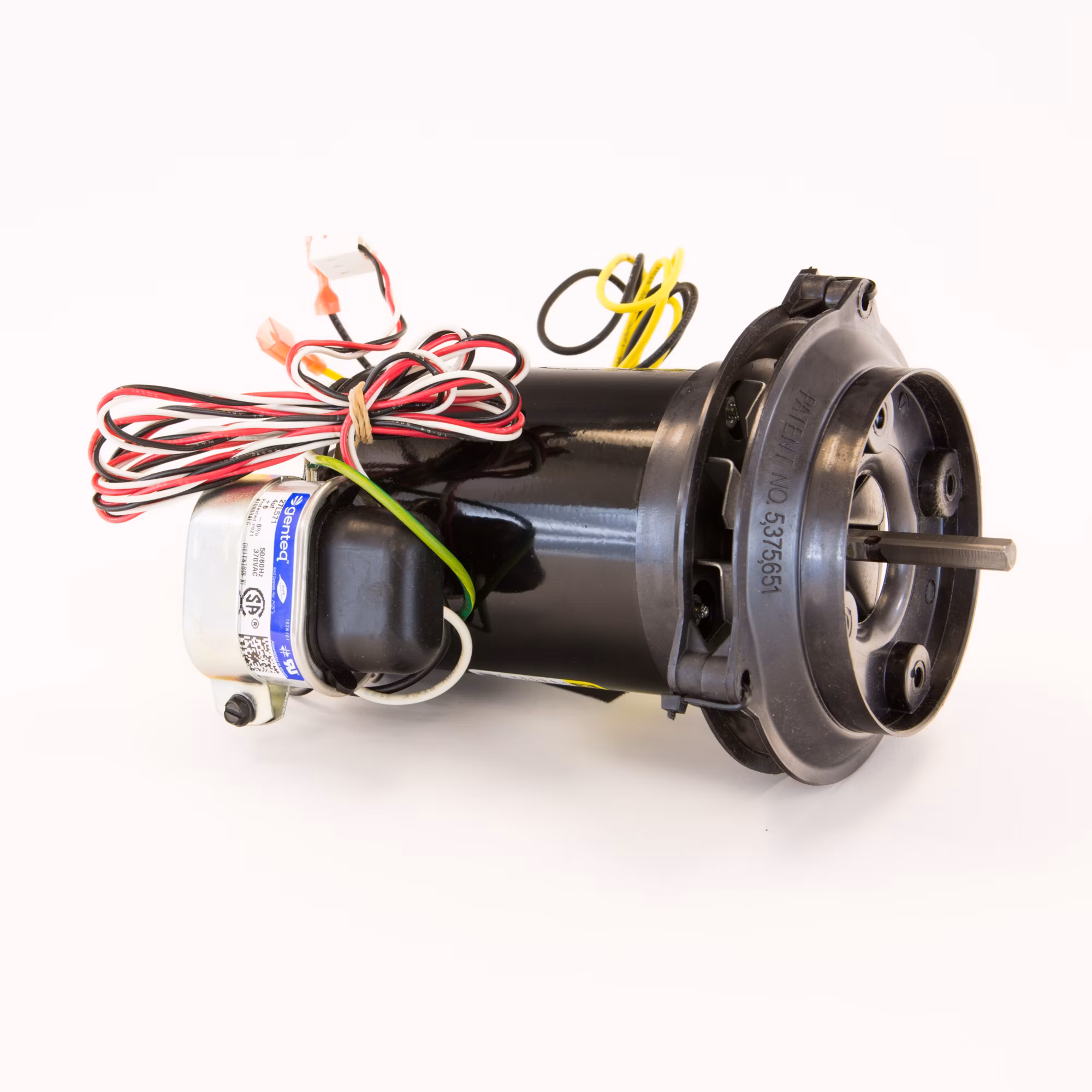

Factory Authorized Parts? – HC30CL461 Induced Draft Motor 1/16 HP 460V
Factory Authorized Parts are designed to meet exact Carrier? Corporation specifications, ensuring optimum system performance, proven reliability, easy installation and maintenance and safe system operation.
| Attributes | |
|---|---|
| Amps | 0.3 |
| Approvals | CSA Listed; UL Recognized |
| Basis Of Rotation View | Lead End |
| Bearing Type | Ball |
| Brand | Factory Authorized Parts |
| Country of Origin | MEX |
| Cubic Measurement | 0.1545 |
| Cycle/Hertz | 60 Hz |
| Dimensional Weight | 4 |
| GTIN | 00822529278568 |
| Insulation Class | B |
| Motor Enclosure | Open |
| Motor HP | 1/6 |
| Mounting Type | Thru-Bolt |
| Phase | Single |
| Prop 65 | NO |
| RPM | 3,450 |
| Rotation | Counter Clockwise (CCW) |
| Shaft Diameter | 0.3125″ (5/16″) |
| Shaft Length | 2.9″ |
| UOM | EA |
| UPC | 822529278568 |
| Voltage | 460 VAC |
