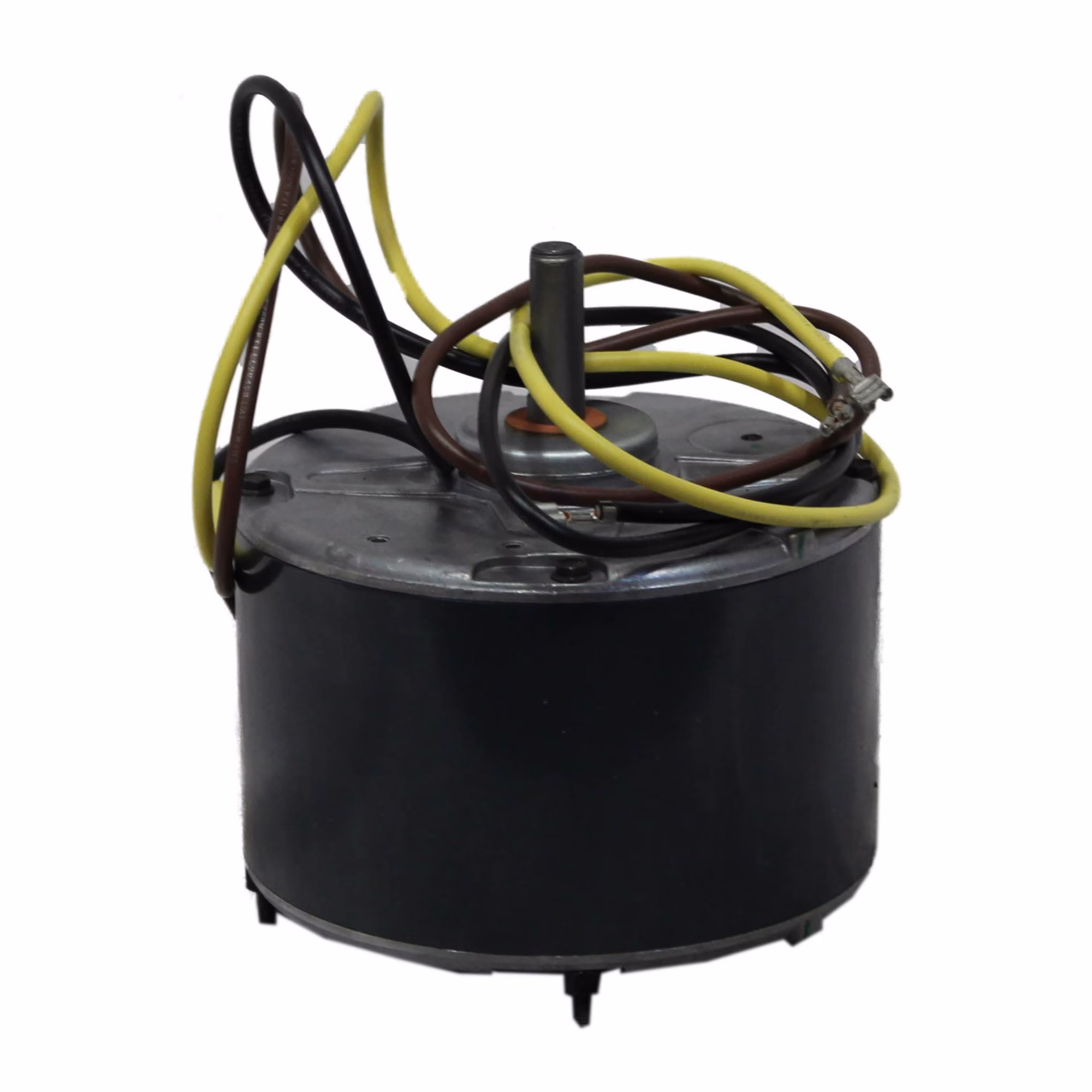

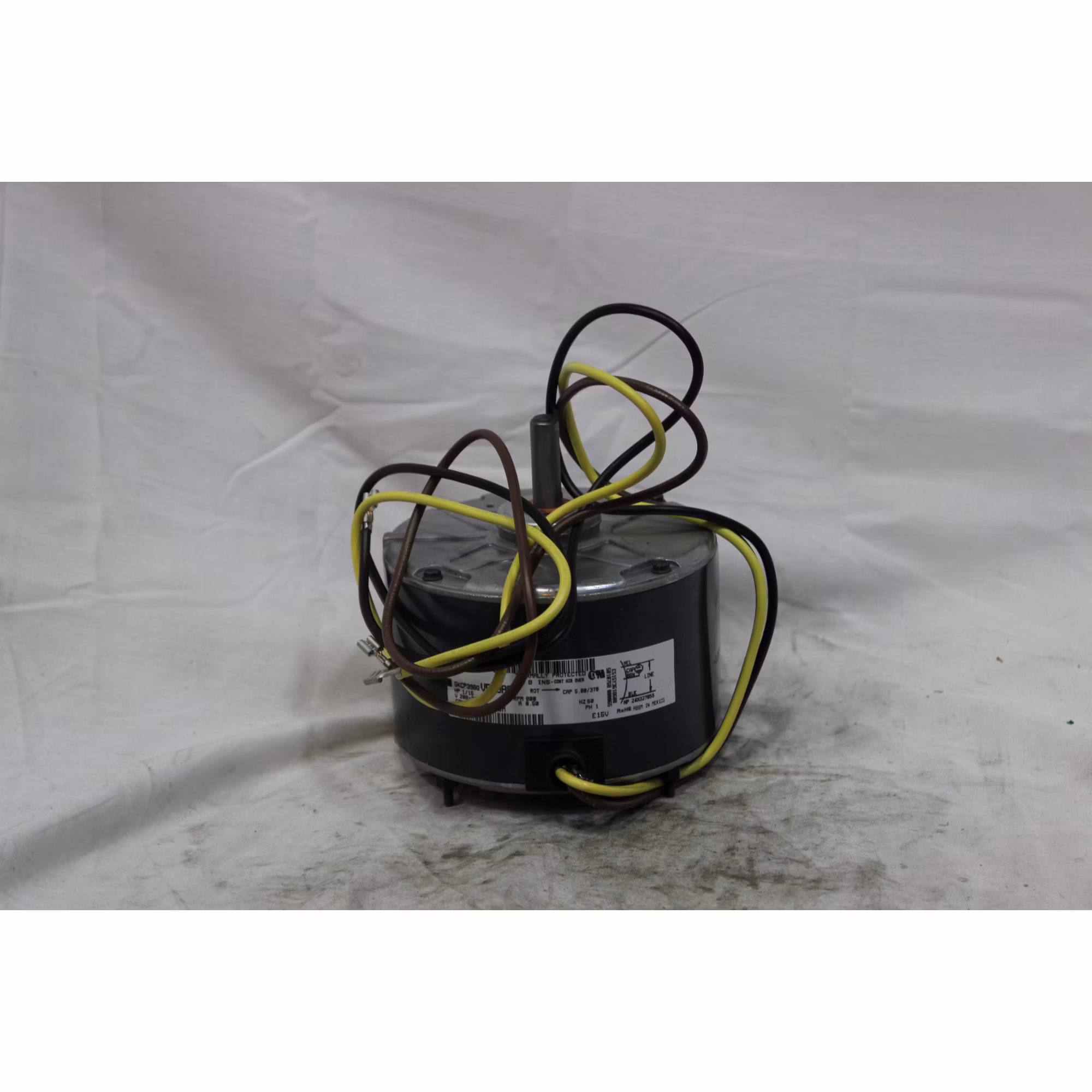

Factory Authorized Parts – HC29GE209 Condenser Fan Motor, 1/15 HP, 208/230 VAC, 800 RPM, 1PZ – E:Mail: sales@walkair.us to confirm availability or for volume discounts
Factory Authorized Parts? – HC29GE209 Condenser Fan Motor, 1/15 HP, 208/230 VAC, 800 RPM, 1PZ
Factory Authorized Parts are designed to meet exact Carrier? Corporation specifications, ensuring optimum system performance, proven reliability, easy installation and maintenance and safe system operation.
| Attributes | |
|---|---|
| Approvals | CSA Listed; UL Recognized |
| Bearing Type | Sleeve |
| Brand | Factory Authorized Parts |
| Country of Origin | IND |
| Cubic Measurement | 0.13 |
| Cycle/Hertz | 60 Hz |
| Dimensional Weight | 5 |
| Duty | (S1) Continuous Running Duty |
| GTIN | 00662441422492 |
| Insulation Class | B |
| Motor HP | 1/15 |
| Motor Type | PSC (Permanent Split Capacitor) |
| NEMA Frame | 48 |
| Phase | Single |
| Prop 65 | NO |
| RPM | 800 |
| Rotation | Clockwise (CW) |
| Shaft Diameter | 0.5″ (1/2″) |
| Shaft Length | 1.5″ |
| UOM | EA |
| UPC | 662441422492 |
| Voltage | 208-230 VAC |
