Description
Factory Authorized Parts – HB39GQ231 – Fan Motor 1/4HP – E:Mail: sales@walkair.us to confirm availability or for volume discounts

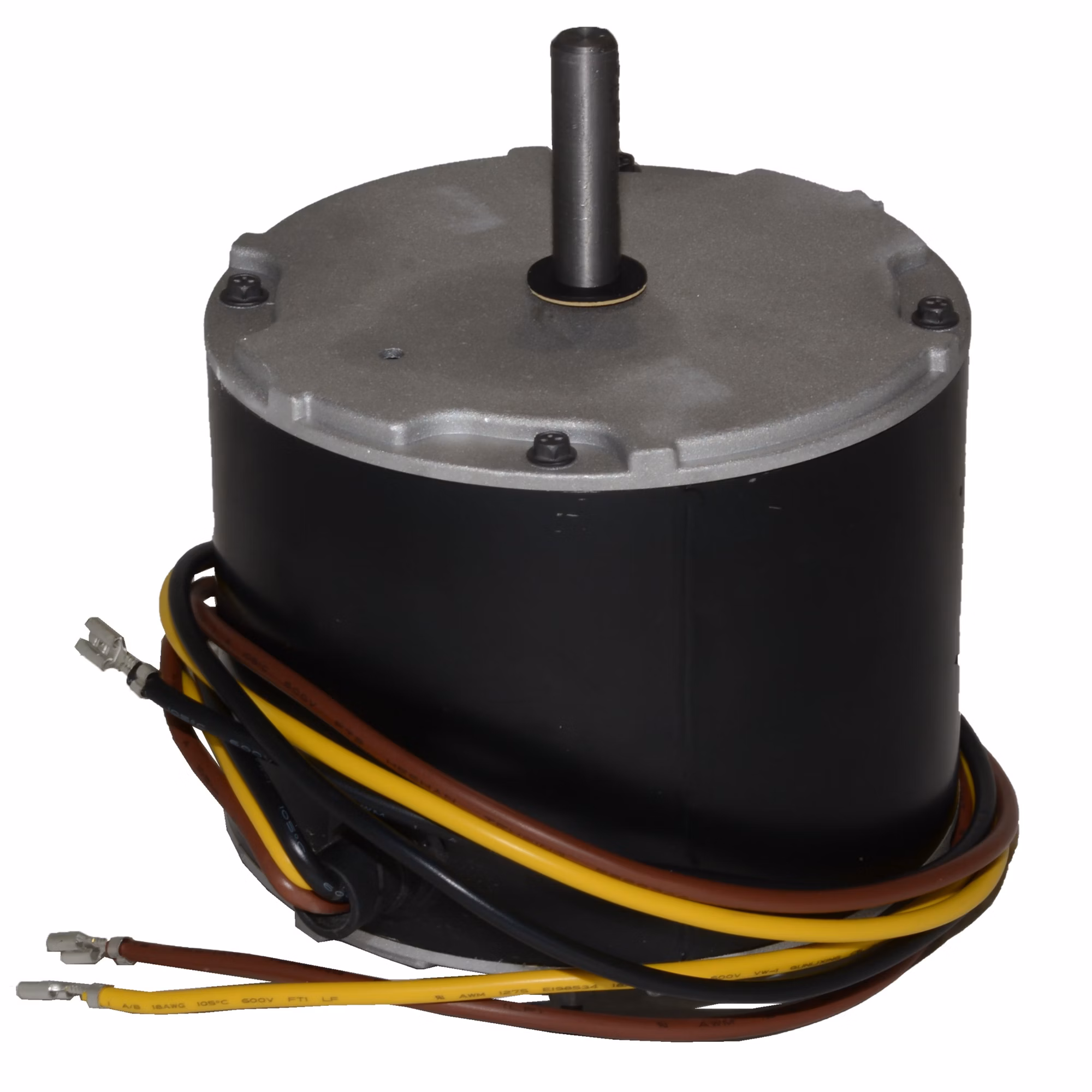

Factory Authorized Parts™ – HB39GQ231 – Fan Motor 1/4HP
Factory Authorized Parts are designed to meet exact Carrier® Corporation specifications, ensuring optimum system performance, proven reliability, easy installation and maintenance and safe system operation.
| Attributes | |
|---|---|
| Amps | 1.3 |
| Brand | Factory Authorized Parts |
| Country of Origin | VNM |
| Cubic Measurement | 0.2951 |
| Cycle/Hertz | 50/60 Hz |
| Duty | (S1) Continuous Running Duty |
| Full Load Amps | 1.4 |
| GTIN | 00822529958071 |
| Insulation Class | B |
| Motor HP | 1/4 |
| Motor Type | PSC (Permanent Split Capacitor) |
| Mounting Type | Belly Band |
| NEMA Frame | 48 |
| Number of Speeds | 1 |
| Phase | Single |
| Prop 65 | NO |
| Protection | Yes |
| RPM | 1,100 |
| Rotation | Counter Clockwise (CCW) |
| Shaft Diameter | 0.5″ (1/2″) |
| Shaft Length | 1.5″ |
| UPC | 822529958071 |
| Voltage | 208-230 VAC |
