Description
Factory Authorized Parts – CRPQ-045E-TF5-970 – Compressor – E:Mail: sales@walkair.us to confirm availability or for volume discounts

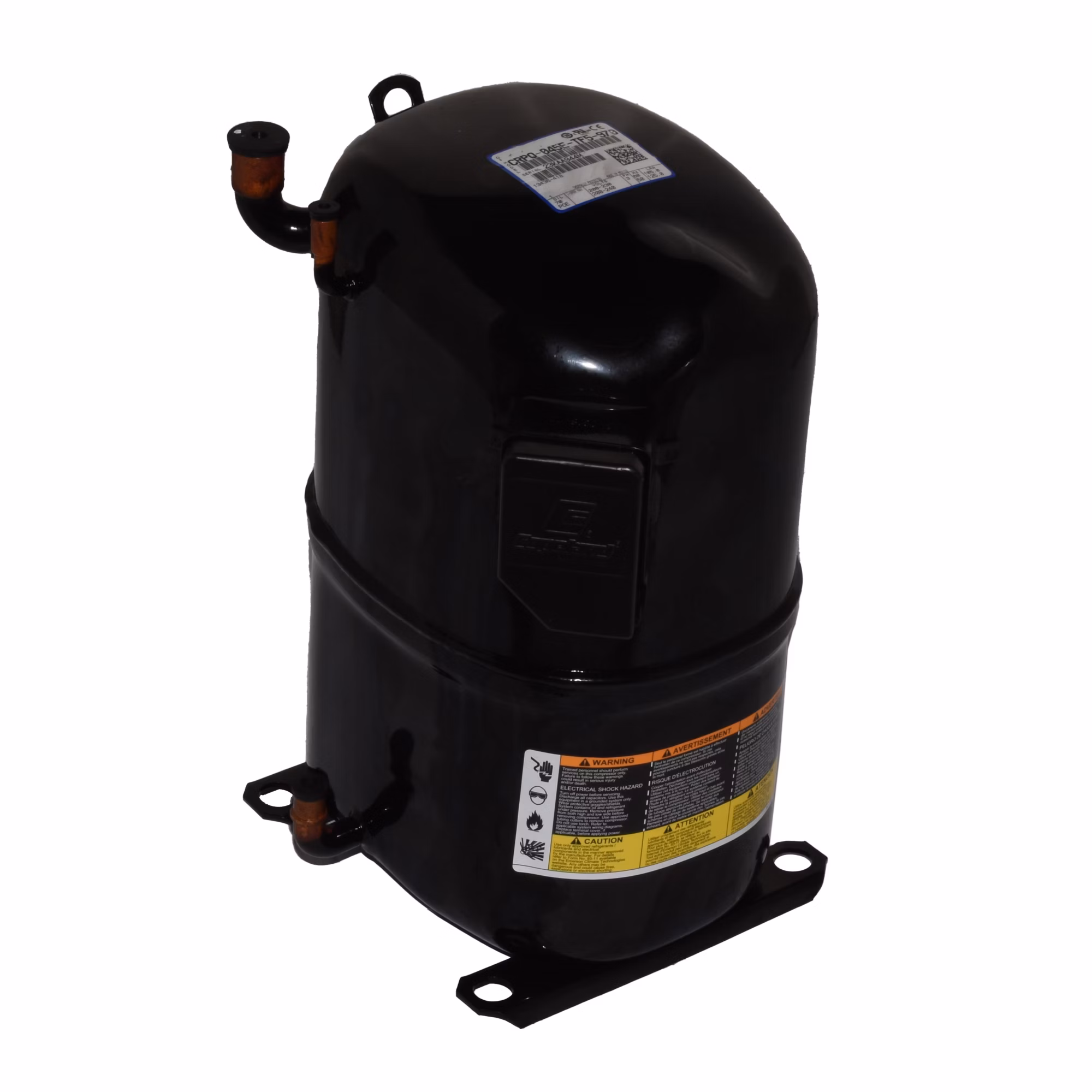

Factory Authorized Parts™ – CRPQ-045E-TF5-970 – Compressor
| Attributes | |
|---|---|
| Amps | 13.2-16.1 |
| BTU Output | 57,000-72,000 |
| Brand | Copeland |
| Compressor Housing | Hermetic |
| Compressor Type | Reciprocating |
| Country of Origin | MEX |
| Cubic Measurement | 2.2569 |
| Cycle/Hertz | 50/60 Hz |
| Dimensional Weight | 29 |
| Discharge Connection Size OD | 1/2″ |
| Discharge Connection Type | Stub |
| Evaporating Temperature | 45°F (7.22°C) |
| GTIN | 00822529608600 |
| Locked Rotor Amps (LRA) | 105 |
| Mass Flow (lbs/hr) | 835 lbs./hr.; 930 lbs./hr. |
| Mounting Dimensions | 7.5″ x 7.5″ x 16.25″ |
| OPT Code | CRPQ-045E-TF5-970 |
| Oil Charge Initial (oz.) | 70 |
| Oil Type | Polyolester (POE) |
| Phase | Three |
| Prop 65 | NO |
| Protection | Yes |
| Rated Load Amps (RLA) | 17.6, 19.6 |
| Refrigerant | R-22 |
| Return Gas Temperature | 65°F (18.33°C) |
| Suction Line Fitting Type | Sweat or Braze |
| Suction Line Size (OD) | 7/8″ |
| UOM | EA |
| UPC | See Optical |
| Voltage | 200/230 VAC |
