Description

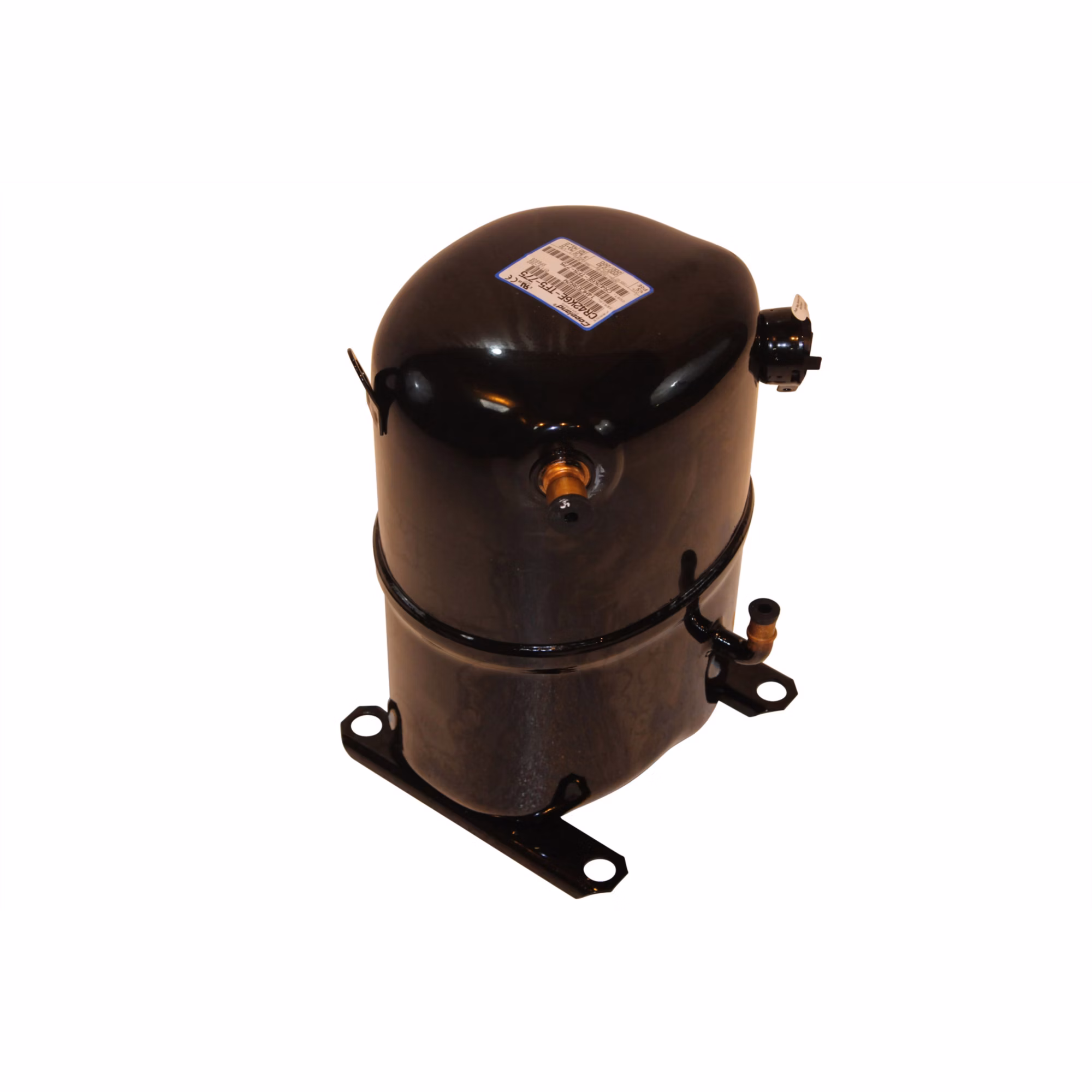

Factory Authorized Parts – CR42K6E-TF5-775 Compressor – E:Mail: sales@walkair.us to confirm availability or for volume discounts
Reciprocating or Hermetic Compressor for R-22 Refrigerant
Features:
- External line break overload
- Low noise & vibration levels
- Lightweight
- POE Oil
| Attributes | |
|---|---|
| Amps | 14 |
| BTU Output | 41,700 |
| Brand | Copeland |
| Compressor Housing | Hermetic |
| Compressor Type | Reciprocating |
| Condensing Temperature | 100°F to 130°F (37.78°C to 54.44°C) |
| Country of Origin | MEX |
| Cubic Measurement | 0.6326 |
| Cycle/Hertz | 50/60 Hz |
| Dimensional Weight | 32 |
| Discharge Connection Size OD | 1/2″ |
| Discharge Connection Type | Stub |
| Displacement | 4.4 (in^3/Rev) |
| Evaporating Temperature | 45°F (7.22°C) |
| Liquid Temperature | 85°F (29.44°C); 115°F (46.11°C) |
| Locked Rotor Amps (LRA) | 91 |
| Mass Flow (lbs/hr) | 610 lbs./hr.; 700 lbs./hr. |
| Mounting Dimensions | 7.5″ X 7.5″ |
| Oil Charge Initial (oz.) | 45 |
| Oil Type | Mineral (MO) or Polyolester (POE) |
| Phase | Three |
| Prop 65 | NO |
| Protection | Yes |
| Rated Load Amps (RLA) | 14 |
| Refrigerant | R-22 |
| Return Gas Temperature | 65°F (18.33°C) |
| Sound Level (dBA) | 76-81 |
| Suction Line Fitting Type | Stub |
| Suction Line Size (OD) | 3/4″ |
| UOM | EA |
| Voltage | 200/230 VAC |
