Description
Factory Authorized Parts – CR42K6E-PFV-775 Compressor R-22 – E:Mail: sales@walkair.us to confirm availability or for volume discounts

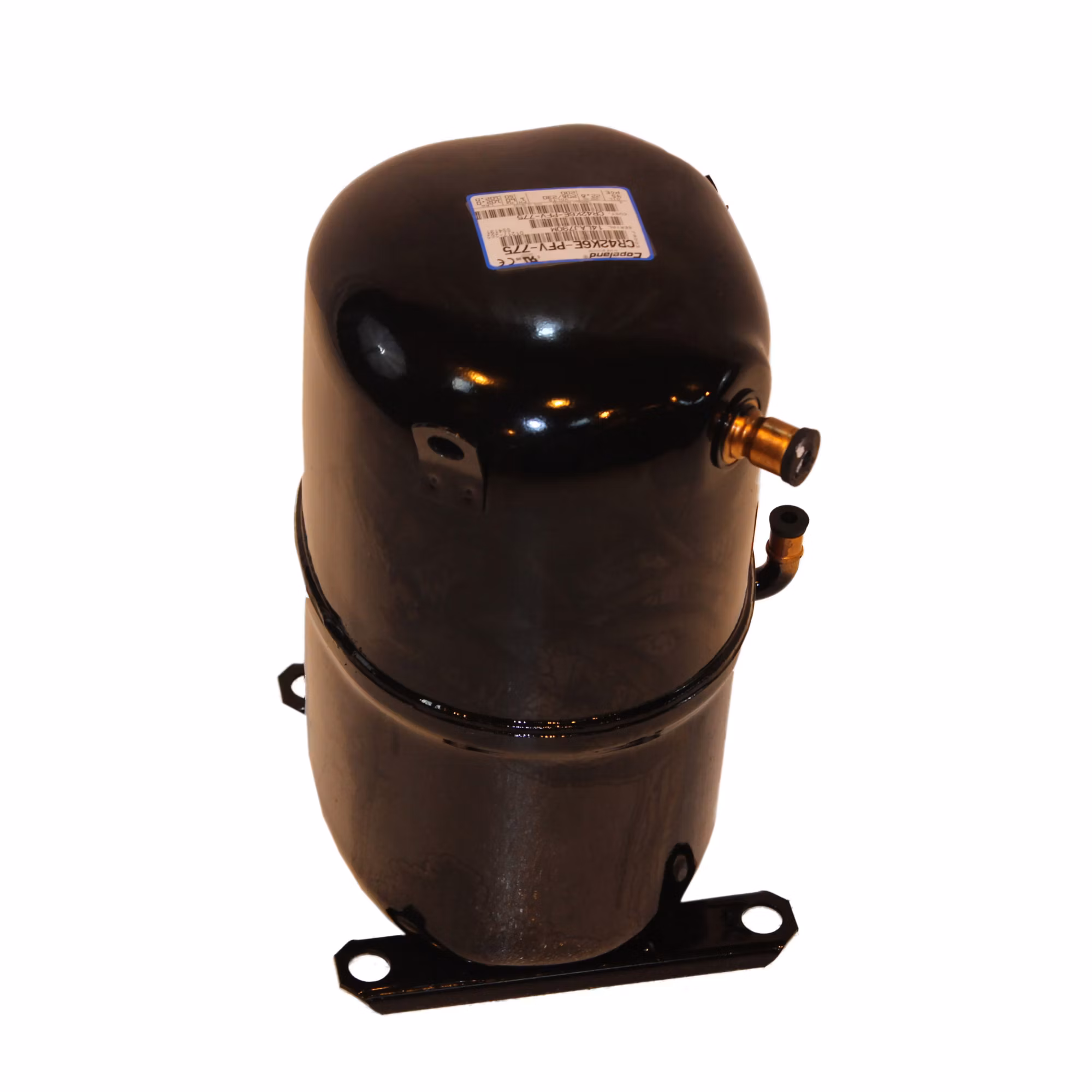

Factory Authorized Parts™ – CR42K6E-PFV-775 Reciprocating / Hermetic Compressor for R-22 Refrigerant
| Attributes | |
|---|---|
| Amps | 20.4 |
| BTU Output | 39,500 |
| Brand | Copeland |
| Compressor Housing | Hermetic |
| Compressor Type | Reciprocating |
| Country of Origin | MEX |
| Cubic Measurement | 0.7575 |
| Cycle/Hertz | 60 Hz |
| Dimensional Weight | 33 |
| Discharge Connection Size OD | 1/2″ |
| Evaporating Temperature | 45°F (7.22°C) |
| GTIN | 00822529608655 |
| Locked Rotor Amps (LRA) | 102 |
| Mass Flow (lbs/hr) | 574 lbs./hr.; 664 lbs./hr. |
| Mounting Dimensions | 7.5″ x 7.5″ x 14.94″ |
| OPT Code | cr42k6e-pfv-775 |
| Oil Charge Initial (oz.) | 45 |
| Oil Type | Polyolester (POE) |
| Phase | Single |
| Prop 65 | NO |
| Protection | Yes |
| Rated Load Amps (RLA) | 18.3, 20.4 |
| Refrigerant | R-407C |
| Return Gas Temperature | 65°F (18.33°C) |
| Suction Line Fitting Type | Stub |
| Suction Line Size (OD) | 3/4″ |
| UOM | EA |
| UPC | See Optical |
| Voltage | 208-230 VAC |
