Factory Authorized Parts -CR28K6E-PFV-775 Copeland – Compressor 208/230V 1Ph R22 15.3 RLA 28200 Btu – E:Mail: sales@walkair.us to confirm availability or for volume discounts

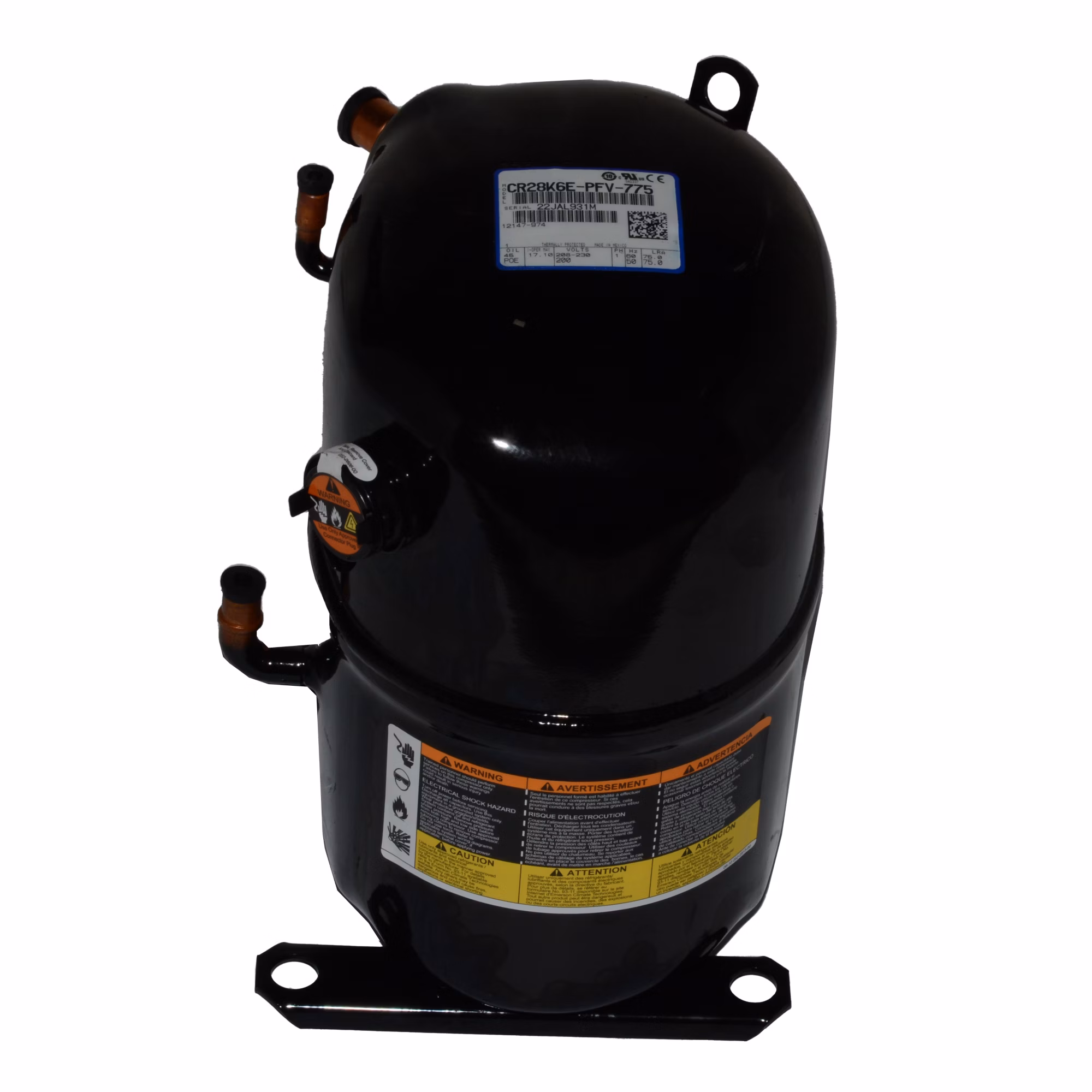

CR28K6E-PFV-775 28,200 BTUH Copeland® Reciprocating/Hermetic Compressor for R-22 Refrigerant
Copeland® Reciprocating Compressor
• External Line Break Overload
• Low Noise Vibration Levels
• Lightweight
Factory Authorized Parts are designed to meet exact Carrier® Corporation specifications, ensuring optimum system performance, proven reliability, easy installation and maintenance and safe system operation.
| Attributes | |
|---|---|
| Amps | 11.9-13.1 |
| Approvals | UL Listed |
| BTU Output | 21,900-30,900 |
| Brand | Copeland |
| Compressor Housing | Hermetic |
| Compressor Type | Reciprocating |
| Country of Origin | MEX |
| Cubic Measurement | 2.2569 |
| Cycle/Hertz | 60 Hz |
| Dimensional Weight | 29 |
| Discharge Connection Size OD | 1/2″ |
| Discharge Connection Type | Stub |
| Evaporating Temperature | 45°F (7.22°C) |
| GTIN | 00781897608332 |
| Locked Rotor Amps (LRA) | 75 |
| Mass Flow (lbs/hr) | 319 lbs./hr.; 384 lbs./hr. |
| Mounting Dimensions | 7.5″ x 7.5″ x 13.94″ |
| OPT Code | CR28K6E-PFV-775 |
| Oil Charge Initial (oz.) | 45 |
| Oil Type | Mineral (MO) or Polyolester (POE) |
| Phase | Single |
| Prop 65 | NO |
| Protection | Yes |
| Rated Load Amps (RLA) | 13.7, 15.3 |
| Refrigerant | R-22 |
| Return Gas Temperature | 65°F (18.33°C) |
| Suction Line Fitting Type | Sweat or Braze |
| Suction Line Size (OD) | 3/4″ |
| UOM | EA |
| UPC | 781897608332 |
| Voltage | 208-230 VAC |
