Description

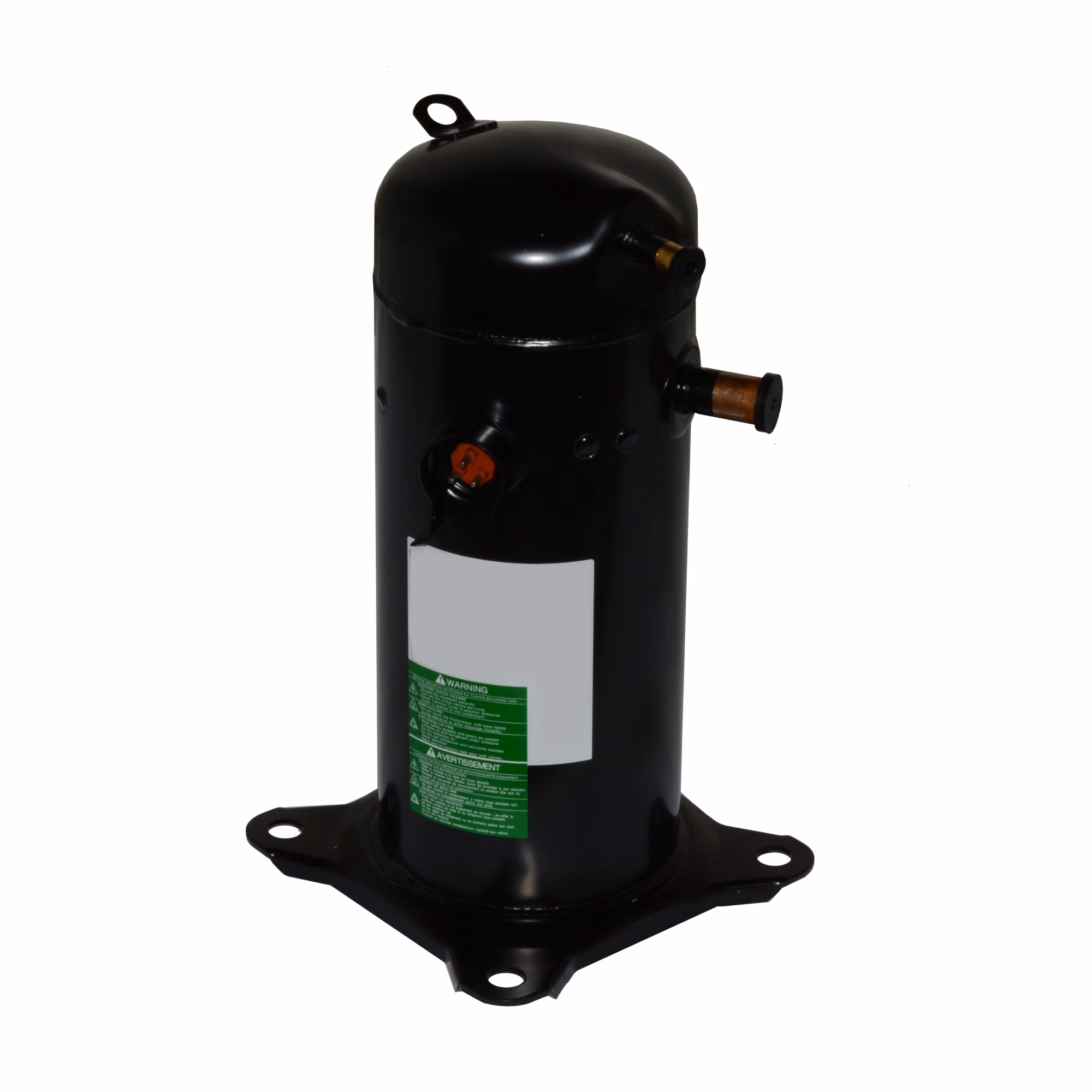

Factory Authorized Parts – ABG042RADS COMPRESSOR, HERMETIC SCROLL – E:Mail: sales@walkair.us to confirm availability or for volume discounts
Factory Authorized Parts™ – COMPRESSOR, HERMETIC SCROLL
| Attributes | |
|---|---|
| Amps | 6.5-14.5 |
| BTU Output | 41,500-57,100 |
| Brand | Factory Authorized Parts |
| Compressor Housing | Hermetic |
| Compressor Type | Scroll |
| Condensing Temperature | 130°F (54.44°C) |
| Country of Origin | KOR |
| Cubic Measurement | 1.6837 |
| Cycle/Hertz | 60 Hz |
| Discharge Connection Size OD | 1/2″ |
| Displacement | 40 (cm3/Rev) |
| Evaporating Temperature | 45°F (7.22°C) |
| GTIN | 00781897016274 |
| Locked Rotor Amps (LRA) | 123 |
| Mass Flow (lbs/hr) | 180-780 lbs/hr |
| Mounting Dimensions | 7.5″ x 7.5″ |
| Phase | Three |
| Prop 65 | YES |
| Protection | Internal Overload Protection |
| Refrigerant | R-410A |
| Sound Level (dBA) | 76 |
| Suction Line Size (OD) | 7/8″ |
| UPC | 781897016274 |
| Voltage | 208-230 VAC |
