Description

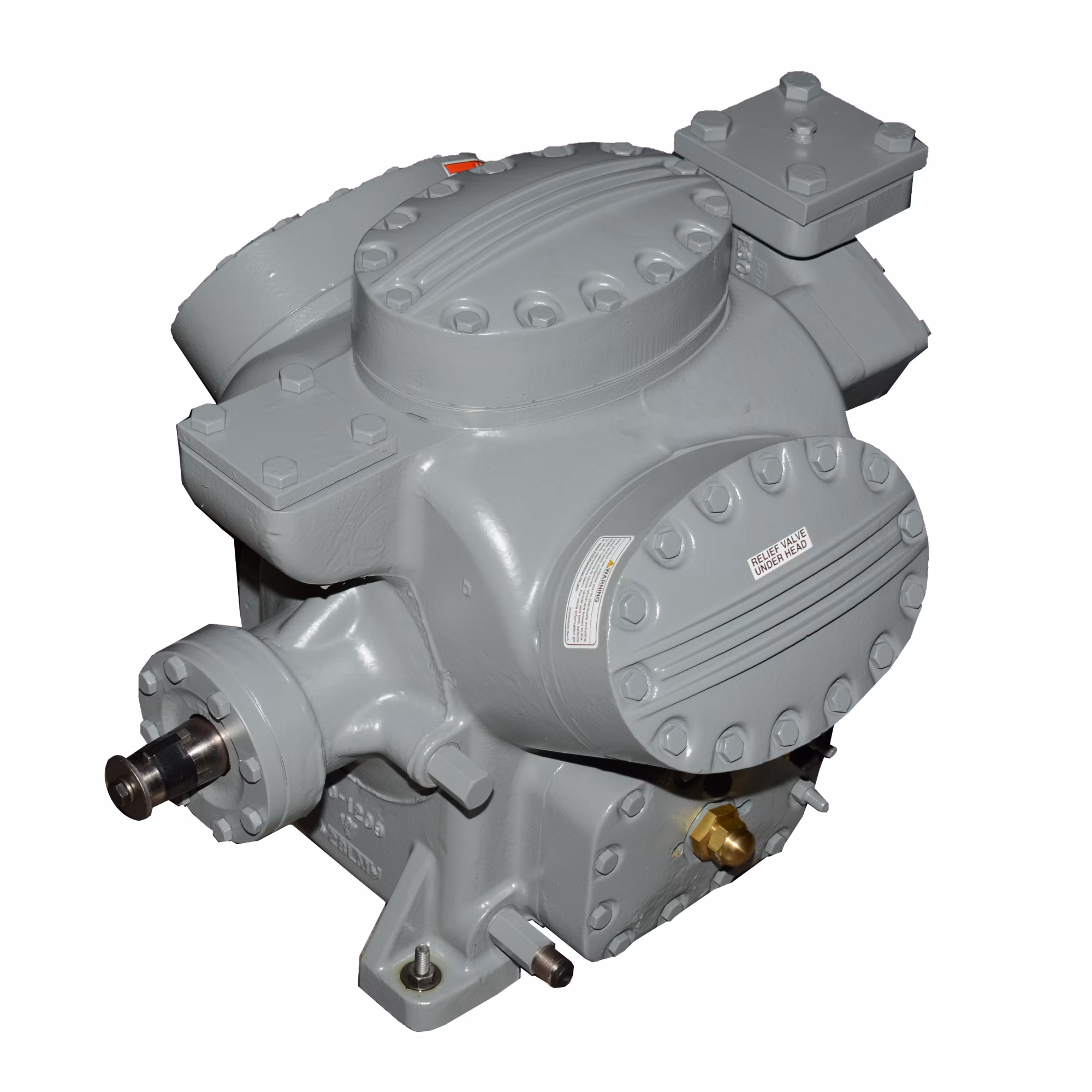

Factory Authorized Parts – 5F60A219 Compressor – E:Mail: sales@walkair.us to confirm availability or for volume discounts
Compressor Core Credit applied Upon Return of Compressor Body. Core Credit Pricing Varies by Model.
Automatic unloaded starting, expensive high-torque motors are unnecessary, reducing initial expense. High-efficiency motor can further increase efficiency of 5F and 5H compressors. Crankcase casting, cylinder head, and valve plate designs allow for a smooth, unrestricted refrigerant flow. Refined, two-piece shaft seal assembly virtually eliminates seal leakage for maximum reliability over a wide temperature range. Efficient crankcase heater design prevents accumulation of liquid refrigerant in the crankcase during shutdown, dilution of the compressor oil supply. As suction pressure changes, capacity control automatically reduces compressor capacity to as low as 35% of full-design load, reducing horsepower requirements as demand changes. Part-load operation increases energy efficiency, reducing utility bills. Large-capacity, manually reversible oil pump, automatic pressure regulator, and oil-filtering sys
| Attributes | |
|---|---|
| Approvals | CSA Listed |
| Brand | Carlyle |
| CFM | 60 |
| Compressor Housing | Semi-Hermetic |
| Compressor Type | Reciprocating |
| Country of Origin | MEX |
| Cubic Measurement | 6.997 |
| Dimensional Weight | 167 |
| Discharge Connection Size OD | 1 5/8″ |
| Discharge Connection Type | ODF |
| Mass Flow (lbs/hr) | 60 lbs./hr. |
| Mounting Dimensions | 13 7/16″ x 8″ |
| OPT Code | 1P 5 F 60 A 219 |
| Prop 65 | NO |
| Return Gas Temperature | 65°F (18.33°C) |
| Suction Line Fitting Type | Sweat or Braze |
| Suction Line Size (OD) | 2 1/8″ |
| UOM | EA |
| UPC | See Optical |
