Description
Factory Authorized Parts – 06EY450140 Oil Less Compressor – E:Mail: sales@walkair.us to confirm availability or for volume discounts
Compressor Core Credit applied Upon Return of Compressor Body. Core Credit Pricing Varies by Model.

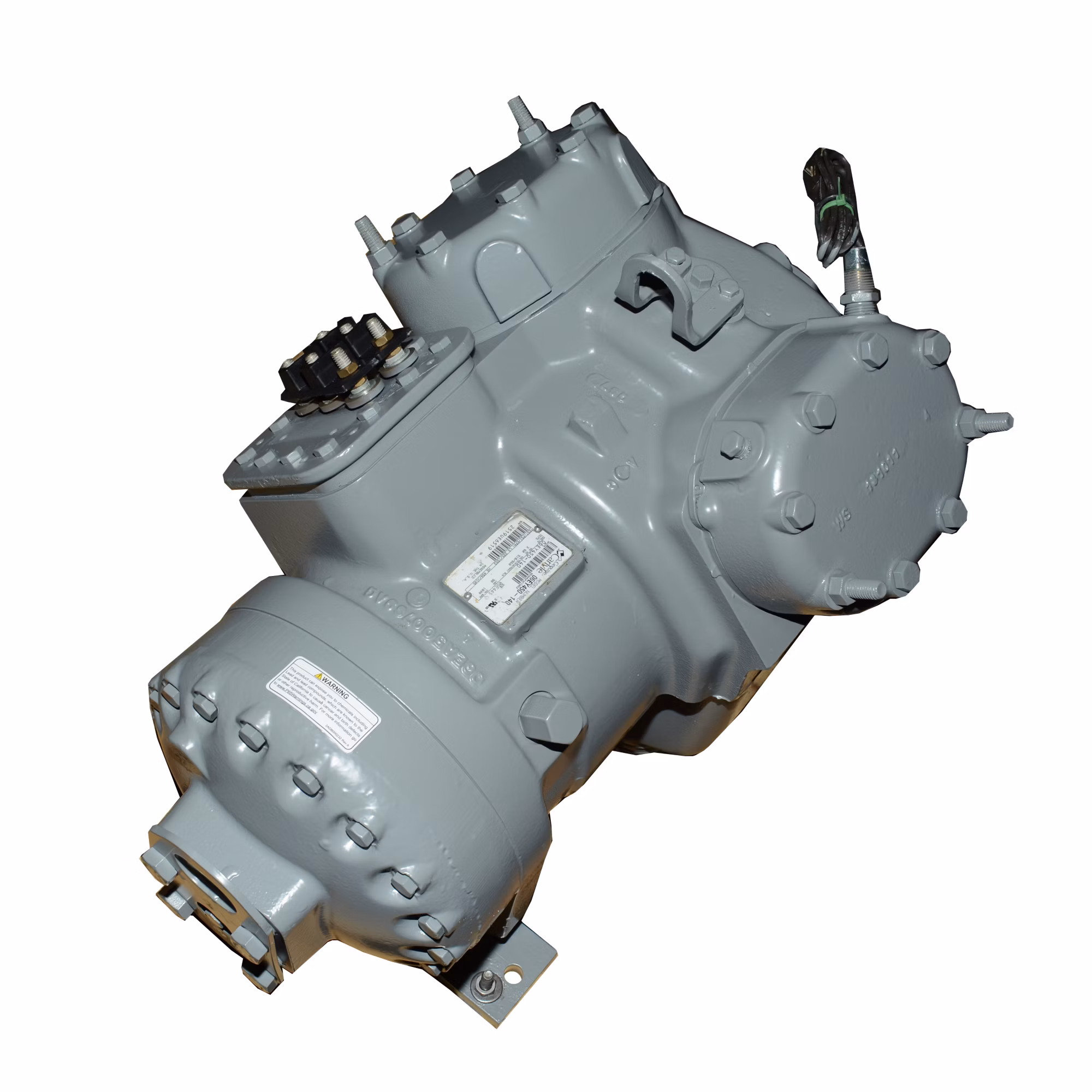

OIL LESS COMPRESSOR
Factory Authorized Parts are designed to meet exact Carrier® Corporation specifications, ensuring optimum system performance, proven reliability, easy installation and maintenance and safe system operation.
High-flow, automatically reversible oil pump provides positive-displacement oil lubrication. Crankcase venting system equalizes pressure during startup and assures oil return to sump. Oversize sump holds extra oil in crankcase to prevent levels dropping below safe lubrication range during flooded starts. Contoured pistons lower cylinder clearances to increase compressor capacity and efficiency. High-efficiency valves provide increased refrigerant flow and lower pressure drops. Electronic oil-pressure switch.
| Attributes | |
|---|---|
| Approvals | CSA Listed; UL Listed |
| Brand | Carlyle |
| CFM | 50 |
| Compressor Housing | Semi-Hermetic |
| Compressor Type | Screw |
| Country of Origin | USA |
| Cubic Measurement | 12.9049 |
| Cycle/Hertz | 60 Hz |
| Dimensional Weight | 167 |
| Discharge Connection Type | Sweat or Braze |
| Mass Flow (lbs/hr) | 50 lbs./hr. |
| OPT Code | 1P06EY 450 140 |
| Oil Type | Alkylbenzene (AB) or Mineral (MO) or Polyolester (POE) |
| Overall Length | 31 |
| Phase | Three |
| Prop 65 | NO |
| Protection | Yes |
| Return Gas Temperature | 65°F (18.33°C) |
| Suction Line Fitting Type | Sweat or Braze |
| UOM | EA |
| UPC | See Optical |
| Voltage | 575 VAC |
