Description
Factory Authorized Parts – 06ET599360 Compressor, High Temp, No Oil – E:Mail: sales@walkair.us to confirm availability or for volume discounts

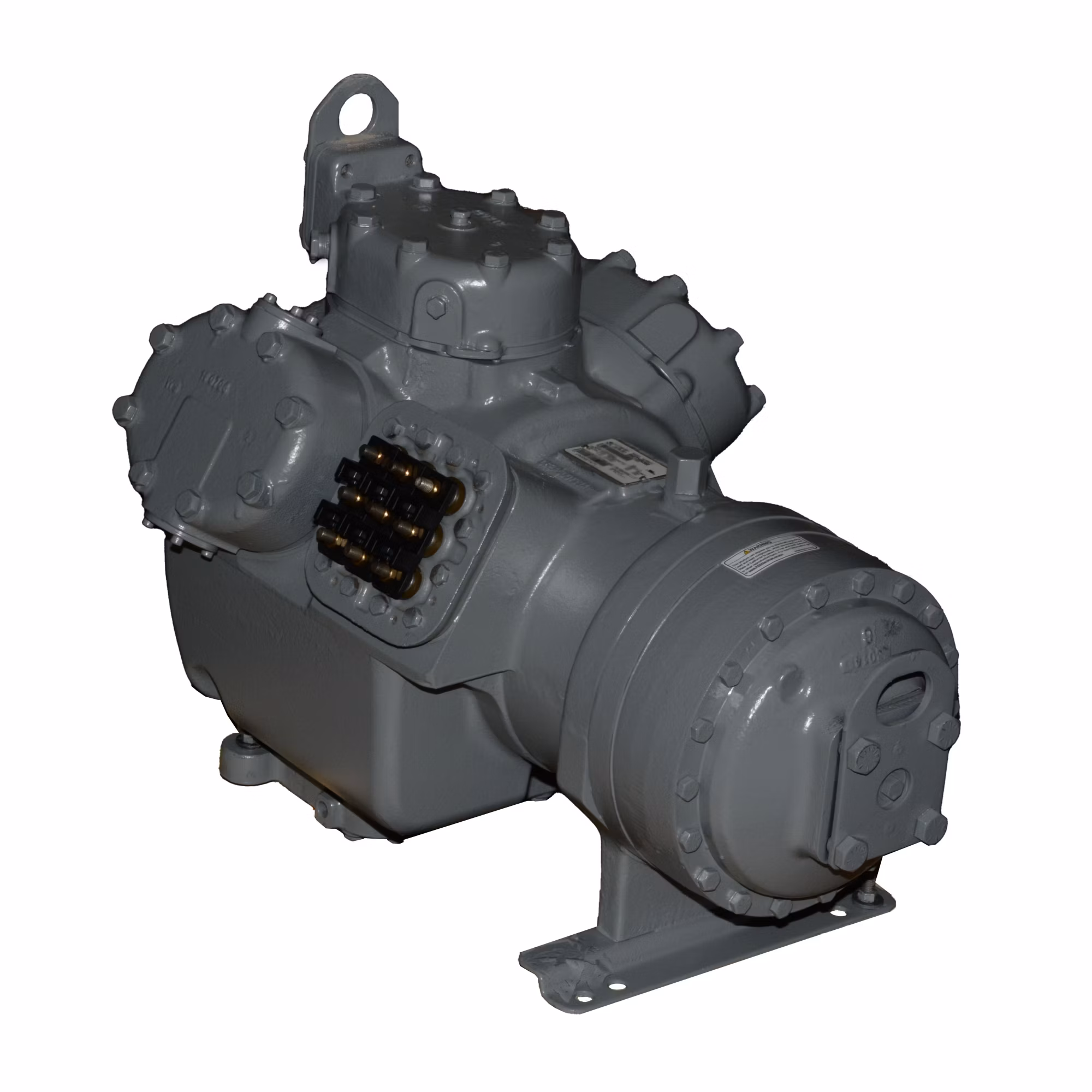

Factory Authorized Parts™ – 06ET599360 Compressor, High Temp, No Oil
High-flow, automatically reversible oil pump provides positive-displacement oil lubrication. Crankcase venting system equalizes pressure during startup and assures oil return to sump. Oversize sump holds extra oil in crankcase to prevent levels dropping below safe lubrication range during flooded starts. Contoured pistons lower cylinder clearances to increase compressor capacity and efficiency. High-efficiency valves provide increased refrigerant flow and lower pressure drops. Electronic oil-pressure switch.
| Attributes | |
|---|---|
| Approvals | UL Listed |
| Brand | Carlyle |
| CFM | 99 |
| Compressor Housing | Semi-Hermetic |
| Compressor Type | Screw |
| Country of Origin | USA |
| Cubic Measurement | 11.9358 |
| Cycle/Hertz | 60 Hz |
| Dimensional Weight | 149 |
| Discharge Connection Type | Sweat or Braze |
| Locked Rotor Amps (LRA) | 690, 345 |
| Mass Flow (lbs/hr) | 99 lbs./hr. |
| OPT Code | 06ET599360 |
| Oil Type | Alkylbenzene (AB) or Mineral (MO) or Polyolester (POE) |
| Overall Length | 33 |
| Phase | Three |
| Prop 65 | NO |
| Protection | Yes |
| Rated Load Amps (RLA) | 95, 189 |
| Return Gas Temperature | 65°F (18.33°C) |
| Suction Line Fitting Type | Sweat or Braze |
| UOM | EA |
| UPC | See Optical |
| Voltage | 208-230/460 VAC |
