Description
Factory Authorized Parts – 06ET565360 High Temp Compressor, No Oil – E:Mail: sales@walkair.us to confirm availability or for volume discounts

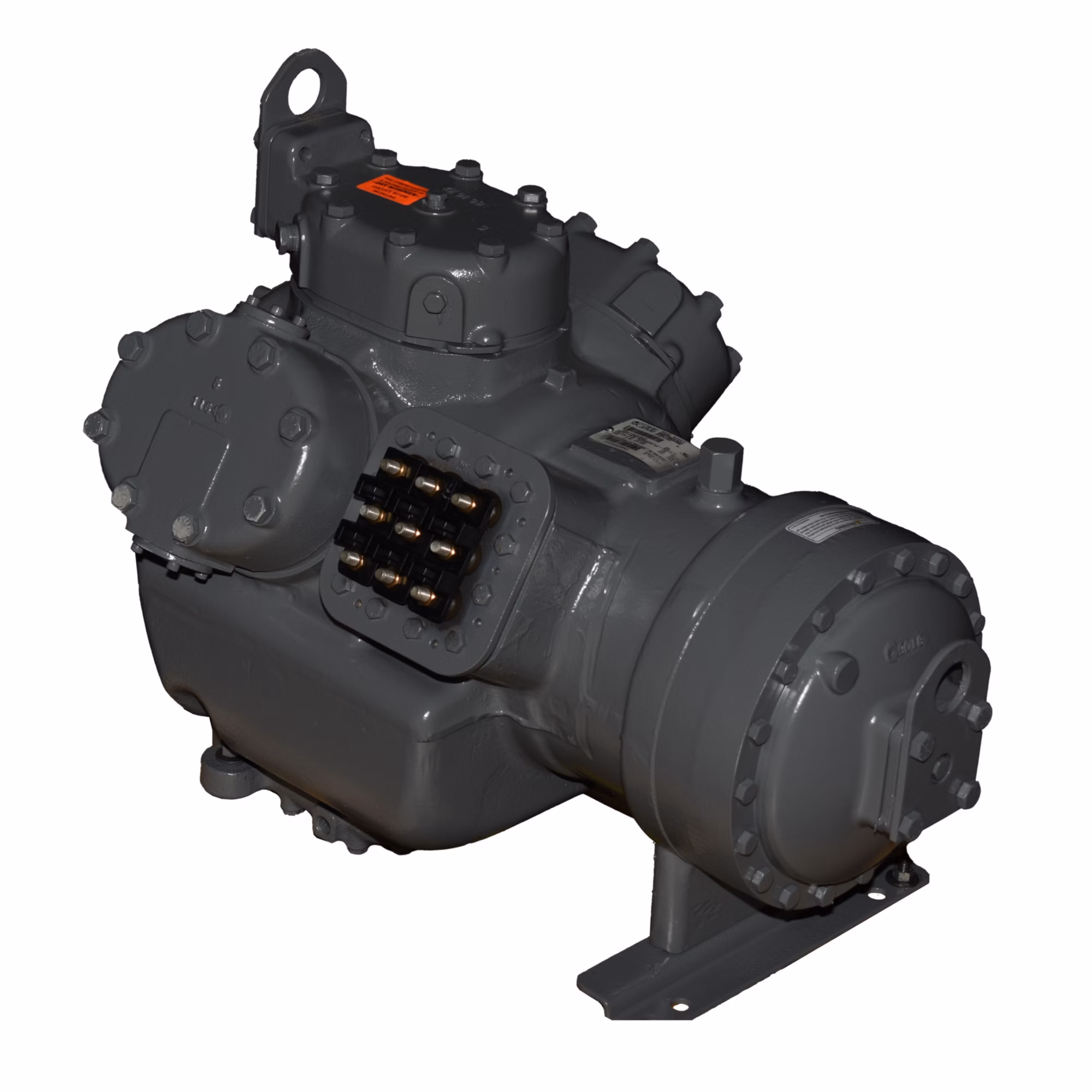

Factory Authorized Parts™ – 06ET565360 High Temp Compressor, No Oil
High-flow, automatically reversible oil pump provides positive-displacement oil lubrication. Crankcase venting system equalizes pressure during startup and assures oil return to sump. Oversize sump holds extra oil in crankcase to prevent levels dropping below safe lubrication range during flooded starts. Contoured pistons lower cylinder clearances to increase compressor capacity and efficiency. High-efficiency valves provide increased refrigerant flow and lower pressure drops. Electronic oil-pressure switch.
| Attributes | |
|---|---|
| Approvals | UL Listed |
| Brand | Carlyle |
| CFM | 65 |
| Compressor Housing | Semi-Hermetic |
| Compressor Type | Screw |
| Country of Origin | USA |
| Cubic Measurement | 12.2439 |
| Cycle/Hertz | 60 Hz |
| Dimensional Weight | 155 |
| Discharge Connection Type | Sweat or Braze |
| EAN | 0822529828930 |
| Locked Rotor Amps (LRA) | 223, 446 |
| Mass Flow (lbs/hr) | 65 lbs./hr. |
| Oil Type | Alkylbenzene (AB) or Mineral (MO) or Polyolester (POE) |
| Overall Length | 33 |
| Phase | Three |
| Prop 65 | NO |
| Protection | Yes |
| Rated Load Amps (RLA) | 112, 56 |
| Return Gas Temperature | 65°F (18.33°C) |
| Suction Line Fitting Type | Sweat or Braze |
| Suction Line Size (OD) | 1 5/8 |
| UOM | EA |
| UPC | See EAN |
| Voltage | 208-230/460 VAC |
