Factory Authorized Parts – 06DS5376BC0650 Compressor High Temp, Suction Cut Off, 3 Ph – E:Mail: sales@walkair.us to confirm availability or for volume discounts

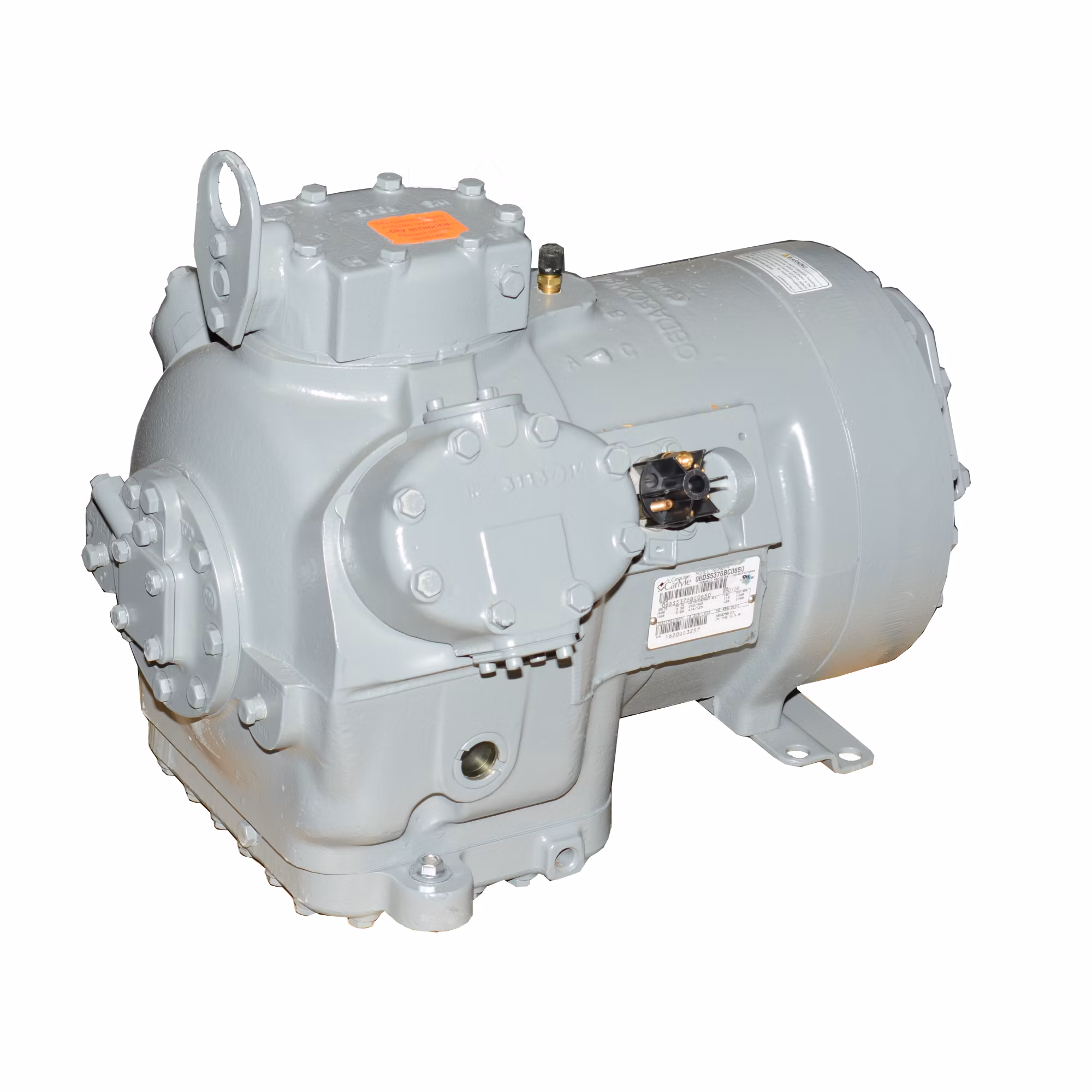

Factory Authorized Parts™ – 06DS5376BC0650 Compressor High Temp, Suction Cut Off, 3 Ph
| Attributes | |
|---|---|
| Amps | 40 |
| Approvals | CSA Listed; UL Listed |
| BTU Output | 175.2 |
| Brand | Carlyle |
| Compressor Housing | Semi-Hermetic |
| Compressor Type | Screw |
| Country of Origin | USA |
| Cubic Measurement | 8.3093 |
| Cycle/Hertz | 50/60 Hz |
| Dimensional Weight | 126 |
| Discharge Connection Size OD | 1 1/8″ |
| Discharge Connection Type | Sweat or Braze |
| Locked Rotor Amps (LRA) | 120 |
| Mounting Dimensions | 8 22/25″ – 11 19/50″ x 12 39/50″ |
| OPT Code | 1P06DS5376BC0650 |
| Oil Type | Alkylbenzene (AB) or Mineral (MO) or Polyolester (POE) |
| Overload Type | Thermal |
| Phase | Three |
| Prop 65 | NO |
| Protection | Yes |
| Rated Load Amps (RLA) | 25.6, 32 |
| Return Gas Temperature | 65°F (18.33°C) |
| Suction Line Fitting Type | Sweat or Braze |
| Suction Line Size (OD) | 1 5/8″ |
| UOM | EA |
| UPC | See Optical |
| Voltage | 400/460 VAC |
