Description

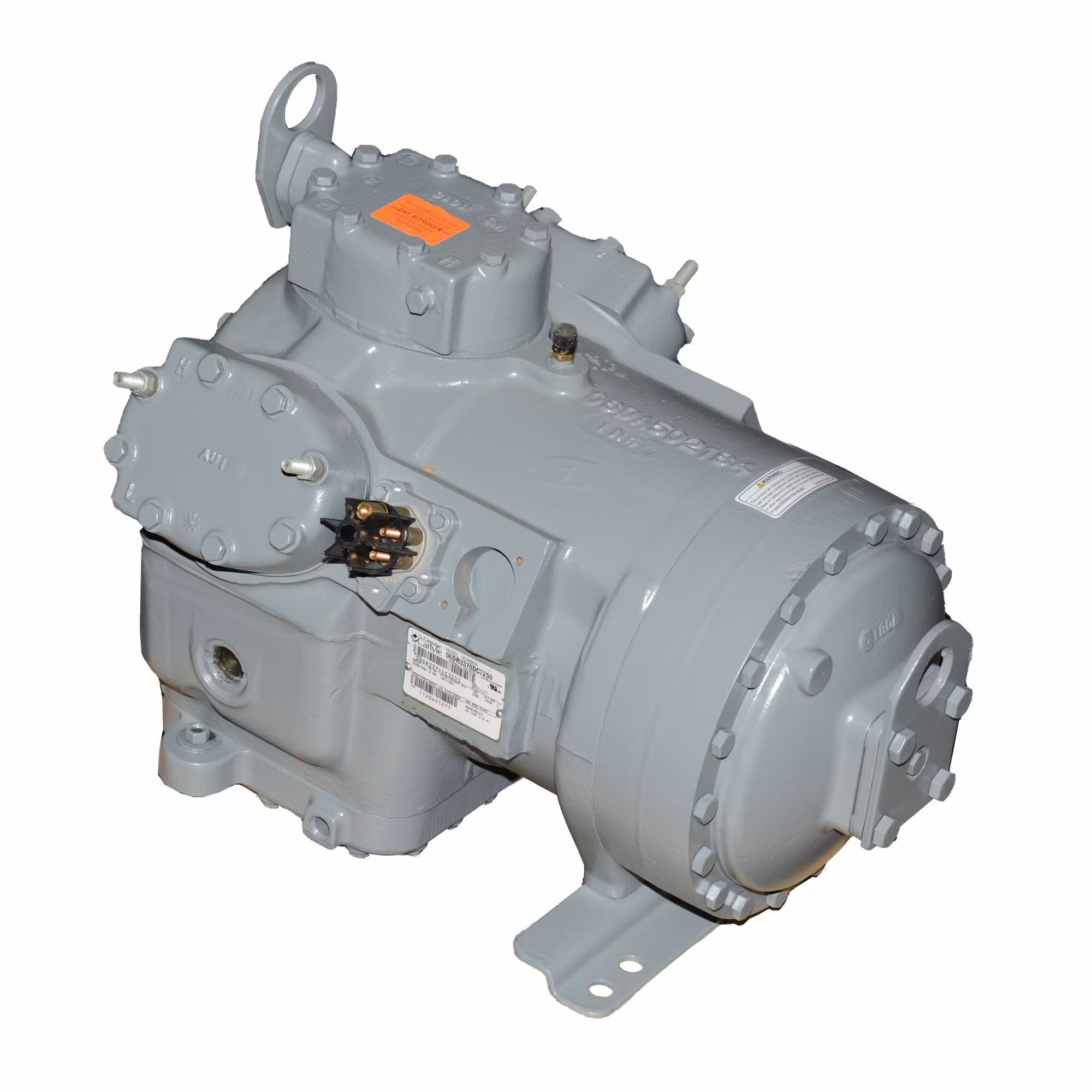

Factory Authorized Parts – 06DR3376DC3250 Oil Less Compressor – E:Mail: sales@walkair.us to confirm availability or for volume discounts
Compressor Core Credit applied Upon Return of Compressor Body. Core Credit Pricing Varies by Model.
Oil Less Compressor
Factory Authorized Parts are designed to meet exact Carrier® Corporation specifications, ensuring optimum system performance, proven reliability, easy installation and maintenance and safe system operation.
| Attributes | |
|---|---|
| Approvals | CSA Listed; UL Listed |
| Brand | Carlyle |
| CFM | 37 |
| Compressor Housing | Semi-Hermetic |
| Compressor Type | Screw |
| Country of Origin | MEX |
| Cubic Measurement | 6.9213 |
| Cycle/Hertz | 60 Hz |
| Dimensional Weight | 87 |
| Discharge Connection Size OD | 1 1/8″ |
| Discharge Connection Type | Sweat or Braze |
| Evaporating Temperature | 32°F to 53°F (0°C to 11.67°C) |
| Locked Rotor Amps (LRA) | 228 |
| Maximum Voltage | 254 VAC |
| Motor HP | 10 |
| Mounting Dimensions | 8 22/25″ – 11 19/50″ x 12 39/50″ |
| OPT Code | 1P06DR3376DC3250 |
| Oil Type | Alkylbenzene (AB) or Mineral (MO) or Polyolester (POE) |
| Overall Length | 24 |
| Overload Type | Thermal |
| Phase | Three |
| Prop 65 | NO |
| Protection | Yes |
| Rated Load Amps (RLA) | 39.7 |
| Refrigerant | R-401A; R-401B; R-404A; R-408A; R-409A; R-507A |
| Return Gas Temperature | 65°F (18.33°C) |
| Suction Line Fitting Type | Sweat or Braze |
| Suction Line Size (OD) | 1 5/8″ |
| UOM | EA |
| UPC | See Optical |
| Voltage | 208-230 VAC |
