Description

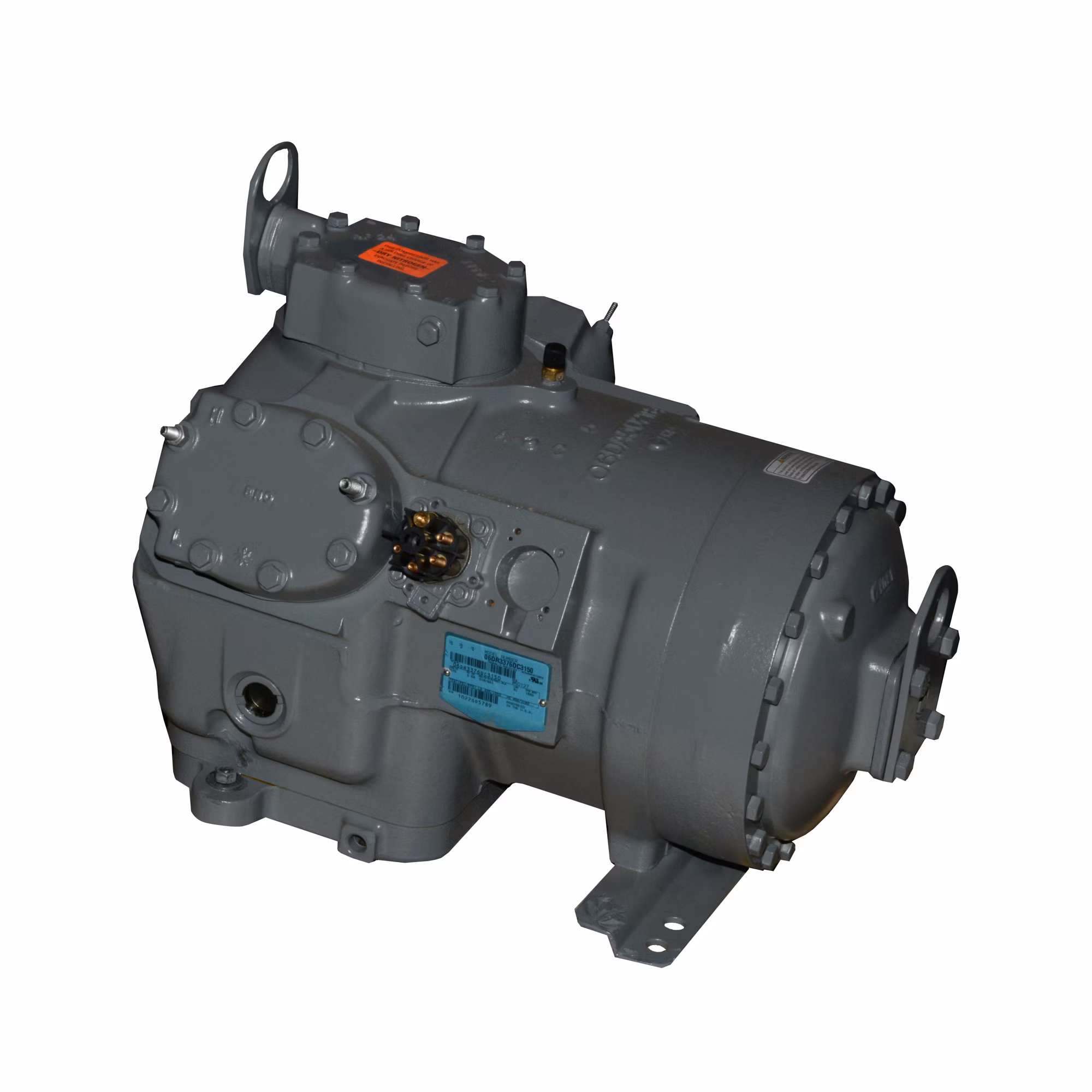

Factory Authorized Parts – 06DR3376DC3150 Oil Less Compressor – E:Mail: sales@walkair.us to confirm availability or for volume discounts
Compressor Core Credit applied Upon Return of Compressor Body. Core Credit Pricing Varies by Model.
OIL LESS COMPRESSOR
High-flow, automatically reversible oil pump provides positive-displacement oil lubrication. Crankcase venting system equalizes pressure during startup and assures oil return to sump. Oversize sump holds extra oil in crankcase to prevent levels dropping below safe lubrication range during flooded starts. Contoured pistons lower cylinder clearances to increase compressor capacity and efficiency. High-efficiency valves provide increased refrigerant flow and lower pressure drops. Electronic oil-pressure switch.
Factory Authorized Parts are designed to meet exact Carrier® Corporation specifications, ensuring optimum system performance, proven reliability, easy installation and maintenance and safe system operation.
| Attributes | |
|---|---|
| Approvals | CSA Listed; UL Listed |
| Brand | Carlyle |
| CFM | 37 |
| Compressor Housing | Semi-Hermetic |
| Compressor Type | Screw |
| Country of Origin | MEX |
| Cubic Measurement | 6.9213 |
| Cycle/Hertz | 60 Hz |
| Dimensional Weight | 87 |
| Discharge Connection Size OD | 1 1/8″ |
| Discharge Connection Type | Sweat or Braze |
| Evaporating Temperature | 32°F to 53°F (0°C to 11.67°C) |
| Locked Rotor Amps (LRA) | 91 |
| Maximum Voltage | 661 VAC |
| Motor HP | 10 |
| Mounting Dimensions | 8 22/25″ – 11 19/50″ x 12 39/50″ |
| OPT Code | 1P06DR3376DC3150 |
| Oil Type | Alkylbenzene (AB) or Mineral (MO) or Polyolester (POE) |
| Overall Length | 24 |
| Overload Type | Thermal |
| Phase | Three |
| Prop 65 | NO |
| Protection | Yes |
| Rated Load Amps (RLA) | 17.9 |
| Refrigerant | R-401A; R-401B; R-404A; R-408A; R-409A; R-507A |
| Return Gas Temperature | 65°F (18.33°C) |
| Suction Line Fitting Type | Sweat or Braze |
| Suction Line Size (OD) | 1 5/8″ |
| UOM | EA |
| UPC | See Optical |
| Voltage | 575 VAC |
