Description

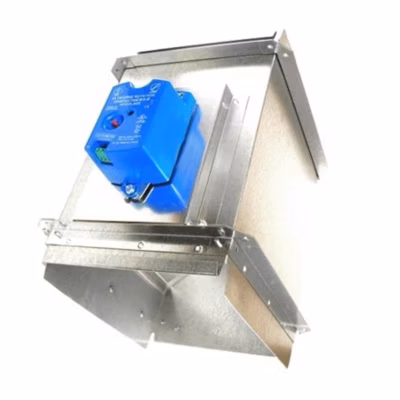

Rectangular Zone Damper 10×14
Specifications
| Attributes | |
|---|---|
| Brand | Bryant®, Payne® |
| CFM | 870 |
| Color | Silver |
| Composition | 1/2″ Direct Drive Mounting Hub, Position Indicator, Angular Rotation, Spring Loaded Disengagement Button, Plastic Covered Damper motor, Terminal Block wiring with a Removable Door, Permanently lubricated bushings with a split shaft design |
| Country of Origin | USA |
| Cubic Measurement | 1.2558 |
| Cycle/Hertz | 60 Hz |
| Damper Type | Zone |
| Dimensional Weight | 33 |
| Emergency Heat Switch | NO |
| Heat Pump Compatible | NO |
| Mounting Type | Side |
| Network Zoning | NO |
| OPT Code | 1PDAMPREC10X14-B |
| Phase | Single |
| Power Method | Hardwired |
| Prop 65 | YES |
| Shape | Rectangle |
| Size | 10″ x 14″ |
| Tier | Standard |
| UOM | EA |
| UPC | See Optical |
| Voltage | 24 VAC |
