Description

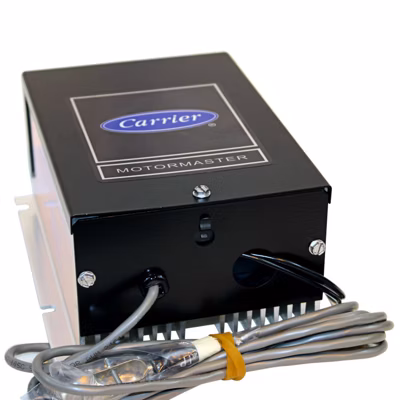

CPLOWAMB001A00 – Motormaster II Head Pressure Controller
The Motormaster II head pressure controller is a cycle control device activated by a temperature sensor mounted on a header tube of the outdoor coil. It is designed to cycle the outdoor-fan motors to maintain the saturated condensing temperature within normal operating limits of approximately 130 to 110°F high (54°C to 43°C), 70 to 50°F low (21 to 10°C). The controller maintains working head pressure at low ambient temperatures down to -20°F (-29°C) when properly installed.
Specifications
| Attributes | |
|---|---|
| Brand | Carrier®, Bryant®, Payne® |
| Country of Origin | MEX |
| Cubic Measurement | 0.2228 |
| Cycle/Hertz | 50/60 Hz |
| OPT Code | 1PCPLOWAMB001A00 |
| Phase | Single/Three |
| Prop 65 | YES |
| Refrigerant | R-410A |
| Tier | Standard |
| UOM | EA |
| UPC | See Optical |
