Description

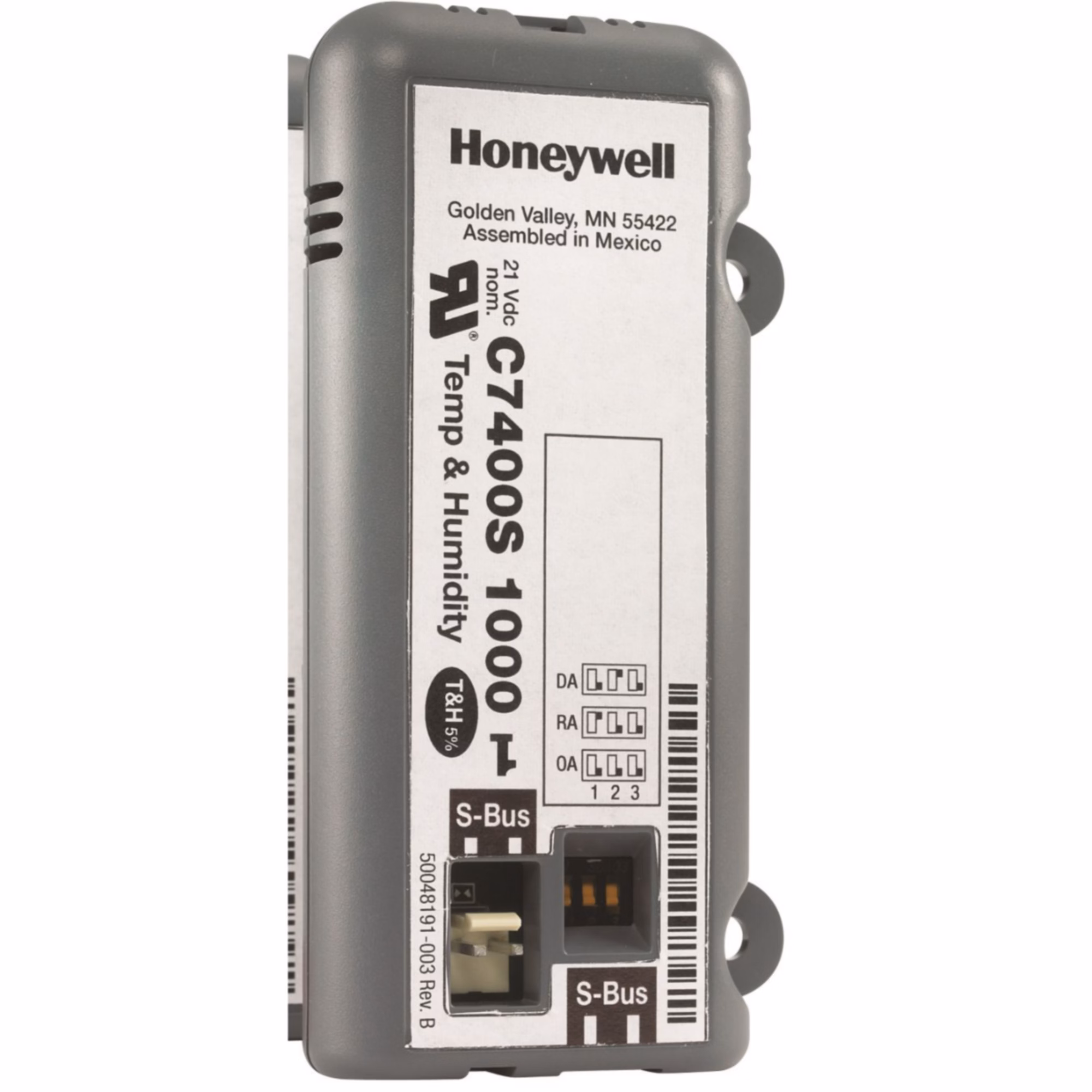

C7400S1000 Honeywell Home – Digital Enthalpy Sensor – E:Mail: sales@walkair.us to confirm availability or for volume discounts
Digital enthalpy (humidity/temperature) sensor for use with S-Bus devices and W7220 economizer controller
Features:
- This unit mounted C7400S enthalpy sensor includes solid state temperature and humidity sensors.
- Outputs a digital communicating signal on a two-wire Sylkbus communications link, reporting the temperature and humidity separately to the controller.
- The controller determines the enthalpy (total heat), enabling economizer modes of operation when outside air enthalpy is suitable for free cooling.
- Enthalpy sensors are compatible with Honeywell economizer systems.
- When used with an economizer, the enthalpy boundary curve is programmed via the controller. When the temperature and humidity are determined to be suitable based on the relationship to the boundary, the controller allows outside air for economizing.
- Ambient temperature operating range from -40° to 150° F.
- Dual enthalpy sensors in outside air and return switches the control
| Attributes | |
|---|---|
| Brand | Honeywell Home |
| Country of Origin | MEX |
| Cubic Measurement | 0.0163 |
| Dimensional Weight | 1 |
| EAN | 0085267920940 |
| Prop 65 | NO |
| UOM | EA |
| UPC | 085267920940 |
| Voltage | 21 VDC |
