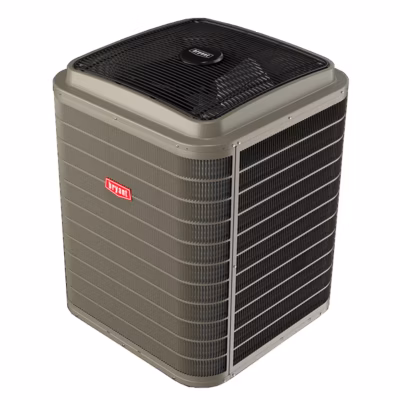

284ANV036000 Bryant Evolution – 3 Ton 24 SEER Residential Variable Speed Heat Pump Condensing Unit

284ANV036000
2 = HP / Product Family
8 = Evolution Series / Tier
4 = SEER
A = Puron
N = 208-230-1 / Voltage
V = Variable Speed
036 = 3 Ton / Cooling Capacity
000 = Not Defined

Bryant’s 284ANV Evoution® Extreme is a breakthrough product providing up to 13 HSPF heating efficiency and up to 24 SEER cooling efficiency. The variable speed capacity control results in strong heating capacity as the outdoor temperature drops resulting in less reliance on auxiliary heat. Lower speed operation, when needed in cooling, for enhanced comfort and dehumidification.
This product has been designed and manufactured to meet Energy Star® criteria for energy efficiency when matched with appropriate coil components. Refer to the combination ratings in this Product Data for system combinations that meet Energy Star guidlines.

NOTE: Always refer to the AHRI directory (www.ahridirectory.org) for the most up-to-date ratings information.

Features / Benefits
Energy Efficiency

• Up to 24 SEER, 15 EER, 13 HSPF
• Microtube Technology refrigeration system
• Indoor air quality accessories available

Sound

• Sound level as low as 51 dBA in low speed .

Comfort

• Variable speed compressor with capacity range from 25-100%
• Air cooled Inverter variable speed drive
• – System requires Evolution Control with version 3.0 software
• – Energy Tracking capability with the Evolution Control Wall Control w/latest software version (Energy Tracking has the ability to monitor and estimate the energy consumption of your Evolution system.)

Reliability

• Non-ozone depleting Puron® refrigerant
• Front-seating service valves
• High pressure switch
• Discharge pressure transducer
• Electronic expansion valve (EXV) for heating, TXV for cooling
• Filter drier (field installed)
• Internal crankcase heater standard

Flexibility and installation:

• 2 control wires to outdoor unit
• Minimum and maximum airflow adjustments
• Compressor heating capacity control
• Hybrid Heat Dual Fuel capable

Durability
DuraGuard protection package:

• Solid, Durable sheet metal construction
• Steel louver coil guard
• Baked-on, complete outer coverage, powder paint

Applications

• Long-line – up to 250 feet (76.2 m) total equivalent length, up to 200 feet (60.96 m) condenser above evaporator, or up to 80 ft. (24.38 m) evaporator above condenser.
