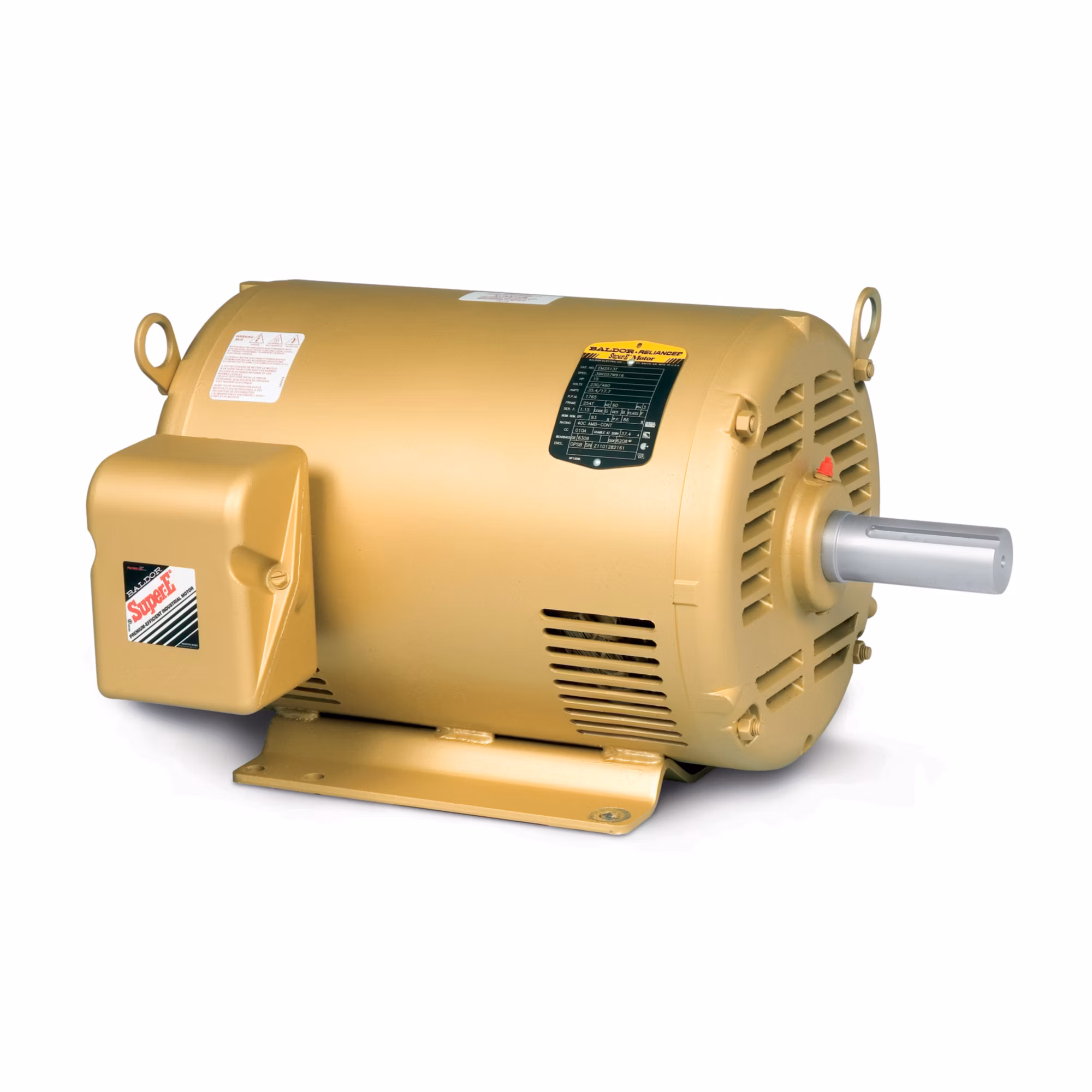

Baldor-Reliance – EM3154T Baldor Motor 1.5HP, 1755RPM, 3PH, 60HZ, 145T, 3522M, OPSB, F – E:Mail: sales@walkair.us to confirm availability or for volume discounts
Baldor-Reliance – EM3154T Baldor Motor 1.5HP, 1755RPM, 3PH, 60HZ, 145T, 3522M, OPSB, F
| Attributes | |
|---|---|
| Ambient Operating Temperature | 40°F (4.44°C) |
| Amps | 2.2-4.4 |
| Approvals | CSA Listed; UL Recognized |
| Bearing Type | Ball |
| Brand | Baldor-Reliance |
| Country of Origin | USA |
| Cubic Measurement | 0.8333 |
| Cycle/Hertz | 60 Hz |
| Dimensional Weight | 14 |
| Duty | (S1) Continuous Running Duty |
| Full Load Amps | 2.2-4.5 |
| Insulation Class | F |
| Motor Enclosure | Open Slotted Band (OPSB) |
| Motor HP | 1 1/2 |
| Motor Type | PSC (Permanent Split Capacitor) |
| Mounting Type | F1 |
| NEMA Frame | 145T |
| Number of Speeds | 1 |
| OPT Code | em3154t |
| Overall Length | 11.62 |
| Phase | Three |
| Poles | 4 |
| Prop 65 | NO |
| RPM | 1,755 |
| Rotation | Reversible |
| Service Factor | 1.15 |
| Type | Open Slotted Band (OPSB) |
| UOM | EA |
| UPC | See Optical |
| Voltage | 230/460 VAC |
