Description

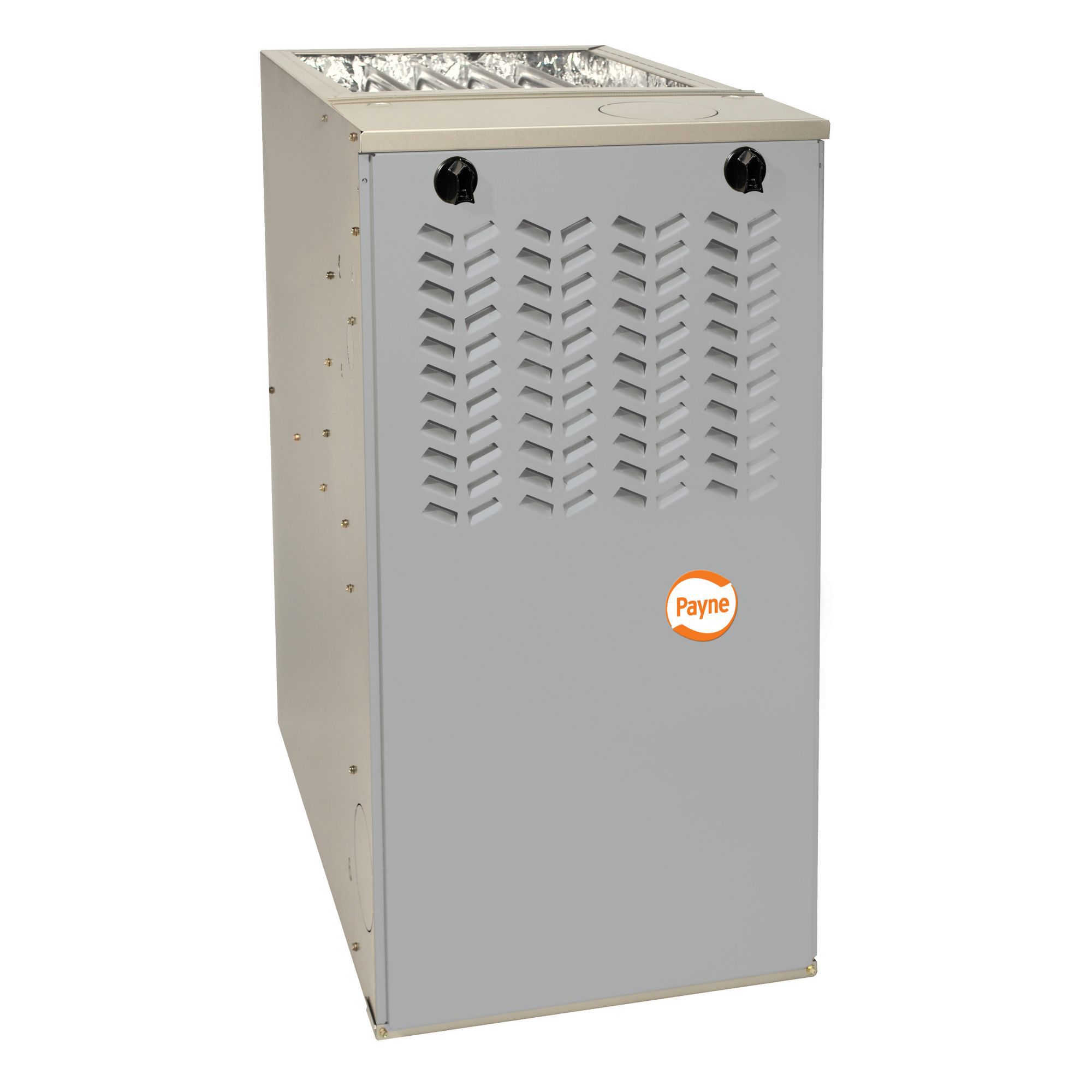

PG92MSAA36060A 92% AFUE 60000 BTUH Multi-Speed ECM Multipoise Gas Furnace – E:Mail: sales@walkair.us to confirm availability or for volume discounts
PG92MSAA36060A
P = Brand Identifier
G = Gas Furnace / Product
92 = 92% AFUE / Base Efficiency
M = Multi 18-Speed Constant Torque (MCT) ECM / Motor
S = Single Stage / Heating Stages
A = Standard / NOx Level
A = Major Series
36 = 1200 CFM / Cooling Capacity
060 = 60,000 BTU/h / Heating Input
A = 14.2″ / Width
The PG92MSAA Multipoise 92 Condensing Gas Furnace features single-stage gas valve and ECM blower motor. This furnace provides electrical efficiency with a fixed-speeds, constant torque (MCT) ECM blower motor. With an Annual Fuel Utilization Efficiency (AFUE) of 92.1% AFUE, the single-stage gas furnace provides added savings over standard, non-condensing gas furnaces. Improved serviceability with the 3 digit status display and NFC enabled board allowing setup via the service tech app. This Gas Furnace features 4-way multipoise installation flexibility, and is available in eight model sizes. The PG92MSAA can be vented for direct vent/two-pipe, ventilated combustion air, or single-pipe applications. All sizes are design certified in Canada. All sizes are design certified for use in Manufactured Housing (Mobile Home) applications when used with factory-approved MH accessory kit.
PERFORMANCE
- Multi 18-speed, constant torque (MCT) ECM blower motor for electrically efficient operation all year long in heating, cooling and continuous fan operation.
- Single-speed inducer motor, and single-stage gas valve.
- Silicon Nitride Robust Hot Surface Igniter.
- Adjustable blower speed for heating and cooling.
- Enhanced diagnostics with easy to read 3 digit display for faults and status
- Aluminized-steel primary heat exchanger.
- Stainless-steel condensing secondary heat exchanger.
INSTALLATION FLEXIBILITY
- 4-way multipoise design for upflow, downflow or horizontal installation, with unique vent elbow for 12 different venting options, including optional venting through-the-cabinet downflow venting capability.
- On-board NFC antenna makes setup a tap away when using the service technician app
- Factory-configured ready for upflow applications.
- Ideal height 35” (889 mm) cabinet: short enough for taller coils, but still allows enough room for service.
- Direct-vent/sealed combustion, single-pipe venting or ventilated combustion air.
APPLICATIONS
- Approved for Twinning applications with accessory kit (42060B, 48080B, 60080C, 60100C, 60120D models, only).
- Approved for Manufactured Housing/Mobile Home applications with MH accessory kit.
- Convertible to propane with gas conversion accessory kit.
CERTIFICATIONS
- All sizes meet ENERGY STAR® South regional standards.
- Cabinet air leakage less than 2.0% at 1.0 in. w.c. and cabinet air leakage less than 1.4% at 0.5 in. w.c. when tested in accordance with ASHRAE standard 193.
- All sizes can be installed in California air quality management districts with a 40 ng/J NOx emissions limit.
| Attributes | |
|---|---|
| AFUE | 80 |
| Air Flow Direction | Multi-Position |
| BTU Input | 84,000-88,000 |
| BTU Output | 68,000-71,000 |
| Blower Motor HP | 1/2 |
| Blower Motor Speeds | Multiple |
| Blower Motor Type | ECM (Electronically Commutated Motor) |
| Blower Wheel Diameter | 8 |
| Blower Wheel Width | 10″ |
| Brand | Payne® |
| CFM | 1,200 |
| CFM Heating | 320-1,285 |
| Cabinet Width | 17.5 |
| Color | Gray |
| Country of Origin | USA |
| Cycle/Hertz | 60 Hz |
| Energy Star Rated | Yes |
| FER Compliant | Yes |
| Filter Size | 16″ x 25″ x 3/4 |
| Fuel Type | Natural Gas or LP |
| Full Load Amps | 6.7 |
| Furnace Type | Gas |
| Gas Connection Size | 1/2 |
| Gas Connection Type | NPT |
| Ignition Type | Hot Surface (HSI) |
| Includes Filter Rack | No |
| Maximum Overcurrent Protection (MOCP) | 15 |
| OPT Code | 1PPG92MSAA36060A |
| Phase | Single |
| Product Family | PG92MSA |
| Prop 65 | Yes |
| Rated Current Amps (RCA) | 10.3 |
| Rated Load Amps (RLA) | 6.7 |
| Stages Heating | (1) Single |
| UPC | See Optical |
| Voltage | 115 VAC |
