Description

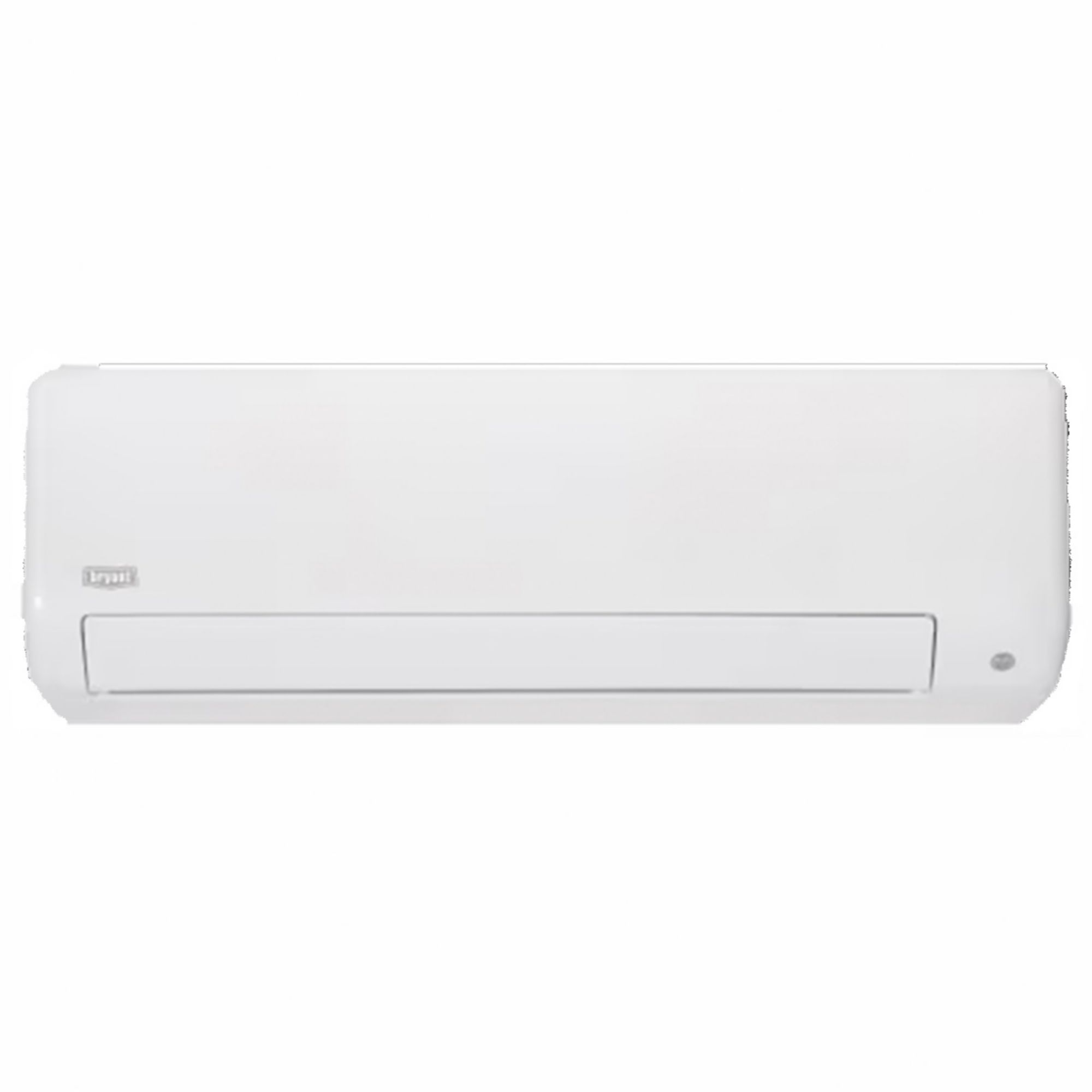

615AHAQ18XA3 Ductless 18000 Btuh Heat Pump High Wall Unit R-454B (208/230-1) – E:Mail: sales@walkair.us to confirm availability or for volume discounts
615AHAQ18XA3
615 = Bryant Indoor Code
A = Reg Heat / Model
H = High Wall / Indoor Type
A = Major Series
18 = 18000 / Nominal Capacity
X = Not Used
A = Variation
3 = 208/230-1-60 / Voltage
FEATURES & BENEFITS
- Select sizes are ENERGY STAR® certified based on outdoor unit pairing
- Available in 115V and 208/230V
- Modes: Cool, Heat, Dry, Fan, Auto
- Right-left, up-down louver control
- Sizes ranging from 06 to 36
- Filter removable from top
- Leak detection sensor
- Four fan speeds
- Heating Setback (46° F Heating Mode)
- Turbo Mode
- Follow Me (senses temperature at handheld remote)
- Quiet indoor sound operation, as low as 16 decibels
- Aluminum Blue Hydrophilic pre-coated fins
- Wireless Remote Controller standard
- Optional Wired Remote Controller (Timer Function)
- Optional Wired Remote Controller (7-Day Programma
| Attributes | |
|---|---|
| Approvals | UL Listed |
| Blower Motor HP | 1/25 |
| Blower Motor RPM | 1,190 |
| Blower Motor Speeds | 3 |
| Blower Motor Type | ECM (Electronically Commutated Motor) |
| Blower Motor Watts | 36-70 |
| Blower Wheel Diameter | 3 9/10 |
| Blower Wheel Width | 29 4/5 |
| Brand | Bryant® |
| CFM | 294.3-635.7 |
| CFM Heating | 294.3-635.7 |
| Color | White |
| Cooling Capacity | 8,870-19,400 |
| Cooling Rated Capacity (Btu/h) | 18000 |
| Country of Origin | CHN |
| Cycle/Hertz | 60 Hz |
| EER2 | 12.5-15.5 |
| Energy Star Rated | YES |
| Heating Capacity | 11,200-19,500 |
| Liquid Line Fitting Type | Flare |
| Liquid Line Size (OD) | 1/4″ |
| Metering Device | EEV – Electronic Expansion Valve |
| Mounting Type | Wall-Mount |
| Multi Zone | YES |
| OPT Code | 1P615AHAQ18XA3 |
| Phase | Single |
| Product Family | 615AHA |
| Prop 65 | YES |
| Refrigerant | R-454B |
| Remote Control Included | YES |
| SEER2 | 21.5 |
| Sound Level (dBA) | 19.5-45 |
| Suction Line Fitting Type | Flare |
| Suction Line Size (OD) | 1/2″ |
| Tier | Preferred™ |
| Tonnage | 1.5 |
| UPC | See Optical |
| Voltage | 208-230 VAC |
