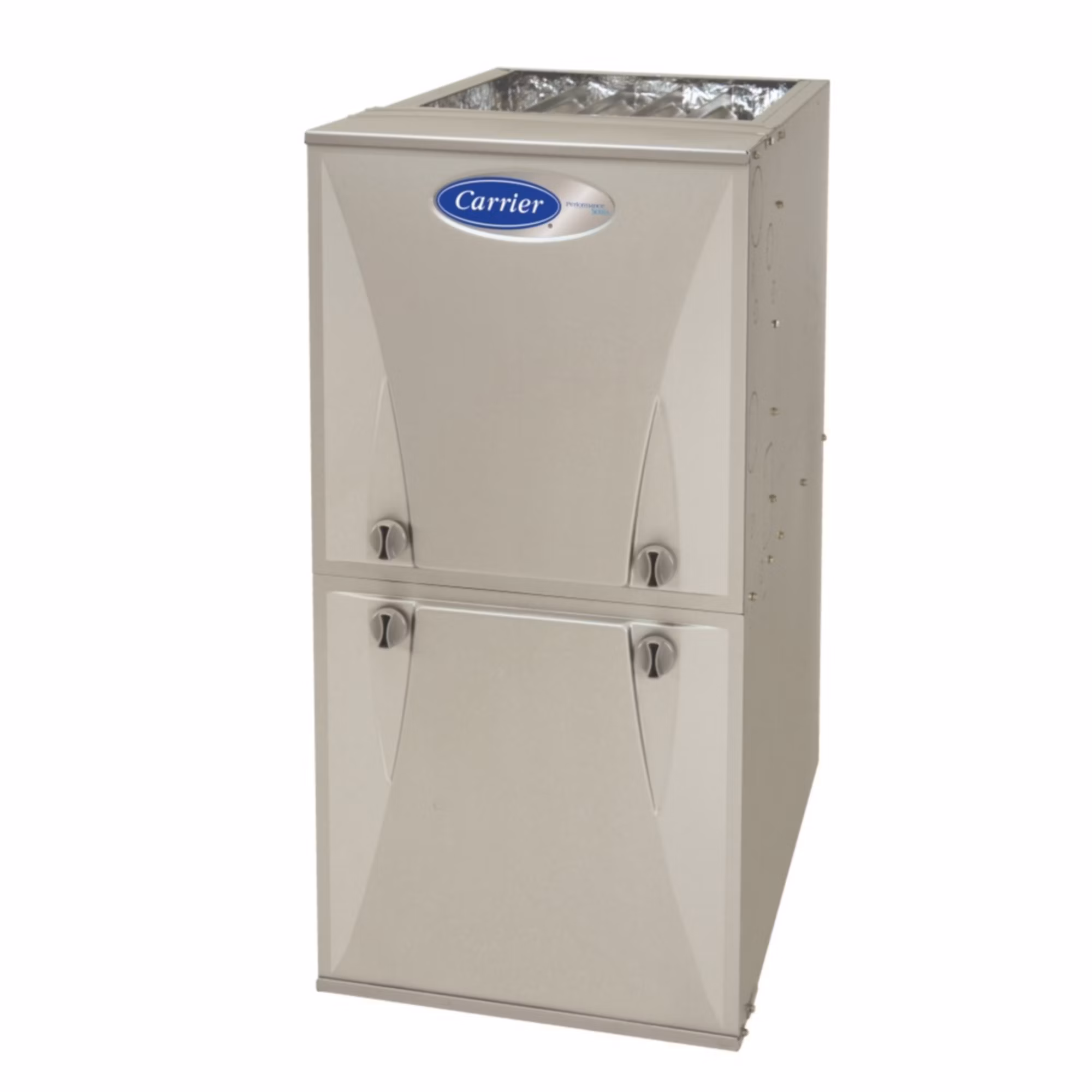

59TP6C100V21–22 Carrier Performance 96% AFUE 100000 BTUH 2-Stage, Variable 25-Speed, 4-Way – E:Mail: sales@walkair.us to confirm availability or for volume discounts
59TP6C100V21–22
59 = 90%+ Condensing / Gas Furnace
T = Two Stage / Heating Stages
P = Performance / Tier
6 = 96% / Min. AFUE/NOx
C = Major Series
100 = 100,000 BTU / Heating Input
V = Variable-Speed (VCT) PWM / Motor Type
21 = 21.0″ / Width
— = N/A
22 = 2200 CFM / Airflow
The 59TP6C Multipoise Variable 25-Speed Condensing Gas Furnace features the two-stage Performance™ System. The Comfort Heat® technology two-stage gas valve is at the heart of the comfort provided by this furnace, along with the variable-speed ECM blower motor, and two-speed inducer motor. With an Annual Fuel Utilization Efficiency (AFUE) up to 96.7% AFUE, the Performance™ Series two-stage gas furnace provides exceptional savings when compared to standard gas furnaces. This Performance Gas Furnace also features 4-way multipoise installation flexibility, and is available in nine model sizes. The 59TP6C can be vented for direct vent/two-pipe, ventilated combustion air, or single-pipe applications. All sizes are design certified in Canada. This furnace is not designed for use in recreation vehicles, manufactured (mobile) homes or out doors.
PERFORMANCE
- Variable 25-speed, constant-torque (VCT) ECM blower motor, two-speed inducer motor, and two-stage gas valve
- Fully-insulated casing including blower section
- Aluminized-steel primary heat exchanger
- Stainless-steel condensing secondary heat exchanger
- Silicon Nitride Power Heat™ Hot Surface Igniter
- Adjustable blower speed for heating, cooling, continuous fan, and dehumidification
- Comfort Heat Technology® feature intelligently stages heat and removes air stratification between rooms and within rooms
- Comfort Fan™ technology allows control of continuous fan speed from a compatible thermostat
INSTALLATION FLEXIBILITY
- 4-way multipoise design for upflow, downflow or horizontal installations, with unique vent elbow and optional throughthe-cabinet downflow venting capability
- On-board NFC antenna makes setup a tap away when using the Carrier service technician app
- Factory-configured ready for upflow applications
- Installation flexibility: sidewall or vertical vent
- Ideal height 35” (889 mm) cabinet: short enough for taller coils, but still allows enough room for service
- Direct-vent/sealed combustion, single-pipe venting or ventilated combustion air
APPLICATIONS
- HYBRID HEAT® Dual Fuel Compatible
- Convertible to propane with gas conversion accessory kit
- Convenient Air Purifier and Humidifier connections
- Twinning capable with accessory kit
- 5 ton sizes allow 15 Amp breaker with accessory (order separately)
- SmartEvap™ technology prevents condensate that remains on the coil after a dehumidification cycle from re-humidifying throughout the home
CERTIFICATIONS
- All sizes meet ENERGY STAR® Version 4.1 criteria for gas furnaces: 95.0%+ AFUE
- Cabinet air leakage less than 2.0% at 1.0 in. w.c. and cabinet air leakage less than 1.4% at 0.5 in. w.c. when tested in accordance with ASHRAE standard 193
- All sizes can be installed in air quality management districts with a 40 ng/J NOx emissions requirement
LIMITED WARRANTY *
- Default 5-year parts limited warranty
- Default 20-year heat exchanger limited warranty – 10-year parts and lifetime limited heat exchanger warranty with timely registration
* Equipment must be registered within 90 days of original installation, except in jurisdictions where warranty benefits cannot be conditioned on registration.
*Applies to original purchaser/homeowner and not available to subsequent oweners.See warranty certificate for complete details and restrictions, including warranty coverage of other applications.
| Attributes | |
|---|---|
| AFUE | 95-96.2 |
| Air Flow Direction | Multi-Position |
| BTU Input | 65,000-100,000 |
| BTU Output | 63,000-97,000 |
| Blower Motor HP | 1 |
| Blower Motor Speeds | Variable |
| Blower Motor Type | ECM (Electronically Commutated Motor) |
| Blower Wheel Diameter | 11″ |
| Blower Wheel Width | 10″ |
| Brand | Carrier® |
| CFM | 525-2,250 |
| CFM Heating | 1,245-1,730 |
| Cabinet Width | 21 |
| Color | Gray |
| Country of Origin | USA |
| Cycle/Hertz | 50/60 Hz |
| Energy Star Rated | Yes |
| FER Compliant | No |
| Fuel Type | Natural Gas |
| Full Load Amps | 11 |
| Furnace Type | Gas |
| Gas Connection Size | 1/2 |
| Gas Connection Type | NPT |
| Ignition Type | Hot Surface (HSI) |
| Includes Filter Rack | No |
| Maximum Overcurrent Protection (MOCP) | 20 |
| OPT Code | 1P59TP6C100V21–22 |
| Phase | Single |
| Product Family | 59TP6C |
| Prop 65 | Yes |
| Stages Heating | (2) Two |
| UPC | See Optical |
| Voltage | 115 VAC |
