Description

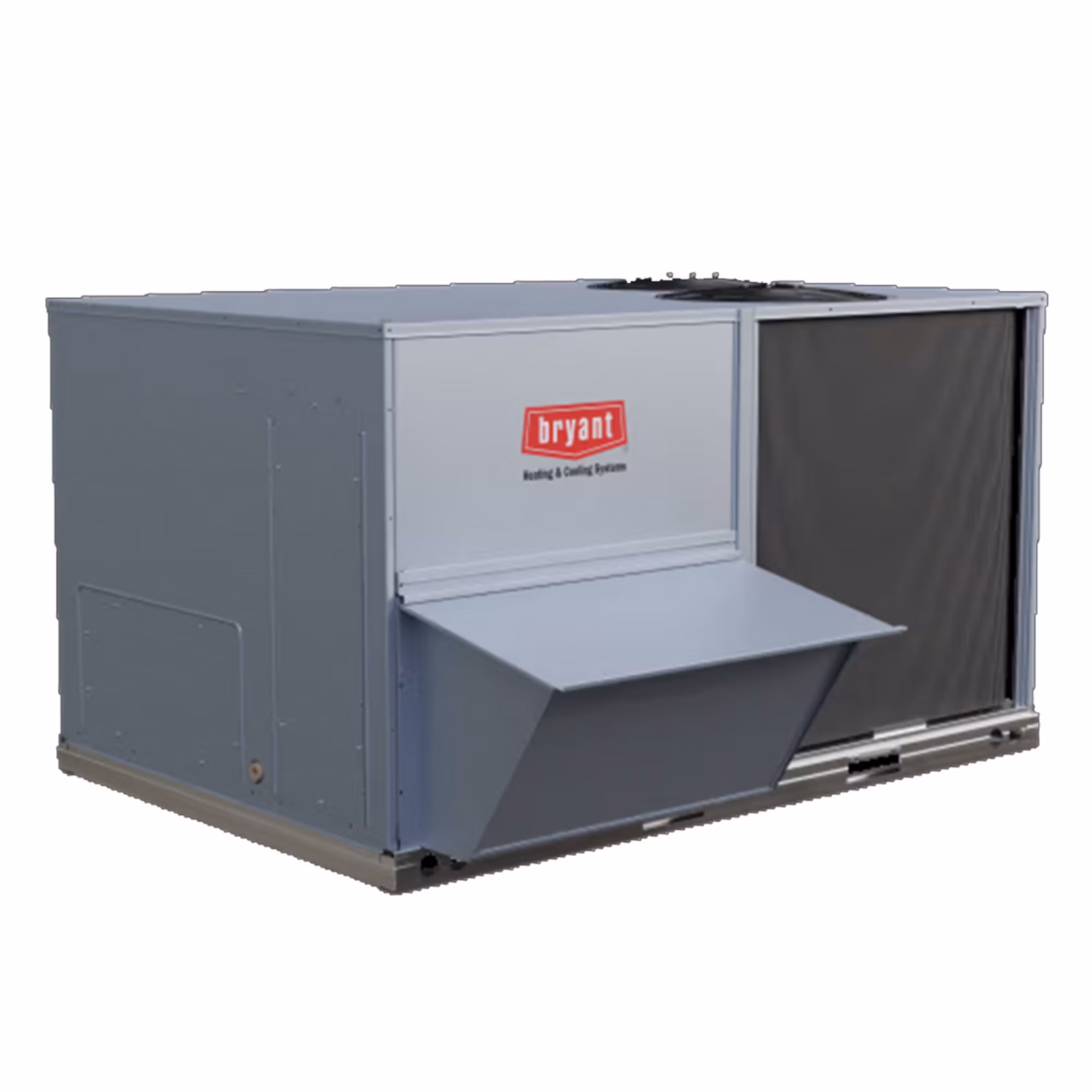

582LJ05A090A2A0AA Bryant Legacy – 4 Ton 90,000 Btuh Packaged Gas Heating/Electric Cooling Rooftop R-454B – E:Mail: sales@walkair.us to confirm availability or for volume discounts
582LJ05A090A2A0AA
582 = Gas Heat/Electric Cooling RTU Preferred™ Series / Unit Type
L = Puron® Advance (R-454B) Refrigerant with Axion™ Fan Technology / Model
J = 208/230-1-60 / Voltage
5 = 4.0 tons / Cooling Tons
A = One-Stage Cooling / Refrig. System/Gas Heat Options
090 = 90,000 / Heat Level Input (Btuh)
A = Al/Cu – Al/Cu / Coil Options (RTPF) (Outdoor – Indoor)
2 = Standard/Medium Static Motor – Vertical Supply / Axion – Vane Axial – Indoor Fan Motor and Airflow Options
A = None / Outdoor Air Option
0A = None / Factory Installed Option
A = Standard / Packaging and Control
Bryant’s Legacy™ Line rooftop units (RTUs) with Puron Advance™ and Axion™ Fan Technology offer an eco-friendly solution for a brighter future.
New major design features include:
- Environmentally balanced Puron Advance (R-454B) refrigerant, which delivers a 75% reduction in global wa
| Attributes | |
|---|---|
| Air Flow Direction | Horizontal / Vertical |
| Approvals | UL Listed |
| BTU Input | 90,000 |
| BTU Output | 73,000 |
| Blower Motor HP | 71/100 BHP |
| Blower Motor RPM | 219-2,190 |
| Blower Motor Speeds | 1 |
| Blower Motor Type | ECM (Electronically Commutated Motor) |
| Blower Wheel Diameter | 16 3/5″ |
| Brand | Bryant® |
| CFM | 1,500 |
| CFM Heating | 1,050-2,280 |
| Color | Gray |
| Compressor Type | Scroll |
| Condenser Coil Fins per Inch (FPI) | 18 |
| Condenser Coil Metering Device | Orifice |
| Condenser Fan Blade Diameter | 23 |
| Condenser Fan Motor Qty | 1 |
| Condenser Motor HP | 1/4 |
| Condenser Motor RPM | 1,100 |
| Condenser Motor Speeds | 1 |
| Condenser Motor Type | PSC (Permanent Split Capacitor) |
| Cooling Capacity | 48,000 |
| Cooling Rated Capacity (Btu/h) | 48000 |
| Country of Origin | MEX |
| Cycle/Hertz | 60 Hz |
| Drain Connection Size | 3/4″ |
| Drive Type | Direct |
| Energy Star Rated | NO |
| Evaporator Coil Fins per Inch (FPI) | 15 |
| Evaporator Coil Metering Device | Orifice |
| Fuel Type | Natural Gas or LP |
| Gas Connection Size | 1/2 |
| IEER | 15.5 |
| Locked Rotor Amps (LRA) | 126 |
| Maximum Overcurrent Protection (MOCP) | 60 |
| OPT Code | 1P582LJ05A090A2A0AA |
| Outdoor Air Filter Size (OA) | 20″ x 24″ x 1″ |
| Phase | Single |
| Product Family | 582L |
| Prop 65 | YES |
| Rated Load Amps (RLA) | 22.4 |
| Refrigerant | R-454B |
| Return Air Filter Size (RA) | (2) 16″ x 25″ x 2″ |
| Sound Level (dBA) | 79 |
| Stages Cooling | 1 |
| Stages Heating | 1 |
| Thermal Efficiency | 82% |
| Tier | Legacy™ |
| Tonnage | 4 |
| UPC | See Optical |
| Voltage | 208-230 VAC |
