Description

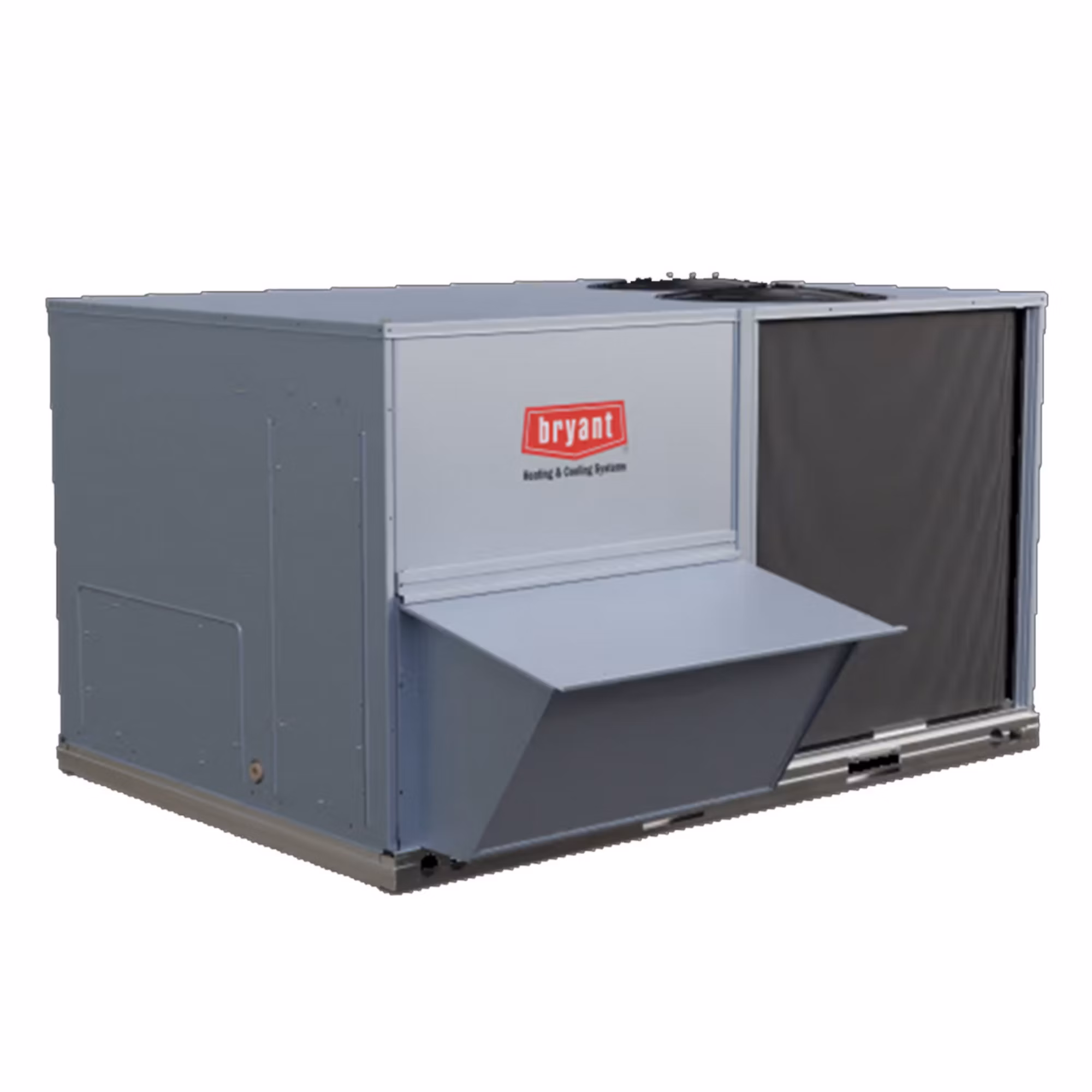

582LE12M224A3A0AA Bryant Legacy – 10 Ton 224,000 Btuh Packaged Gas Heating/Electric Cooling Rooftop R-454B – E:Mail: sales@walkair.us to confirm availability or for volume discounts
582LE12M224A3A0AA
582 = Gas Heat/Electric Cooling RTU Preferred™ Series / Unit Type
L = Puron® Advance (R-454B) Refrigerant with Axion™ Fan Technology / Model
E = 460-3-60 / Voltage
12 = 10 tons / Cooling Tons
M = Two-Stage Cooling, Single Circuit / Refrig. System/Gas Heat Options
224 = 224,000 / Heat Level Input (Btuh)
A = Al/Cu – Al/Cu / Coil Options (RTPF) (Outdoor – Indoor)
3 = High Static Motor / Axion – Vane Axial – Indoor Fan Motor and Airflow Options
A = None / Outdoor Air Option
0A = None / Factory Installed Option
A = Standard / Packaging and Control
Bryant’s Legacy™ Line rooftop units (RTUs) with Puron Advance™ and Axion™ Fan Technology offer an eco-friendly solution for a brighter future.
New major design features include:
- Environmentally balanced Puron Advance (R-454B) refrigerant, which delivers a 75% reduction in global warming pot
| Attributes | |
|---|---|
| Air Flow Direction | Horizontal / Vertical |
| Approvals | UL Listed |
| BTU Input | 180,000-224,000 |
| BTU Output | 146,000-181,000 |
| Blower Motor HP | 5 BHP |
| Blower Motor RPM | 250-2,200 |
| Blower Motor Speeds | 2 |
| Blower Motor Type | ECM (Electronically Commutated Motor) |
| Brand | Bryant® |
| CFM | 3,500 |
| CFM Heating | 2,580-5,600 |
| Color | Gray |
| Compressor Type | Scroll |
| Condenser Coil Fins per Inch (FPI) | 18 |
| Condenser Coil Metering Device | TXV/TEV – Thermostatic Expansion Valve |
| Condenser Fan Blade Diameter | 22 |
| Condenser Fan Motor Qty | 2 |
| Condenser Motor HP | 1/4 |
| Condenser Motor RPM | 1,100 |
| Condenser Motor Type | PSC (Permanent Split Capacitor) |
| Cooling Capacity | 118,000 |
| Cooling Rated Capacity (Btu/h) | 120000 |
| Country of Origin | MEX |
| Cycle/Hertz | 60 Hz |
| Drain Connection Size | 3/4″ |
| Drive Type | Direct |
| EER | 11 |
| Energy Star Rated | NO |
| Evaporator Coil Fins per Inch (FPI) | 15 |
| Evaporator Coil Metering Device | TXV/TEV – Thermostatic Expansion Valve |
| Fuel Type | Natural Gas or LP |
| Gas Connection Size | 3/4 |
| IEER | 15 |
| Locked Rotor Amps (LRA) | 58 |
| Maximum Overcurrent Protection (MOCP) | 35 |
| OPT Code | 1P582LE12M224A3A0AA |
| Outdoor Air Filter Size (OA) | 20″ x 24″ x 1″ |
| Phase | Three |
| Product Family | 582L |
| Prop 65 | YES |
| Rated Load Amps (RLA) | 8.3 |
| Refrigerant | R-454B |
| Return Air Filter Size (RA) | (4) 20″ x 20″ x 2″ |
| Sound Level (dBA) | 79 |
| Stages Cooling | 2 |
| Stages Heating | 2 |
| Thermal Efficiency | 81% |
| Tier | Legacy™ |
| Tonnage | 10 |
| UPC | See Optical |
| Voltage | 460 VAC |
