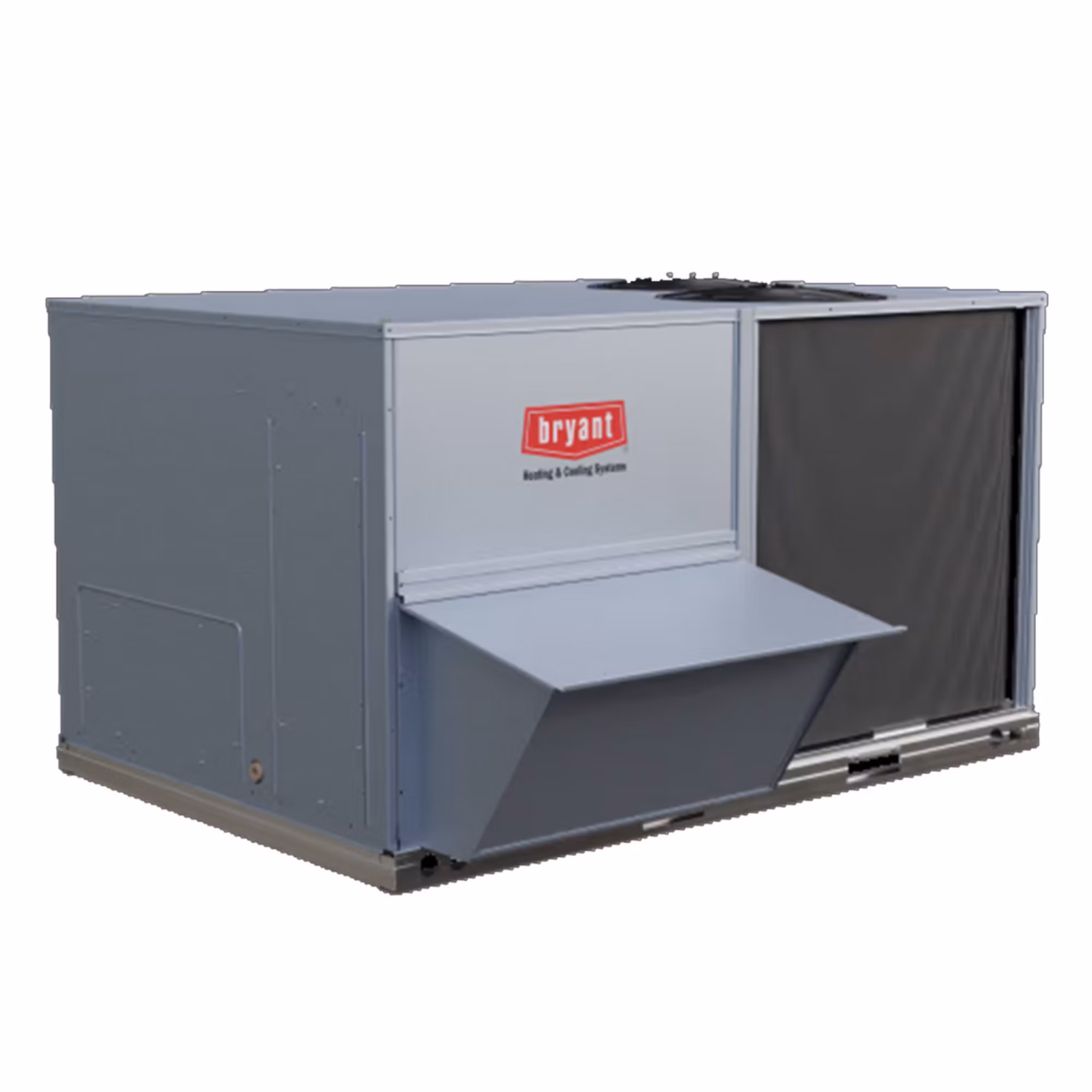

582LE08M180A2A0AA Bryant Legacy – 7.5 Ton 180,000 Btuh Packaged Gas Heating/Electric Cooling Rooftop Unit R-454B (460-3) – E:Mail: sales@walkair.us to confirm availability or for volume discounts
582LE08M180A2A0AA
582 = Gas Heat/Electric Cooling RTU Legacy™ Line / Unit Type
L = Puron Advance™ (R-454B) Refrigerant with Axion™ Fan Technology / Model
E = 460-3-60 / Voltage
08 = 7.5 tons / Cooling Tons
M = Two-Stage Cooling, Single Circuit / Refrig. System/Gas Heat Options
180 = 180,000 / Heat Level Input (Btuh)
A = Al/Cu – Al/Cu / Coil Options (RTPF) (Outdoor – Indoor)
2 = Standard/Medium Static Motor / Axion Fan – Vane Axial – Indoor Fan Motor and Airflow Options
A = None / Outdoor Air Options
0A = None / Factory Installed Options
A = Standard Electromechanical Controls / Controls
Bryant’s Legacy™ Line rooftop units (RTUs) with Puron Advance™ and Axion™ Fan Technology offer an environmentally responsible solution for a brighter future.
Bryant’s new 582/559L rooftops continue our legacy of progress with Puron Advance, our low global warming potential refriger
| Attributes | |
|---|---|
| Air Flow Direction | Horizontal / Vertical |
| Approvals | UL Listed |
| BTU Input | 120,000-180,000 |
| BTU Output | 98,000-148,000 |
| Blower Motor HP | 2 2/5 BHP |
| Blower Motor RPM | 250-2,000 |
| Blower Motor Speeds | 2 |
| Blower Motor Type | ECM (Electronically Commutated Motor) |
| Blower Wheel Diameter | 22″ |
| Brand | Bryant® |
| CFM | 2,650 |
| CFM Heating | 2,100-3,900 |
| Color | Gray |
| Compressor Type | Scroll |
| Condenser Coil Fins per Inch (FPI) | 18 |
| Condenser Coil Metering Device | TXV/TEV – Thermostatic Expansion Valve |
| Condenser Fan Blade Diameter | 22 |
| Condenser Fan Motor Qty | 2 |
| Condenser Motor HP | 1/4 |
| Condenser Motor RPM | 1,100 |
| Condenser Motor Speeds | 1 |
| Condenser Motor Type | PSC (Permanent Split Capacitor) |
| Cooling Capacity | 86,000 |
| Cooling Rated Capacity (Btu/h) | 90000 |
| Country of Origin | MEX |
| Cycle/Hertz | 60 Hz |
| Drain Connection Size | 3/4″ |
| Drive Type | Direct |
| EER | 11.2 |
| Energy Star Rated | NO |
| Evaporator Coil Fins per Inch (FPI) | 15 |
| Evaporator Coil Metering Device | TXV/TEV – Thermostatic Expansion Valve |
| Fuel Type | Natural Gas or LP |
| Gas Connection Size | 3/4″ |
| IEER | 15 |
| Locked Rotor Amps (LRA) | 49 |
| Maximum Overcurrent Protection (MOCP) | 25 |
| OPT Code | 1P582LE08M180A2A0AA |
| Outdoor Air Filter Size (OA) in Inches (W x H x D) | 20 x 24 x 1 |
| Phase | Three |
| Product Family | 582L |
| Prop 65 | YES |
| Rated Load Amps (RLA) | 6.4 |
| Refrigerant | R-454B |
| Return Air Filter Size (RA) in Inches (W x H x D) | (4) 16 x 20 x 2 |
| Sound Level (dBA) | 79 |
| Stages Cooling | 2 |
| Stages Heating | 2 |
| Thermal Efficiency | 82% |
| Tier | Legacy™ |
| Tonnage | 7.5 |
| UPC | See Optical |
| Voltage | 460 VAC |
