Description

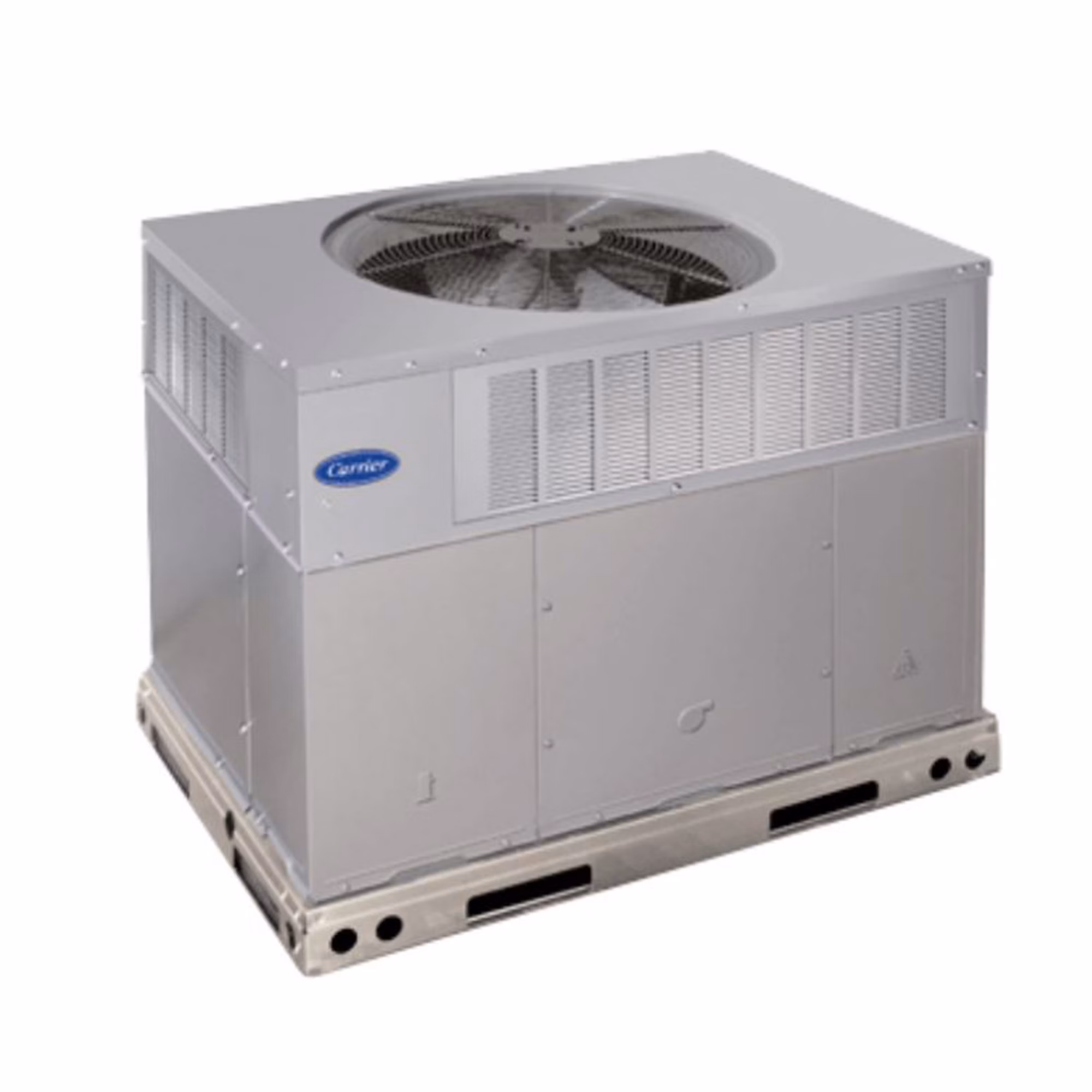

50VL-K60—3 Comfort 13.4 SEER2 Single-Packaged Air Conditioner System – E:Mail: sales@walkair.us to confirm availability or for volume discounts
Comfort? 13.4 SEER2 Single-Packaged Air Conditioner System
| Attributes | |
|---|---|
| Air Flow Direction | Convertible |
| Blower Motor HP | 1 |
| Blower Motor RPM | 1,040 |
| Blower Motor Type | ECM (Electronically Commutated Motor) |
| Blower Wheel Diameter | 11″ |
| Blower Wheel Width | 10″ |
| Brand | Carrier? |
| CFM | 1,750 |
| Color | Gray |
| Compressor Type | Scroll |
| Condenser Coil Fins per Inch (FPI) | 21 |
| Condenser Fan Blade Diameter | 26 |
| Condenser Fan CFM | 3500 |
| Condenser Fan Motor Qty | 1 |
| Condenser Motor HP | 1/5 |
| Condenser Motor RPM | 810 |
| Condenser Motor Speeds | 1 |
| Condenser Motor Type | PSC (Permanent Split Capacitor) |
| Cooling Capacity | 56,000 |
| Country of Origin | MEX |
| Cycle/Hertz | 60 Hz |
| Drain Connection Size | 3/4″ |
| EER2 | 11.05 |
| Energy Star Rated | NO |
| Evaporator Coil Fins per Inch (FPI) | 17 |
| Evaporator Coil Metering Device | TXV/TEV – Thermostatic Expansion Valve |
| Locked Rotor Amps (LRA) | 124.5 |
| Maximum Overcurrent Protection (MOCP) | 125 |
| OPT Code | 1P50VL-K60—3 |
| Phase | Single |
| Product Family | 50VL-K |
| Prop 65 | YES |
| Refrigerant | R-410A |
| SEER2 | 13.4 |
| Sound Level (dBA) | 76.6 |
| Stages Cooling | 1 |
| Tier | Comfort? |
| Tonnage | 5 |
| UPC | See Optical |
| Voltage | 208-230 VAC |
