Description

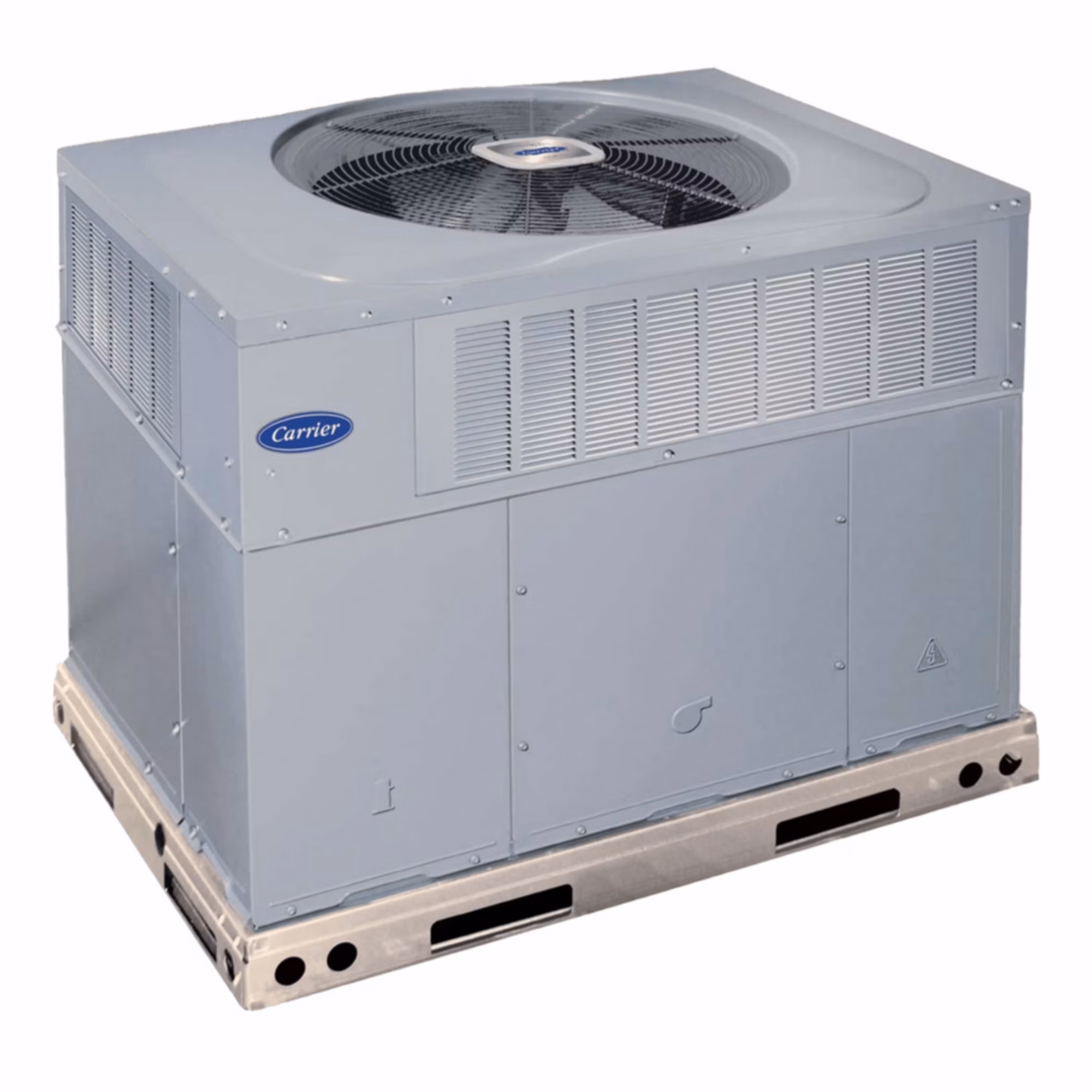

48NL-B601153 Carrier Comfort – 5 Ton 13.4 SEER2 115000 BTUH Residential Packaged Gas Heat & Electric Cooling Unit – E:Mail: sales@walkair.us to confirm availability or for volume discounts
48NL-B601153
48NL = Single Packaged Air Conditioner and Gas Furnace System / Type of Unit
– = Standard / Low NOx Indicator
B = Major Series
60 = 5 Tons / Nominal Cooling Capacity
115 = 115,000 / Nominal Heat Input Size (Btuh)
3 = 208/230-1-60 / Electrical Supply
Single-Packaged Products with Energy-Saving Features and R-454B Puron Advance™ refrigerant.
- 13.4 SEER2
- 11.05 EER2
- 81.0% AFUE
- ECM Motor-Standard
- Direct Spark Ignition
- Low Sound Levels
- Dehumidification Feature
- Dense Wire Condenser Coil Guard-Standard
- Cabinet air leakage of 2.0% or less at .5 in. W.C. when tested in accordance with ASHRAE standard 193.
- Refrigerant leak detection dissipation system for added safety
- Maximum allowed elevation is 10,000 ft (3,048m) above sea level
Features/Benefits
One-piece heating and cooling units with low sound levels, easy installation, low mainte
| Attributes | |
|---|---|
| Air Flow Direction | Convertible |
| BTU Input | 115,000 |
| BTU Output | 94,000 |
| Blower Motor HP | 1 |
| Blower Motor RPM | 1,040 |
| Blower Motor Speeds | 1 |
| Blower Motor Type | ECM (Electronically Commutated Motor) |
| Blower Wheel Diameter | 11″ |
| Blower Wheel Width | 10″ |
| Brand | Carrier® |
| CFM | 1,750 |
| CFM Heating | 1,750 |
| Color | Gray |
| Compressor Type | Scroll |
| Condenser Coil Fins per Inch (FPI) | 21 |
| Condenser Coil Metering Device | TXV/TEV – Thermostatic Expansion Valve |
| Condenser Fan Blade Diameter | 26 |
| Condenser Fan CFM | 3500 |
| Condenser Fan Motor Qty | 1 |
| Condenser Motor HP | 1/5 |
| Condenser Motor RPM | 810 |
| Condenser Motor Speeds | 1 |
| Condenser Motor Type | PSC (Permanent Split Capacitor) |
| Cooling Capacity | 60,000 |
| Country of Origin | MEX |
| Cycle/Hertz | 60 Hz |
| Drain Connection Size | 3/4″ |
| Drive Type | Direct |
| Energy Star Rated | NO |
| Evaporator Coil Fins per Inch (FPI) | 17 |
| Evaporator Coil Metering Device | TXV/TEV – Thermostatic Expansion Valve |
| Fuel Type | Natural Gas or LP |
| Gas Connection Size | 1/2″ |
| Locked Rotor Amps (LRA) | 148 |
| Maximum Overcurrent Protection (MOCP) | 50 |
| OPT Code | 1P48NL-B601153 |
| Phase | Single |
| Product Family | 48NL |
| Prop 65 | YES |
| Rated Load Amps (RLA) | 22.6 |
| Refrigerant | R-454B |
| Return Air Filter Size (RA) | One 24x16x1, One 24x18x1 |
| Sound Level (dBA) | 75 |
| Stages Cooling | 1 |
| Stages Heating | 1 |
| Tier | Comfort™ |
| Tonnage | 5 |
| UPC | See Optical |
| Voltage | 208-230 VAC |
