Description

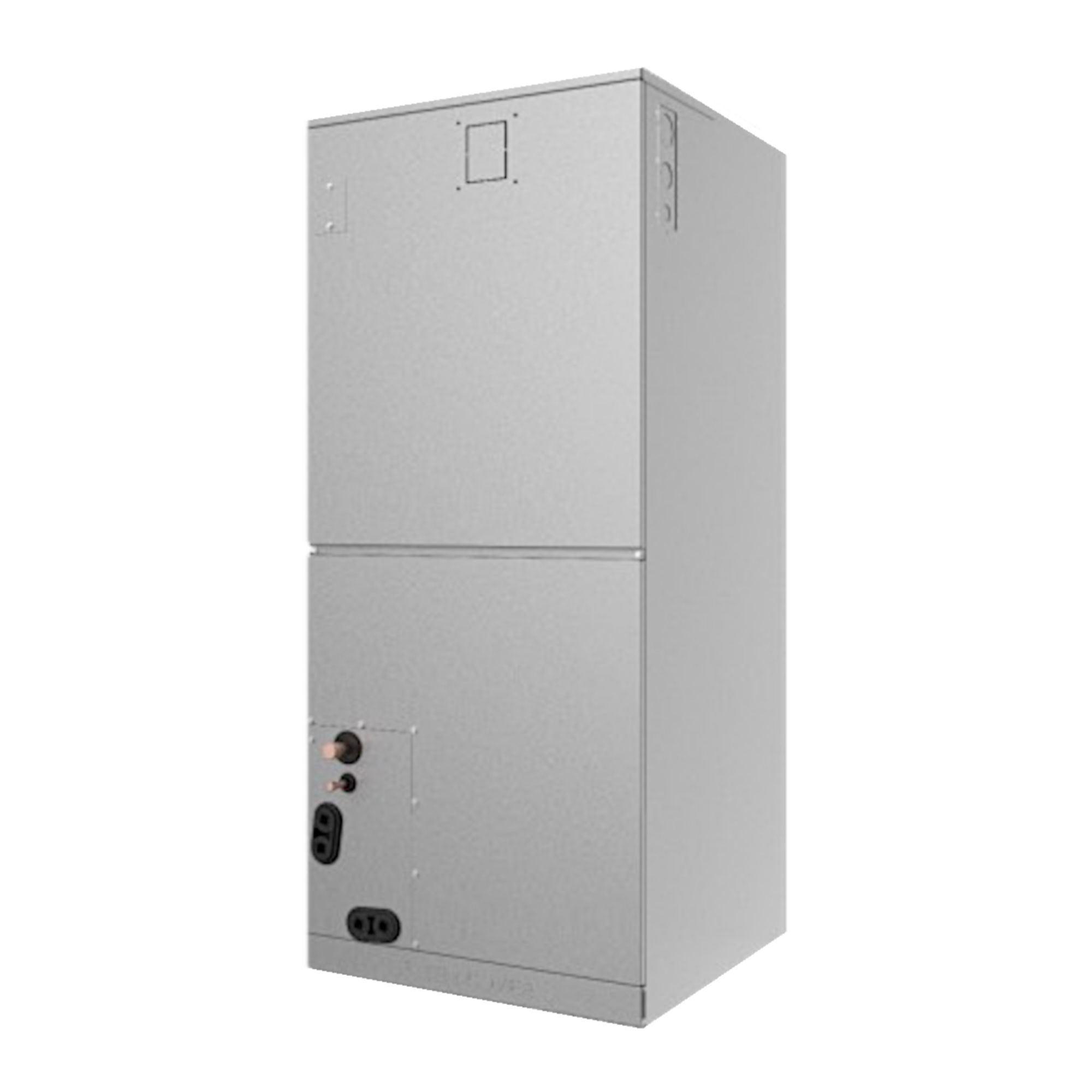

45MUAAQ18XX3 1.5 Ton Heat Pump Fan Coil Unit R-454B (208/230-1) – E:Mail: sales@walkair.us to confirm availability or for volume discounts
45MUAAQ18XX3
4= Indoor Unit / Product
5= Puron Advance R-454B / Refrigerant
MU= Model Type
A= A/H Air Handler / Indoor Type
A= Major Series
Q= Heat Pump / Unit Type
18= 18,000 / Nominal Capacity
X= # of Indoor Units
X= Variation
3= 208/230-1-60 / Electrical
INDOOR STANDARD FEATURES
- Modes: Cool, Heat, Dry, Fan, Auto
- Factory installed leak detection system
- Conventional Lineset
- Dual Voltage (115V/230V)
- Constant Air Motor/Blower
- Quiet indoor operation
- Anti-corrosive fin coating
| Attributes | |
|---|---|
| Air Flow Direction | Multi-Position |
| Approvals | ETL Listed; UL Listed |
| Blower Motor HP | 1/3 |
| Blower Motor RPM | 550 |
| Blower Motor Speeds | 3 (Three) |
| Blower Motor Type | ECM (Electronically Commutated Motor) |
| Brand | Bryant, Carrier |
| CFM | 488.54-618.03 |
| Cabinet Width | 21 |
| Color | Gray |
| Cooling Capacity | 18,000 |
| Cooling Rated Capacity (Btu/h) | 18000 |
| Country of Origin | CHN |
| Cycle/Hertz | 60 Hz |
| Drain Connection Size | 3/4″ |
| Electric Heat Range [kW] | 5-10 |
| Energy Star Rated | Yes |
| Evaporator Coil Fins per Inch (FPI) | 20 |
| Filter Size | 16″ x 20″ x 1 |
| Heating Capacity | 6,000-22,000 |
| Includes Filter Rack | Yes |
| Liquid Line Fitting Type | Flare |
| Liquid Line Size (OD) | 3/8″ |
| Maximum Overcurrent Protection (MOCP) | 15 |
| Metering Device | EEV – Electronic Expansion Valve |
| OPT Code | 1P45MUAAQ18XX3 |
| Phase | Single |
| Product Family | 45MUAA |
| Prop 65 | Yes |
| Refrigerant | R-454B |
| Suction Line Fitting Type | Flare |
| Suction Line Size (OD) | 3/4″ |
| Tonnage | 1.5 |
| Voltage | 115/208-230 VAC |
