Description

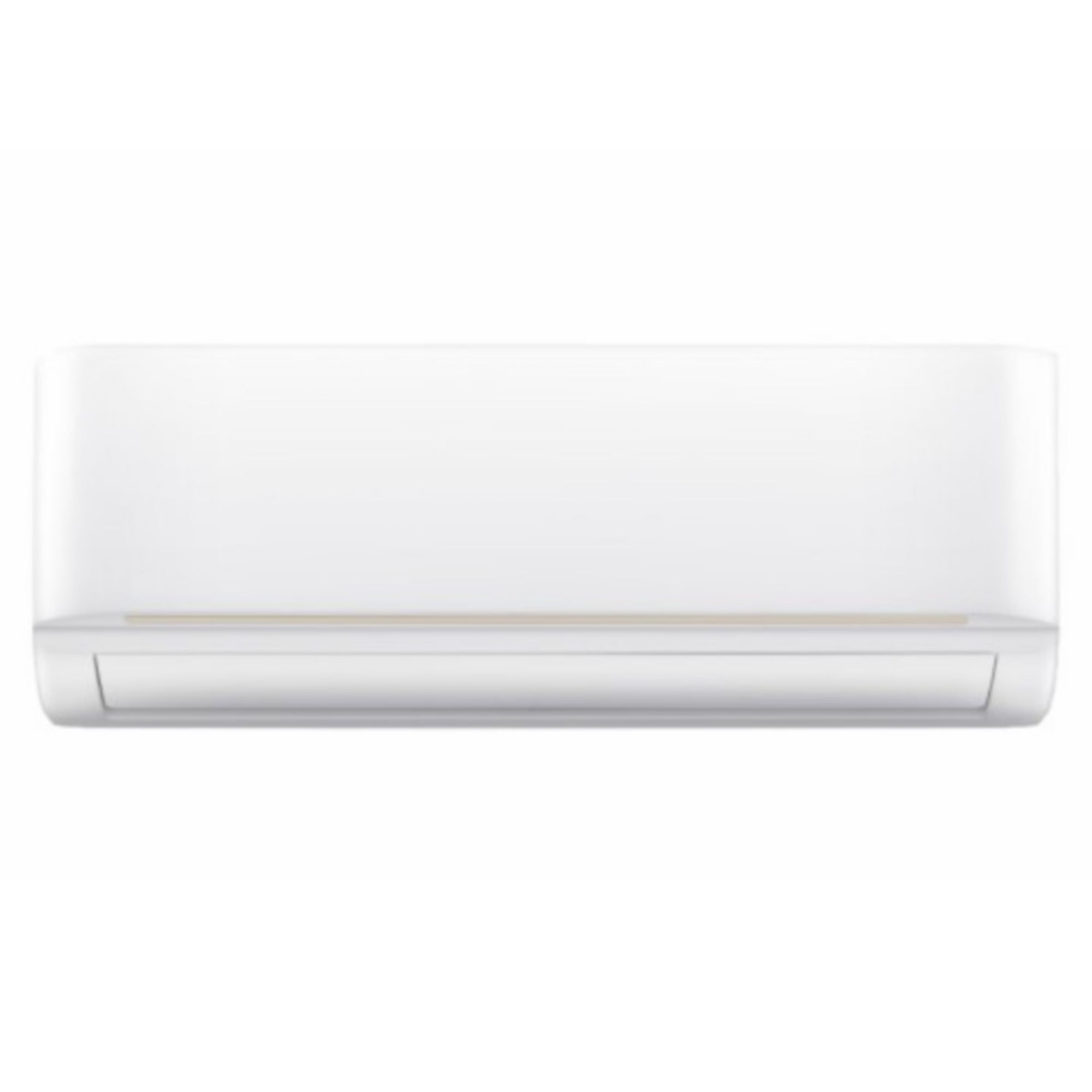

45MHHAQ18XC3 Ductless 18000 Btuh High Wall Indoor Heat Pump Unit (less Sensor) R-454B (208/230-1) – E:Mail: sales@walkair.us to confirm availability or for volume discounts
45MHHAQ18XC3
4 = Indoor Unit / Product
5 = Puron Advance (R-454B) / Refrigerant
MH = Model Type
H = Air Handler / Indoor Type
A = Major Series
Q = Heat Pump / Unit Type
18 = 18000 / Nominal Capacity
X = 0 / # of Indoor Units
C = Variation
3 = 208/230-1-60
FEATURES & BENEFITS
- Sizes: 09 / 12 / 18 / 24 / 30 / 36
- Available in 115V and 208/230V
- Auto-restart function
- Turbo Mode
- Four fan speeds
- Sleep Mode
- Follow Me (senses temperature at handheld remote)
- Heating Setback (46° F Heating Mode)
- Up-down louver control (fixed or swing)
- Improved serviceability with easy access to fan and electrical connections
- Quiet indoor operation, as low as 18.5 decibels1
- Anticorrosive pre-coated fins
| Attributes | |
|---|---|
| Blower Motor HP | 1/30 |
| Blower Motor RPM | 1,200 |
| Blower Motor Speeds | 4 |
| Blower Motor Type | ECM (Electronically Commutated Motor) |
| Blower Motor Watts | 70 |
| Blower Wheel Diameter | 3 9/10 |
| Blower Wheel Width | 29 4/5 |
| Brand | Carrier®, Bryant®, Payne® |
| CFM | 271-400 |
| CFM Heating | 270.7-400.2 |
| COP | 2.3 |
| Color | White |
| Cooling Capacity | 18,600 |
| Cooling Rated Capacity (Btu/h) | 18000 |
| Country of Origin | CHN |
| Cycle/Hertz | 60 Hz |
| Drain Connection Size | 5/8″ |
| EER2 | 12.5 |
| Energy Star Rated | YES |
| Evaporator Coil Fins per Inch (FPI) | 20 |
| HSPF | 11 |
| HSPF2 | 10 |
| Heating Capacity | 19,200-19,200 |
| Liquid Line Fitting Type | Flare |
| Liquid Line Size (OD) | 1/4″ |
| Metering Device | EEV – Electronic Expansion Valve |
| Mounting Type | Wall-Mount |
| Multi Zone | NO |
| Number of HVAC Zones | 1 |
| OPT Code | 1P45MHHAQ18XC3 |
| Phase | Single |
| Product Family | 45MHHAQ |
| Prop 65 | YES |
| Refrigerant | R-454B |
| Remote Control Included | YES |
| SEER2 | 23-24 |
| Sound Level (dBA) | 19-45 |
| Stages Cooling | Variable |
| Stages Heating | Variable |
| Suction Line Fitting Type | Flare |
| Suction Line Size (OD) | 1/2″ |
| Tier | Comfort™ |
| Tonnage | 1.5 |
| Voltage | 208-230 VAC |
